PD-2515

MEAN WELL
AC-DC (DC-DC), 25Вт, Uвх=85-264VAC (120-370VDC), два выхода +15В/1.0А, -15В/1.0А, изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 107х61х30 мм, 0...+50°С Производитель: MEAN WELL
развернуть ▼ свернуть ▲
Фотография серии PD-25

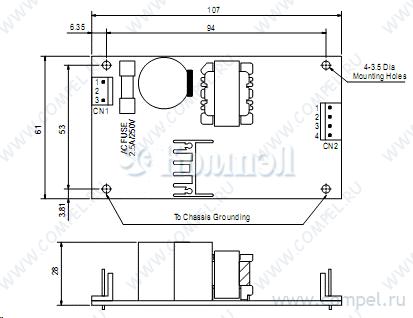

Чертеж серии PD-25



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 107×61×28 мм
Рабочая температура
Примечание Малый ток (< 0,5 мА) утечки на землю
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
PD-25 25W Dual Output Switching Power Supply ■ Features : series User’s Manual Universal AC input / Full range Low leakage current<0.5mA Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 100KHz Low cost High reliability 2 years warranty SPECIFICATION MODEL OUTPUT INPUT PROTECTION PD-25A PD-2505 BS EN/EN62368-1 IEC62368-1 TPTC004 PD-2512 PD-2515 CH2 CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2 DC VOLTAGE 5V 12V 5V 24V 5V -5V 12V -12V 15V -15V RATED CURRENT 2.1A 1.2A 1.2A 0.8A 2.5A 2.5A 1A 1A 0.8A 0.8A CURRENT RANGE 0.2 ~ 2.5A 0.1 ~ 1.5A 0.2 ~ 2A 0.1 ~ 1A 0.1 ~ 3A 0.1 ~ 2.5A 0.1 ~ 1.2A 0.1 ~ 1.2A 0.1 ~ 1A 0.1 ~ 1A RATED POWER 24.9W 25.2W 25W 24W 24W RIPPLE & NOISE (max.) Note.2 50mVp-p 150mVp-p 50mVp-p 200mVp-p 50mVp-p 50mVp-p 50mVp-p 50mVp-p 50mVp-p 50mVp-p VOLTAGE TOLERANCE Note.3 ±2.0% ±6.0% ±2.0% ±6.0% ±6.0% ±6.0% ±4.0% ±4.0% ±4.0% ±4.0% LINE REGULATION ±0.5% ±2.0% ±0.5% ±2.0% ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% LOAD REGULATION ±1.0% ±4.0% ±1.0% ±4.0% ±4.0% ±4.0% ±3.0% ±3.0% ±3.0% ±3.0% SETUP, RISE TIME 250ms, 50ms/230VAC HOLD UP TIME (Typ.) 100ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 71% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 0.65A/115VAC 250ms, 30ms/115VAC at full load 16ms/115VAC at full load 120 ~ 370VDC 77% 73% 74% COLD START 32A <0.5mA / 240VAC OVERLOAD Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed OVER VOLTAGE 5.75 ~ 6.75V 13.8 ~ 16.2V 5.75 ~ 6.75V 27.6 ~ 32.4V 5.75 ~ 6.75V -5.75 ~ -6.75V 13.8 ~ 16.2V -13.8 ~ -16.2V 17.3 ~ 20.3V -17.3 ~ -20.3V Protection type : Shut off o/p voltage, clamping by zener diode OVER TEMPERATURE Shut down o/p voltage, re-power on to recover WORKING TEMP. -10 ~ +60℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING 75% 0.4A/230VAC LEAKAGE CURRENT SAFETY STANDARDS NOTE PD-25B www. tuv.com ID 2000000000 UL62368-1 CH1 SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC OTHERS GB4943.1 OUTPUT NUMBER WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION (Note 4) Bauar t gepruft Sicherheit egel ma ge od o s be wac g (for PD-25A only) -20 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) ON CH1 output 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1(for PD-25A only ) approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1 Compliance to BS EN/EN61000-4-2,3,4,5, light industry level, criteria A, EAC TP TC 020 507.9Khrs min. MIL-HDBK-217F (25℃) 107*61*28mm (L*W*H) 0.15Kg; 96pcs/15.9Kg/1.2CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. Heat Sink HS1,HS2,HS3 can not be shorted. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PD-25-SPEC 2021-09-15 PDF
Документация на PD-25B

PD-25-20210915.cdr

Дата модификации: 21.10.2021

Размер: 105.6 Кб

2 стр.

PD-25 25W Dual Output Switching Power Supply series Features : Universal AC input / Full range Low leakage current<0.5mA Protections:Short circuit/Over load/Over voltage/Over temperature Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 100KHz Low cost High reliability 2 years warranty SPECIFICATION MODEL OUTPUT INPUT PD-25A PD-2512 PD-2515 CH2 CH1 CH2 CH1 CH2 CH1 CH2 CH1 DC VOLTAGE 5V 12V 5V 24V 5V -5V 12V -12V 15V -15V RATED CURRENT 2.1A 1.2A 1.2A 0.8A 2.5A 2.5A 1A 1A 0.8A 0.8A CURRENT RANGE 0.2 ~ 2.5A 0.1 ~ 1.5A 0.2 ~ 2A 0.1 ~ 1A 0.1 ~ 3A 0.1 ~ 2.5A 0.1 ~ 1.2A 0.1 ~ 1.2A 0.1 ~ 1A 0.1 ~ 1A RATED POWER 25W 25.2W 150mVp-p 25W 24W 50mVp-p 50mVp-p 50mVp-p 50mVp-p 50mVp-p 50mVp-p 2.0% 6.0% 2.0% 6.0% 6.0% 6.0% 4.0% 4.0% 4.0% 4.0% LINE REGULATION 0.5% 2.0% 0.5% 2.0% 1.0% 1.0% 0.5% 0.5% 0.5% 0.5% LOAD REGULATION 1.0% 4.0% 1.0% 4.0% 4.0% 4.0% 3.0% 3.0% 3.0% 3.0% SETUP, RISE TIME 250ms, 50ms/230VAC HOLD TIME (Typ.) 100ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 71% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 0.65A/115VAC 200mVp-p 24W CH2 VOLTAGE TOLERANCE Note.3 RIPPLE & NOISE (max.) Note.2 50mVp-p 50mVp-p 250ms, 30ms/115VAC at full load 16ms/115VAC at full load 120 ~ 370VDC 77% 73% 74% COLD START 32A <0.5mA / 240VAC OVER LOAD Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMI CONDUCTION & RADIATION EMC (Note 4) HARMONIC CURRENT 5.75 ~ 6.75V 13.8 ~ 16.2V 5.75 ~ 6.75V 27.6 ~ 32.4V 5.75 ~ 6.75V -5.75 ~ -6.75V 13.8 ~ 16.2V -13.8 ~ -16.2V 17.3 ~ 20.3V -17.3 ~ -20.3V Protection type : Shut down o/p voltage, re-power on to recover Tj 135 typically (U1) Detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down -10 ~ +60 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 ) ON CH1 output 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC Compliance to EN55022 (CISPR22) Class B Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5, Light industry level, criteria A MTBF 507.9Khrs min. MIL-HDBK-217F (25 107*61*28mm (L*W*H) 0.15Kg; 96pcs/15.9Kg/1.3CUFT DIMENSION PACKING 75% 0.4A/230VAC LEAKAGE CURRENT OVER TEMPERATURE NOTE PD-2505 CH1 PROTECTION OVER VOLTAGE OTHERS PD-25B OUTPUT NUMBER ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:PD-25-SPEC 2005-10-03 PDF
Документация на серию PD-25

PD-25.cdr

Дата модификации: 23.11.2005

Размер: 414.7 Кб

2 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
