1210GA221JAT1A

AVX Co.
Конденсатор керамический 2000 В, 220 пФ ±5%, C0G(NP0), 1210, -55...125 °C
развернуть ▼ свернуть ▲

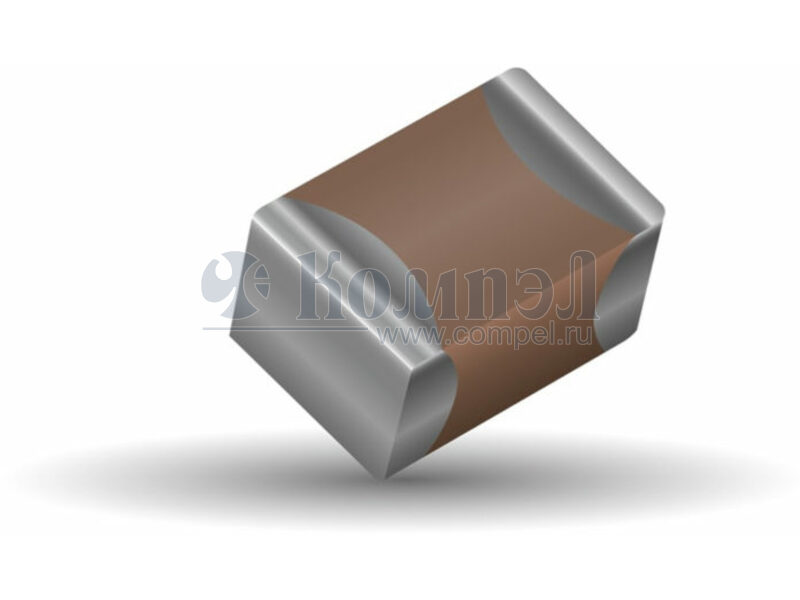

Внешний вид семейства MLCC_AVX
Внешний вид семейства MLCC_AVX



Технические характеристики

показать свернуть
Номинальное постоянное напряжение
Номинальная ёмкость
Допуск по ёмкости
Тип диэлектрика
Способ монтажа
Рабочая температура
  Примечания: Ceramic Capacitor, Multilayer, Ceramic, 2000V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1210
