SF-0603F100-2

Bourns
SINGLE FUSE
развернуть ▼ свернуть ▲

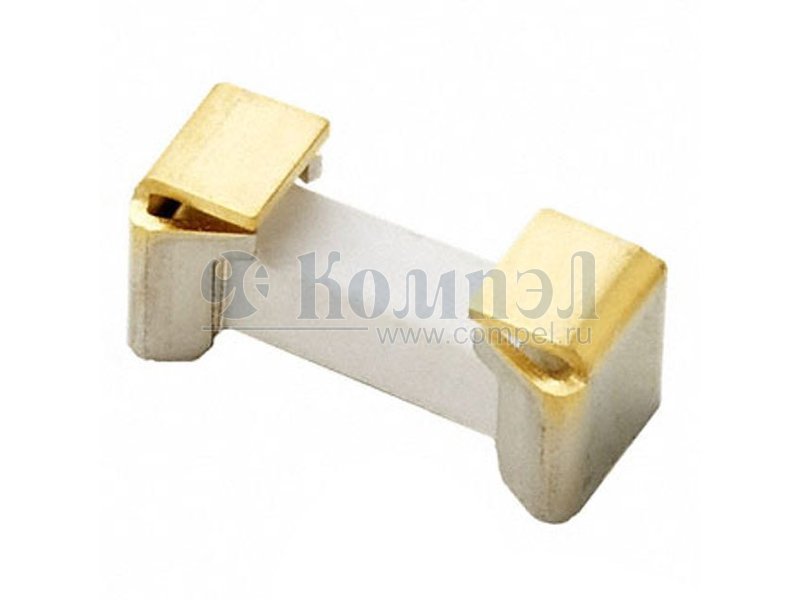

Внешний вид серии SF-0603SP

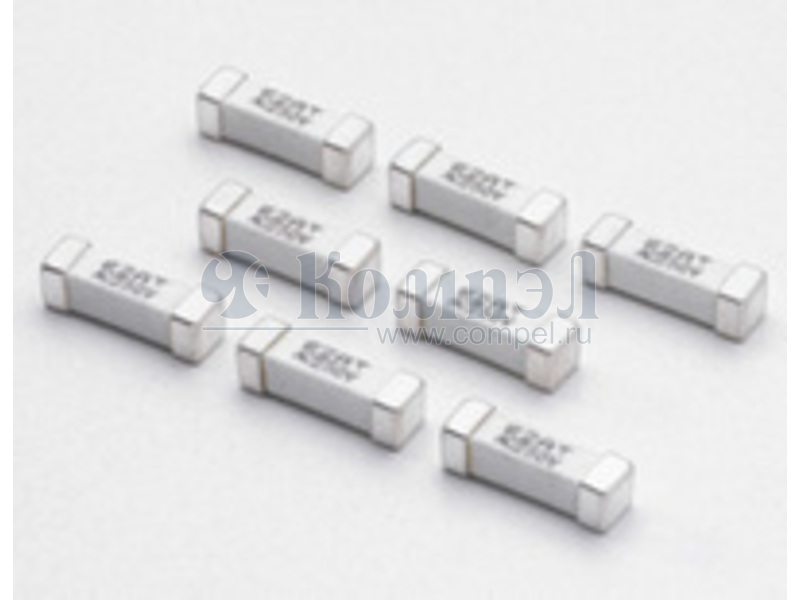

Внешний вид семейства SinglFuse



Технические характеристики

показать свернуть
Номинальный ток
Напряжение DC
Класс быстродействия
Тип монтажа
Отключающая способность AC
Особенности Board Mount (Cartridge Style Excluded)
Размер ø1.6×0.45 мм
Примечания FUSE BOARD MOUNT 1A 32VDC 0603
Рабочая температура
Одобрение
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 24

показать свернуть
Тип Наименование Корпус Упаковка i Ток U AC U DC Класс Монтаж I dist. AC I dist. DC Особенности Примечания T раб Одобрение Карточка
товара
A- SF-0402FP100-2 (BOURNS)

SMD040210X05MM — — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 1A 32VDC 0402
A- SF-1206SP100-2 (BOURNS)

SMD120632X16MM — — Board Mount (Cartridge Style Excluded)
A- 0154001.DR (LTL)

— в ленте 1500 шт — — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 1A 125VAC/VDC 2SMD
A- 0154001.DRT (LTL)

— в ленте 1500 шт Предохранитель плавкий - — — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 1A 125VAC/VDC 2SMD
A- 0160001.MR (LTL)

— в ленте 1000 шт Предохранитель плавкий - Ток: 1 А; U AC: 250 В; Класс: Slow; Монтаж: 2-SMD; Примечания:... — — — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 1A 250VAC 2SMD
A- 0443001.DR (LTL)

— в ленте 1500 шт — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 1A 250VAC 2SMD
A- 0451001.MRL (LTL)

— в ленте 1000 шт Предохранитель плавкий - — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 1A 125VAC/VDC 2SMD
A- 0452001.MRL (LTL)

— в ленте 1000 шт Предохранитель плавкий - — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 1A 125VAC/VDC 2SMD
A- 0458001.DR (LTL)

SMD120632X16MM 1500 шт Предохранитель плавкий - Ток: 1 А; U AC: 48 В; U DC: 75 В; Класс: Fast; Монтаж: 1206; П... — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 1A 48VAC 75VDC 1206
A- 0466001.NR (LTL)

SMD120632X16MM в ленте 5000 шт Предохранитель плавкий - Ток: 1 А; U AC: 63 В; U DC: 63 В; Класс: Fast; Монтаж: 1206; П... — Board Mount (Cartridge Style Excluded) FUSE BOARD MNT 1A 63VAC/VDC 1206
A- 0468001.NRHF (LTL)

SMD120632X16MM в ленте 5000 шт Предохранитель плавкий - Ток: 1 А; U AC: 63 В; U DC: 63 В; Класс: Slow; Монтаж: 1206; П... — Board Mount (Cartridge Style Excluded) FUSE BOARD MNT 1A 63VAC/VDC 1206
A- SF-1206S100-2 (BOURNS)

SMD120632X16MM 1 шт предохранитель плавкий - Ток: 1 А; U DC: 63 В; Класс: Slow; Монтаж: SMD, 1206; 3.1x1.55... — — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 1A 63VDC 1206
A- SF-0603S100M-2 (BOURNS)

SMD060316X08MM 10 шт — — Board Mount (Cartridge Style Excluded) 0603 SMD SLOW-BLOW MULTILAYER 1.
A- SF-1206SP100M-2 (BOURNS)

SMD120632X16MM 1 шт

 — — Board Mount (Cartridge Style Excluded) —
A- SF-0402FP100F-2 (BOURNS)

SMD040210X05MM — — Board Mount (Cartridge Style Excluded) —
A- SF-0402S100-2 (BOURNS)

SMD040210X05MM предохранитель плавкий - Ток: 1 А; U DC: 24 В; Класс: Slow; Монтаж: SMD, 0402; 1x0.52x0... — — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 1A 24VDC 0402
A- SF-0402S100M-2 (BOURNS)

SMD040210X05MM — — Board Mount (Cartridge Style Excluded) 0402 SMD SLOW BLOW MULTILAYER 1.
A- SF-0603FP100-2 (BOURNS)

SMD060316X08MM — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 1A 32VDC 0603
A- SF-0603FP100F-2 (BOURNS)

SMD060316X08MM

 — Board Mount (Cartridge Style Excluded) —
A- SF-0603FP100M-2 (BOURNS)

SMD060316X08MM

 — — Board Mount (Cartridge Style Excluded) —
A- SF-2410FP100W-2 (BOURNS)

—

 — Board Mount (Cartridge Style Excluded) —
A- SF-0603HI100M-2 (BOURNS)

SMD060316X08MM

 — — — Board Mount (Cartridge Style Excluded) —
A- SF-2410SP100W-2 (BOURNS)

—

 — Board Mount (Cartridge Style Excluded) —
A- SF-3812TL100T-2 (BOURNS)

—

 — — Electric Fuse, Time Lag Blow, 1A, 250VAC, 50A (IR), Surface Mount, 3812 —

Файлы 1

показать свернуть
PL IA N T SinglFuse™ SF-0603F Series Features ■ Surface mount packaging for automated *R oH S CO M ■ Single blow fuse for overcurrent ■ ■ ■ ■ ■ protection 1608 (EIA 0603) miniature footprint Fast-acting fuse UL listed RoHS compliant* and halogen free** Thin film chip fuse assembly SF-0603F Series - Fast Acting Surface Mount Fuses Electrical Characteristics Model Rated Current (Amps) Resistance (mΩ) Typ.*** Rated Voltage Breaking Capacity Typical I2t (A2s) SF-0603F050 0.50 250 DC 50 V DC 50 V 50 A 0.005 SF-0603F063 SF-0603F080 SF-0603F100 SF-0603F125 SF-0603F150 SF-0603F160 SF-0603F200 SF-0603F250 SF-0603F300 SF-0603F315 SF-0603F400 0.63 0.80 1.00 1.25 1.50 1.60 2.00 2.50 3.00 3.15 4.00 173 115 88 63 45 42 33 24 21 19 15 SF-0603F500 5.00 Fusing Time Open within 1 min. at 200 % rated current 12 DC 32 V DC 32 V 50 A DC 24 V DC 24 V 50 A DC 32 V DC 32 V 50 A 0.007 0.014 0.016 0.027 0.037 0.041 0.044 0.055 0.082 0.089 0.239 0.433 ***Resistance value was measured with less than 10 % of rated current. Reliability Testing Parameter Requirement Test Method Carrying Capacity ..................................... No fusing ....................................................Rated current, 4 hours Fusing Time .............................................. Within 1 minute ..........................................200 % of its rated current Interrupting Ability ..................................... No mechanical damages ...........................After the fuse is interrupted, rated voltage applied for 30 seconds again Bending Test ............................................. No mechanical damages ...........................Distance between holding points: 90 mm, Bending: 3 mm,1time, 30 seconds Resistance to Solder Heat ........................ ±20 % .........................................................260 °C ±5 °C,10 seconds ±1 second Solderability .............................................. 95 % coverage minimum ...........................235 °C ±5 °C, 2 ±0.5 second 245 °C ±5 °C, 2 ±0.5 second (lead free) Temperature Rise ..................................... <75 ° ..........................................................100 % of its rated current, measure of surface temperature Resistance to Dry Heat............................. ±20 % .........................................................105 °C ±5 °C,1000 hours Resistance to Solvent ............................... No evident damage on protective ..............23 °C ±5 °C of isopropyl alcohol, 90 seconds coating and marking Residual Resistance ................................. 10k W or more ...........................................Measure DC resistance after fusing Thermal Shock ......................................... DR < 10 % .................................................-20 °C / +25 °C /+125 °C /+25 °C, 10 cycles Typical Part Marking How to Order Represents total content. Layout may vary. SF - 0603 F 050 - 2 SinglFuse™ Product Designator SMD Footprint 1608 (EIA 0603) size RATING CURRENT (A) F = 0.50 S = 2.00 I = 0.63 T = 2.50 K = 0.80 3 = 3.00 L = 1.00 U = 3.15 M = 1.25 W = 4.00 P = 1.50 Y = 5.00 N = 1.60 Fuse Blow Type F = Fast acting S = Slow blow Rated Current 050-500 (500 mA - 5.00 A) Packaging Type - 2 = Tape & Reel (5,000 pcs./reel) Asia-Pacific: Tel: +886-2 2562-4117 Fax: +886-2 2562-4116 Europe: Tel: +41-41 768 5555 Fax: +41-41 768 5510 The Americas: Tel: +1-951 781-5500 Fax: +1-951 781-5700 www.bourns.com * RoHS Directive 2002/95/EC Jan 27 2003 including Annex. ** Bourns is using the definition that appears to be the prevalent definition used as the industry standard at this time. The Bourns definition of “halogen-free” is: Bromine (Br) content: ≤ 900 ppm; Chlorine (Cl) content: ≤ 900 ppm; Total Br + Cl content: ≤1500 ppm. “SinglFuse” is a trademark of Bourns, Inc. Specifications are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their specific applications. PDF
Документация на серию SF-0603F

Bourns® SinglFuse™ Thin Film Chip Fuses SF-0603F Series Fast Acting Surface Mount Fuses

Дата модификации: 15.03.2013

Размер: 361 Кб

4 стр.
