MIPAG1XX001BAAAX

Honeywell
MIP SERIES 32354483 Issue A Heavy Duty, Media-Isolated Pressure Transducers 1 bar to 60 bar | 15 psi to 870 psi DESCRIPTION DIFFERENTIATION The MIP Series offers a heavy duty, media-isolated pressure transducer in a compact, stainless steel construction for use with a wide range of media including aggressive fluids and water. The MIP Series provides a cost-competitive solution for wide-ra...
развернуть ▼ свернуть ▲

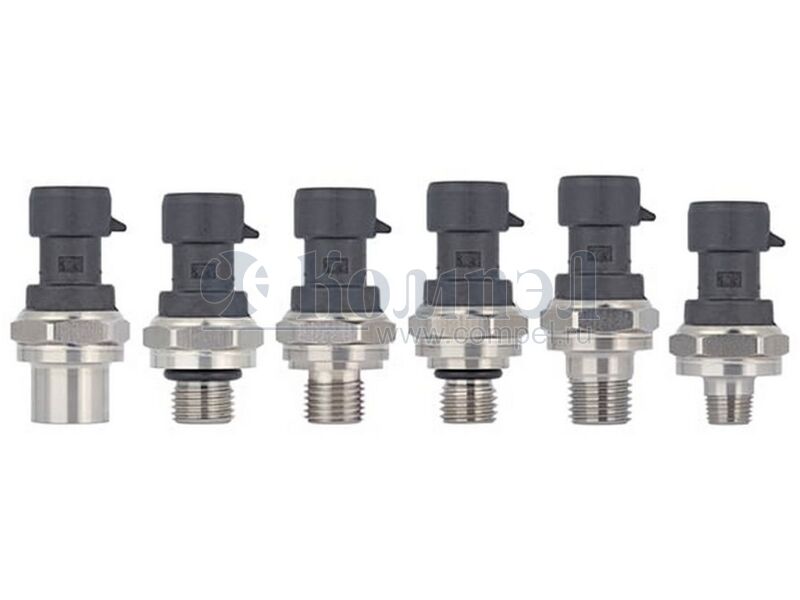

Внешний вид серии MIP

Технические характеристики

показать свернуть
Тип измеряемого давления
Измеряемое давление
Тип выхода
Точность
Особенности
Электрическое подключение
Тип порта
Напряжение питания
Материал корпуса
Размер 17 мм
Рабочая температура
Примечания Piezoresistive Sensor, Absolute, 0Psi Min, 14.5Psi Max, 0.15%, Cylindrical
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
MIP SERIES 32354483 Issue A Heavy Duty, Media-Isolated Pressure Transducers 1 bar to 60 bar | 15 psi to 870 psi DESCRIPTION DIFFERENTIATION The MIP Series offers a heavy duty, media-isolated pressure transducer in a compact, stainless steel construction for use with a wide range of media including aggressive fluids and water. The MIP Series provides a cost-competitive solution for wide-ranging potential applications in tough environments. • Diagnostics: Beneficial in applications where the sensor functionality and the need to know internal or external failure modes is critical. • Great customer value: Multiple configuration possibilities provide flexibility of use in the application with no up front NRE or tooling charges. • Durable: Provides the tough environmental capabilities needed, including long-term stability, insulation resistance and dielectric strength, external freeze-thaw resistance and EMC performance. VALUE TO CUSTOMERS • Total Error Band (TEB) ±0.75 %FSS (Full Scale Span) from -40°C to 125°C: Provides true measurement performance over the compensated temperature range; small error promotes system uptime and efficiency (see Figure 4). • EMC performance: Operates reliably in the presence of electromagnetic fields, such as wireless signals, RF communication, and electrical devices. • Hermetically welded design supports almost any media without the use of an internal seal. The sensors are designed to be used in harsh environments which see aggressive media. FEATURES • • • • Certified to NSF/ANSI/CAN 61 • • • • TABLE 1. POTENTIAL APPLICATIONS INDUSTRY Industrial: pumps compressors process MEDIA water, hydraulic fluids compressed air food, beverage, oil, gas, steam • • • Rugged, stainless steel construction Ratiometric output: 0.5 Vdc to 4.5 Vdc Operating temperature: -40°C to 125°C Total Error Band: ±0.75 %FSS to ±1.0 %FSS (-40°C to 125°C) An industry leader in accuracy: ±0.15 %FSS BFSL Long term stability: ±0.25 %FSS Radiated immunity: 100 V/m Drinking water approval: NSF/ANSI/CAN 61 CE, RoHS, REACH compliant Mis-wiring protection Over and reverse voltage protection up to ±40 Vdc PORTFOLIO Honeywell offers a variety HVAC/R refrigerants (butane, propane, ammonia, CO2, R134A, R407C, R410A, R448A/Solstice® N40, R32 and R1234ze, R1234yf, glycol + water transducers for potential use in Transportation gasoline, diesel fuel, engine oil, brake fluid, coolants, CNG industrial and transportation Medical O2, N2, CO2, N2O, air applications. To view the entire of heavy duty pressure product portfolio, click here. PDF
Документация на серию MIP

MIP Series - High Pressure - Datasheet

Дата модификации: 12.04.2021

Размер: 1.33 Мб

6 стр.

    Публикации 1

    показать свернуть
    17 ноября 2021
    новость

    Honeywell выпускает устойчивые к различным средам датчики давления серии MIP

    Honeywell предлагает новое семейство датчиков давления серии MIP, которые могут использоваться для измерения давления разнообразных жидкостей и газов. Датчики выполнены из нержавеющей стали и позволяют измерять давление в диапазоне от 1 до 60... ...читать

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
