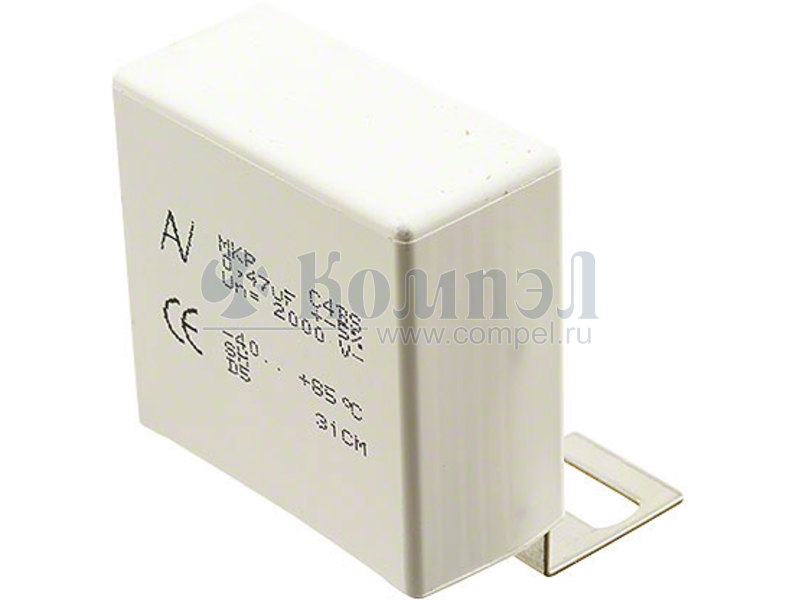

PHE845VZ6470MR06L2

Конденсатор плёночный 1500 В, 0.47 мкФ ±20%, Polyester, Metallized
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Номинальное постоянное напряжение
Номинальное переменное напряжение
Номинальная ёмкость
Допуск ёмкости
Диэлектрик
Способ монтажа
Шаг выводов
Размер 31.5×21×30 мм
Примечания
Рабочая температура
Класс
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 24

показать свернуть
Тип Наименование Корпус Упаковка i VDC VAC Ёмкость Допуск Диэлектрик Монтаж Шаг Корпус Примечания Особенности Ток пульс. T раб ESR Класс Карточка
товара
A- MKP386M447250JT4 (VISHAY)

Polypropylene (PP), Metallized
A- MKP386M447250JT1 (VISHAY)

Polypropylene (PP), Metallized
A- PHE845VZ6470MR30L2 (KEM)

Polypropylene (PP), Metallized
A- R76TR34704030J (KEM) 50 шт

Polypropylene (PP), Metallized High Frequency, Switching; High Pulse, DV/DT
A- PHE845VR6470MR06L2 (KEM) 1 шт

Polypropylene (PP), Metallized
A- C4CAWUD3470AA1J (KEM)

Polypropylene (PP), Metallized DC Link, DC Filtering; High Frequency, Switching; Snubber
A- C4BSYBX3470ZBMJ (KEM) Polypropylene (PP), Metallized DC Link, DC Filtering; High Frequency, Switching; Snubber
A- C4BSWBX3470ZBFJ (KEM) Polypropylene (PP), Metallized DC Link, DC Filtering; High Frequency, Switching; Snubber
A- C4BSWBX3470ZB0J (KEM)

Polypropylene (PP), Metallized DC Link, DC Filtering; High Frequency, Switching; Snubber
A- C4BSWBX3470ZAFJ (KEM) Polypropylene (PP), Metallized DC Link, DC Filtering; High Frequency, Switching; Snubber
A- MKP1U034707G00KYSD (WIM)

Polypropylene (PP) Capacitors for Pulse Applications with Double-Sided Metallized Electrodes and Schoopage Contacts
A- B32656S1474K566 (TDK-EPC)

A- B32656S1474K562 (TDK-EPC)

A- B32656S1474K561 (TDK-EPC) 1 шт

A- B32656J2474K000 (TDK-EPC)

A- B32656J2474J000 (TDK-EPC)

A- B32656J1474J000 (TDK-EPC)

A- B32026A3474M000 (TDK-EPC)

A- B32026A3474K000 (TDK-EPC)

A- B32024C3474M000 (TDK-EPC)

A- B32024B3474M000 (TDK-EPC)

A- B32024B3474K000 (TDK-EPC)

A- B32024A3474M000 (TDK-EPC)

A- 940C20P47K-F (CORNELL)

Polypropylene (PP), Metallized

Файлы 1

показать свернуть
Metallized Polypropylene Film EMI Suppression Capacitors PHE845 Series, Class X1, 760 VAC, 105°C Overview Applications The PHE845 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94 V–0. For use as a electromagnetic interference (EMI) suppression filter in across-the-line applications requiring X1 safety classification. Suitable for use in situations where failure of the capacitor would not lead to danger of electric shock. Benefits • • • • • • • • • • • • Approvals: ENEC, UL, cUL Class X1 (IEC 60384-14) Rated Voltage: 760VAC 50/60Hz Capacitance range: 0.01 – 1.0 µF Lead spacing: 22.5 – 37.5 mm Capacitance tolerance: ±20%, ±10% Climatic category 40/105/56/B, IEC 60068-1 Tape and reel in accordance with IEC 60286-2 RoHS Compliant and lead-free terminations Operating temperature range of -40˚C to +105˚C 100% screening factory test at 4,250 VDC Self-healing properties Click image above for interactive 3D content Open PDF in Adobe Reader for full functionality Legacy Part Number System PHE845 V D 5100 M R06L2 Series Rated Voltage (VAC) Lead Spacing (mm) Capacitance Code (pF) Capacitance Tolerance Packaging X1, Metallized Polypropylene V = 760 D = 22.5 F = 27.5 R = 37.5 The last three digits represent significant figures. The first digit specifies the total number of digits. K = ±10% M = ±20% See Ordering Options Table New KEMET Part Number System F 845 D D 103 M 760 C Capacitor Class Series Lead Spacing (mm) Size Code Capacitance Code (pF) Capacitance Tolerance Rated Voltage (VAC) Packaging D = 22.5 F = 27.5 R = 37.5 See Dimension Table First two digits represent significant figures. Third digit specifies number of zeros. F = Film X1, Metallized Polypropylene K = ±10% M = ±20% 760 = 760 See Ordering Options Table One world. One KEMET © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3109_PHE845_X1_760 • 9/23/2016 1 PDF
Документация на PHE845VF6330MR06L2

Дата модификации: 18.10.2018

Размер: 1.53 Мб

13 стр.
