0466004.NR

Littelfuse
Предохранитель плавкий - Ток: 4 А; U AC: 32 В; U DC: 32 В; Класс: Fast; Монтаж: 1206; Примечания: FUSE BOARD MNT 4A 32VAC/VDC 1206
развернуть ▼ свернуть ▲

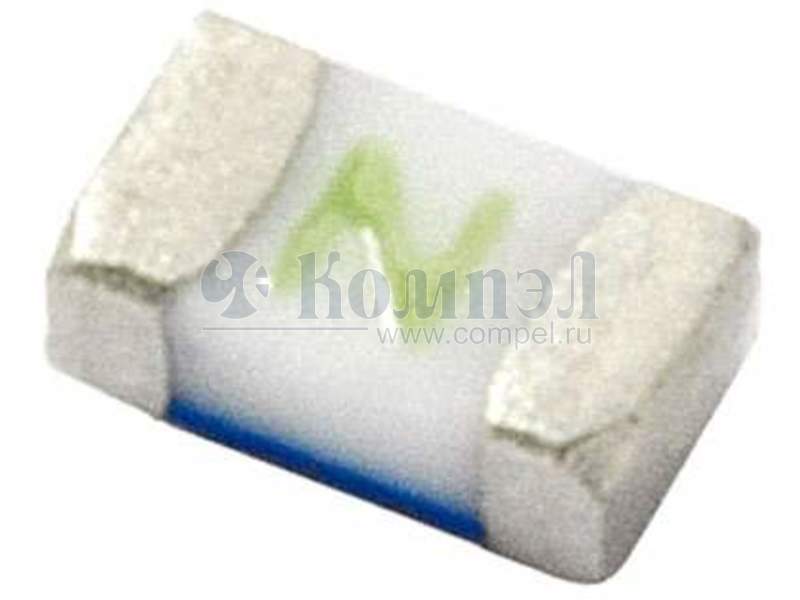

Внешний вид 0466.375NR
Внешний вид серии SlimLine 466



Технические характеристики

показать свернуть
Номинальный ток
Напряжение AC
Напряжение DC
Класс быстродействия
Тип монтажа
Отключающая способность AC
Особенности Board Mount (Cartridge Style Excluded)
Размер ø3.18×0.58 мм
Примечания FUSE BOARD MNT 4A 32VAC/VDC 1206
Рабочая температура
Одобрение
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 26

показать свернуть
Тип Наименование Корпус Упаковка i Ток U AC U DC Класс Монтаж I dist. AC I dist. DC Особенности Примечания T раб Одобрение Карточка
товара
F~ 0466004.NRHF (LTL)

— 5000 шт Предохранитель плавкий - Ток: 4 А; U AC: 32 В; U DC: 32 В; Класс: Fast; Монтаж: 1206; П... — Board Mount (Cartridge Style Excluded) FUSE BOARD MNT 4A 32VAC/VDC 1206
A- SF-0603S400-2 (BOURNS)

SMD060316X08MM 1 шт предохранитель плавкий - Ток: 4 А; U DC: 32 В; Класс: Slow; Монтаж: SMD, 0603; 1.6x0.8x... — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 4A 32VDC 0603
A- 0451004.MRL (LTL)

— в ленте 1000 шт — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 4A 125VAC/VDC 2SMD
A- 0452004.MRL (LTL)

— в ленте 1000 шт Предохранитель плавкий - — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 4A 125VAC/VDC 2SMD
A- SF-1206SP400-2 (BOURNS)

SMD120632X16MM — — Board Mount (Cartridge Style Excluded)
A- SF-1206SP400M-2 (BOURNS)

SMD120632X16MM

 — — Board Mount (Cartridge Style Excluded) —
A- SF-0402S400M-2 (BOURNS)

SMD040210X05MM — — Board Mount (Cartridge Style Excluded) 0402 SMD SLOW BLOW MULTILAYER 4.
A- SF-0603F400-2 (BOURNS)

SMD060316X08MM 30 шт предохранитель плавкий - Ток: 4 А; U DC: 32 В; Класс: Fast; Монтаж: SMD, 0603; 1.6x0.8x... — — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 4A 32VDC 0603
A- SF-0603FP400-2 (BOURNS)

SMD060316X08MM — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 4A 32VDC 0603
A- SF-0603FP400F-2 (BOURNS)

SMD060316X08MM 1 шт

 — Board Mount (Cartridge Style Excluded) —
A- SF-0603FP400M-2 (BOURNS)

SMD060316X08MM

 — — Board Mount (Cartridge Style Excluded) —
A- SF-0603HI400M-2 (BOURNS)

SMD060316X08MM

 — — — Board Mount (Cartridge Style Excluded) —
A- 0437004.WR (LTL)

— 3000 шт Предохранитель плавкий - Ток: 4 А; U AC: 32 В; U DC: 35 В; Класс: Fast; Монтаж: 1206; П... — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 4A 32VAC 35VDC 1206
A- SF-0603SP400-2 (BOURNS)

SMD060316X08MM — — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 4A 32VDC 0603
A- SF-0603S400M-2 (BOURNS)

SMD060316X08MM — — Board Mount (Cartridge Style Excluded) 0603 SMD SLOW-BLOW MULTILAYER 4.
A- SF-0603SP400M-2 (BOURNS)

SMD060316X08MM

 — — Board Mount (Cartridge Style Excluded) —
A- SF-1206F400-2 (BOURNS)

SMD120632X16MM 1 шт предохранитель плавкий - Ток: 4 А; U DC: 24 В; Класс: Fast; Монтаж: SMD, 1206; 3.1x1.55... — — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 4A 24VDC 1206
A- SF-1206FP400-2 (BOURNS)

SMD120632X16MM

 — — Board Mount (Cartridge Style Excluded)
A- SF-1206HI400M-2 (BOURNS)

SMD120632X16MM

 — — Board Mount (Cartridge Style Excluded) —
A- SF-1206S400-2 (BOURNS)

SMD120632X16MM 1 шт предохранитель плавкий - Ток: 4 А; U DC: 24 В; Класс: Slow; Монтаж: SMD, 1206; 3.1x1.55... — — Board Mount (Cartridge Style Excluded) FUSE BOARD MOUNT 4A 24VDC 1206
A- SF-1206S400W-2 (BOURNS)

SMD120632X16MM

 — — Board Mount (Cartridge Style Excluded) —
A- 0437004.WRA (LTL)

— 3000 шт — Board Mount (Cartridge Style Excluded) —
A- 0459004.UR (LTL)

— 500 шт Предохранитель плавкий - Ток: 4 А; U AC: 125 В; U DC: 125 В; Класс: Fast; Монтаж: 2-SMD... — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 4A 125VAC/VDC 2SMD
A- 0438004.WRA (LTL)

SMD060316X08MM 3000 шт

 — Board Mount (Cartridge Style Excluded) —
A- 0460004.UR (LTL)

— 500 шт Предохранитель плавкий - Ток: 4 А; U AC: 125 В; U DC: 125 В; Класс: Slow; Монтаж: 2-SMD... — Board Mount (Cartridge Style Excluded) FUSE BRD MNT 4A 125VAC/VDC 2SMD
A- 0438004.WRGT (LTL)

— 3000 шт — Board Mount (Cartridge Style Excluded) —

Файлы 1

показать свернуть
Surface Mount Fuses Thin Film > 1206 Size > Very Fast-Acting > 466 Series 466 Series Fuse Description The 466 Series Fast-Acting Surface Mount Fuse (SMF) is a small (1206 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices. This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free 466 Series fuses are available to order using the “HF” suffix. See Part Numbering section for additional information. Features Agency Approvals Agency Agency File Number Ampere Range E10480 125mA - 5A LR29862 125mA - 5A Electrical Characteristics for Series % of Ampere Rating Opening Time at 25OC 100% 4 hours, Minimum 200% 5 sec., Maximum 300% 0.2 sec., Maximum • Product is compatible with lead-free solders and higher temperature profiles • Element-covering material is resistant to industry standard cleaning operations • Product is marked on top surface with code to allow amperage rating identification without testing • Mounting pad and electrical performance are identical to Littelfuse 429 and 433 Series products • Low profile for height sensitive applications • Flat top surface for pickand-place operations • Alloy-based element construction provides superior inrush withstand characteristics (I2t) over ceramic or glass-based 1206 chip fuse products Applications Additional Information Datasheet Resources Secondary protection for space constrained applications: Samples • Cell phones • DVD players • Battery packs • Hard disk drives • Digital cameras Electrical Specifications by Item Ampere Rating (A) 0.125 0.200 0.250 0.375 0.500 0.750 1.00 1.25 1.50 1.75 2.00 2.50 3.00 4.00 5.00 Amp Code .125 .200 .250 .375 .500 .750 001. 1.25 01.5 1.75 002. 02.5 003. 004. 005. Max Nominal Cold Interrupting Voltage Rating Resistance Rating (V) (Ohms) 125 4.000 125 1.160 50A @125 V AC/ DC 125 0.710 125 0.350 63 0.248 63 0.111 63 0.076 50A @63 V AC/DC 63 0.059 63 0.048 63 0.039 63 0.031 32 0.024 32 0.020 50A @32 V AC/DC 32 0.014 32 0.011 Nominal Melting I2t (A2sec) 0.00040 0.00055 0.0010 0.0028 0.0060 0.0276 0.0423 0.0640 0.1103 0.1323 0.2326 0.3516 0.5760 1.024 1.600 Nom Nom Power Agency Approvals Voltage Drop Dissipation (mV) (W) 552.66 0.0691 x x 254.28 0.0509 x x 207.01 0.0518 x x 169.18 0.0634 x x 158.47 0.0792 x x 98.65 0.0740 x x 89.94 0.0899 x x 85.71 0.1071 x x 82.97 0.1244 x x 80.73 0.1413 x x 78.73 0.1575 x x 76.99 0.1925 x x 75.99 0.2280 x x 74.50 0.2980 x x 73.75 0.3688 x x 1. Measured at 10% of rated current, 25ºC. 2. Measured at rated voltage. © 2013 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 12/19/13 PDF
Документация на серию SlimLine 466

Дата модификации: 02.01.2014

Размер: 1.31 Мб

3 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
