RB-2405D/HP

RECOM Electronic
DC-DC модульный преобразователь - Монтаж: на плату, SIP7; P вых: 1 Вт; #: 2; U вх: 23.76...24.24 В; Выход: 5 В, -5 В; Защита: короткого замыкания
развернуть ▼ свернуть ▲
Фотография серии RB

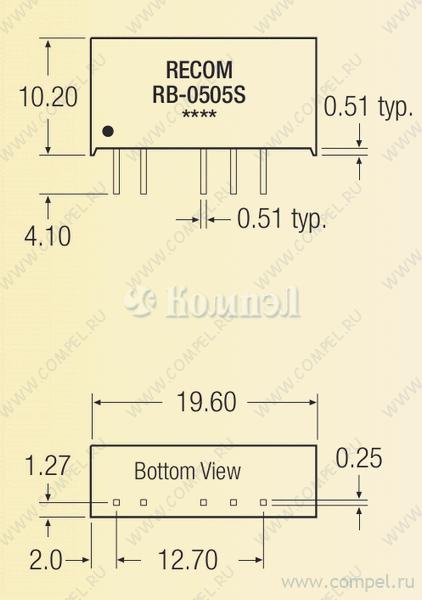

Чертеж серии RB



Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит
Номинальное входное напряжение
Напряжение 1 выхода
Ток 1 выхода
Ток 2 выхода
Схема параллельного включения
Напряжение изоляции вход-выход
Сертификаты медицинские
Размер 19.6×10.2×6.25 мм
Рабочая температура
