1-104480-6 AMPMODU IV/V, Connector Contact, Socket, Wire-to-Board, 26 – 22 AWG Wire Size, 236.823 – 789.41 CMA Wire Size, .12 – .4 mm² Wire Size, Gold 1-104480-6  ACTIVE AMPMODU | AMPMODU IV/V TE Internal #: 1-104480-6 AMPMODU IV/V, Connector Contact, Socket, Wire-to-Board, 26 – 22 AWG Wire Size, 236.823 – 789.41 CMA Wire Size, .12 – .4 mm² Wire Size, Gold View on TE.com > Connectors ...
развернуть ▼ свернуть ▲

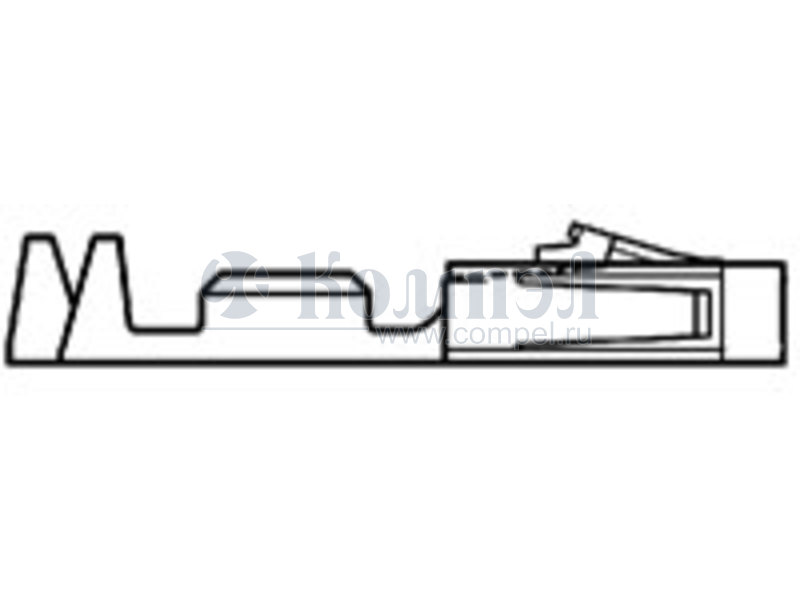

Внешний вид 1-104480-6
