102387-4

TE Connectivity
WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM; Connector Type:Wire to Board; Series:AMPMODU Mod IV; Gender:Receptacle; No. of Contacts:20; No. of Rows:2; Pitch Spacing:2.54mm; Mounting Type:PCB Straight Thru Hole; Body Width:1.18" ;RoHS Compliant: Yes
развернуть ▼ свернуть ▲

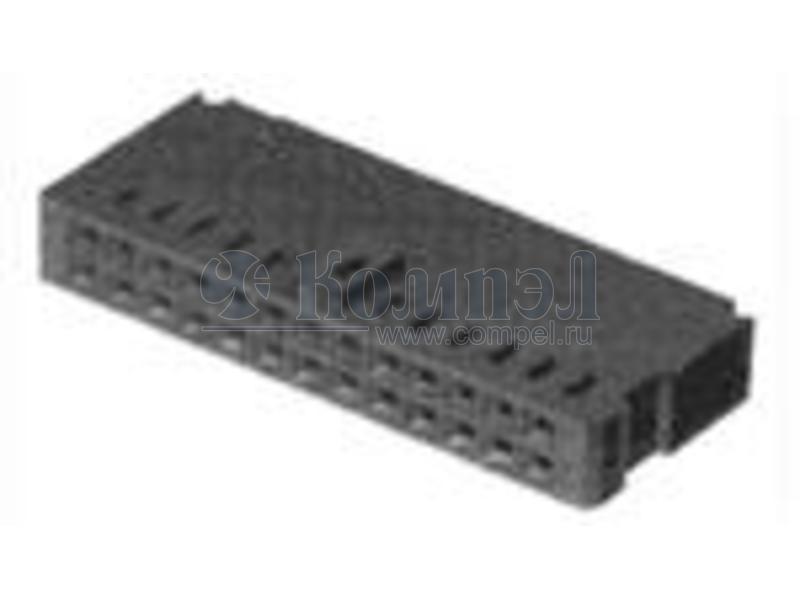

Внешний вид 102387-4

Технические характеристики

показать свернуть
Семейство
Тип разъема
Расстояние между соседними контактами
Количество контактов
Рабочий ток контактов
Рабочее напряжение контактов
Тип монтажа
Расположение контактов разъема
Сечение провода согласно AWG
Применение
Количество рядов контактов
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 3

показать свернуть
102387-4 AMPMODU IV/V, Housing, Receptacle, Wire-to-Board, 20 Position, 2.54 mm [.1 in] Centerline, Crimp, 2 Row, Black, Wire & Cable, Signal 102387-4  ACTIVE AMPMODU | AMPMODU IV/V TE Internal #: 102387-4 AMPMODU IV/V, Housing, Receptacle, Wire-to-Board, 20 Position, 2.54 mm [.1 in] Centerline, Crimp, 2 Row, Black, Wire & Cable, Signal View on TE.com > Connectors > PCB Connectors > Wire-to-Board Connectors > Wire-to-Board Connector Assemblies & Housings Connector Product Type: Housing Connector & Housing Type: Receptacle Connector System: Wire-to-Board Number of Positions: 20 Centerline (Pitch): 2.54 mm [ .1 in ] Features Product Type Features Connector Product Type Housing Connector & Housing Type Receptacle Connector System Wire-to-Board Connector & Contact Terminates To Wire & Cable Configuration Features Number of Positions 20 Number of Rows 2 Electrical Characteristics Termination Resistance 12 mΩ Insulation Resistance 5000 MΩ Dielectric Withstanding Voltage (Max) 750 V Operating Voltage 250 VAC Contact Features Contact Type Socket Contact Base Material Beryllium Copper Contact Current Rating (Max) 3A Termination Features Termination Method to Wire & Cable  Mechanical Attachment For support call+1 800 522 6752 Crimp 04/04/2022 09:11PM | Page 1 PDF
