TEN 10-4822

DC-DC, 10Вт, Uвх=36-75B, два выхода +/-12В / +/-415мА, изоляция 1500В DC, корпус 2"x1", 50.8x25.4x10.2мм, -40°С...+71°С
развернуть ▼ свернуть ▲



Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит
Номинальное входное напряжение
Напряжение 1 выхода
Напряжение 2 выхода
Ток 1 выхода
Ток 2 выхода
Уровень пульсаций
КПД
Схема параллельного включения
Напряжение изоляции вход-выход
Сертификаты медицинские

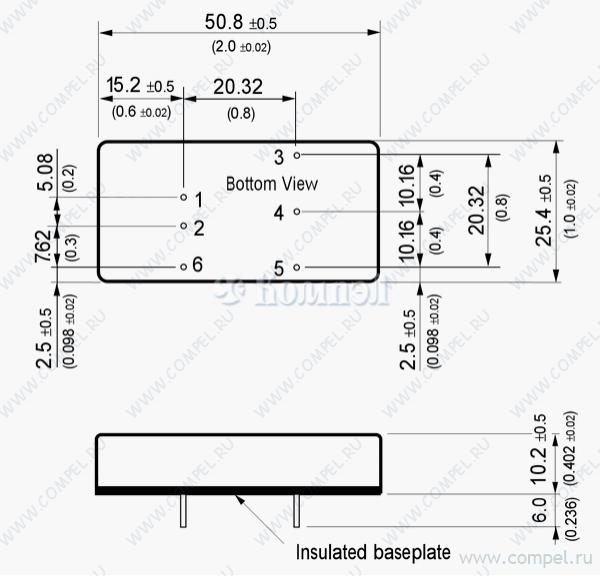

Размер 50.8×25.4×10.2 мм
Рабочая температура
Примечания Защита от КЗ: продолжительная с автовосстановлением
