THL10-2411WI

TRACO
DC/DC Converters THL 10WI Series, 10 Watt Features • 10 Watt in 1” x 1” package • Shielded metal case with isolated ing nd e p CB Scheme 226037 UL 60950-1 UL 60950-1 baseplate • Ultrawide 4:1 input voltage ranges • Remote On/Off control • Operating temp. range –40°C to +75°C and up to +85°C with heat-sink • I/O isolation voltage 1500 VDC • Input filter meets EN 55022 class A without ext...
развернуть ▼ свернуть ▲

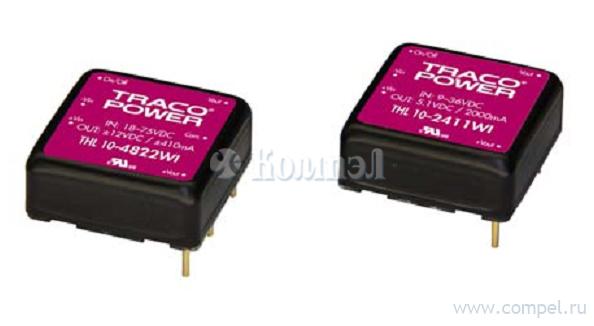

Фотография серии THL10WI

Технические характеристики

показать свернуть
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid
Комплекс защит OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Номинальное входное напряжение
Напряжение 1 выхода
Ток 1 выхода
Схема параллельного включения
Сертификаты медицинские
Размер 25.4×25.4×10.7 мм
Рабочая температура
