TMR 3-0521

TRACO
DC/DC конвертор: 3 Вт; корпус PCB SIP8; выходов 2: 5В @ 0.3А, -5В @ 0.3А; вход: 4.5...9 [5] В; -40...75 °C; изоляция вх-вых: 1 кВ
развернуть ▼ свернуть ▲
Фотография серии TMR3

Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит
Номинальное входное напряжение
Напряжение 1 выхода
Напряжение 2 выхода
Ток 1 выхода
Ток 2 выхода
Уровень пульсаций
КПД
Напряжение изоляции вход-выход
Размер 21.8×11.1×9.2 мм
Рабочая температура
Примечания Защита от КЗ: продолжительная с автовосстановлением
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 29

показать свернуть
Тип Наименование Корпус Упаковка i Монтаж P вых Каналов U вх Выход Возможности Защита U вх ном. U1 U2 U3 I1 I2 I3 Шум КПД Паралл. сх. Uиз. вх-вых Uиз. вх-общ Uиз. вых-общ Uиз. вых-вых Серт. медиц. T раб Примечания Карточка
товара
P= WRA0505S-3WR2 (MORNSUN)

SIP87 в линейках 10 шт — — — — — — —
A- WRE1205S-3WR2 (MORNSUN)

SIP87 — — — — — — —
A- DCW03A-05 (MW)

DIP2410 в линейках 15 шт DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 3 Вт; #: 2; U вх: 9..... — короткого замыкания, перегрузки — — — — — — — —
A- DPBW03F-05 (MW)

— 1 шт короткого замыкания, перегрузки, пониженного входного напряжения — — — — — — —
A- DLW05A-05 (MW)

2X1INCH в линейках 10 шт DC-DC модульный преобразователь - Монтаж: на плату, 2x1 inch; P вых: 5 Вт; #: 2; U вх: ... короткого замыкания, перегрузки — — — — — — — —
A- DLC03A-05 (MW)

DIP168 20 шт короткого замыкания, перегрузки, перенапряжения — — — — — —
A- P22TG-2405Z4:1MLF (PEAK)

DIP2410 в линейках 10 шт

 — — — — — — — Суффикс LF означает отсутствие свинца
A- DCWN03A-05 (MW)

— короткого замыкания, перегрузки, перенапряжения — — — — — —
A- MDD03F-05 (MW)

— 11 шт — — — — — — —
A- TEC 3-0921 (TRACO)

— — — — — — — — — —
A- TMR 3-1221WIE (TRACO)

SIP87 10 шт — — — — — — — —
A- TMR 3-0521HI (TRACO)

SIP87 30 шт — — — — — — — —

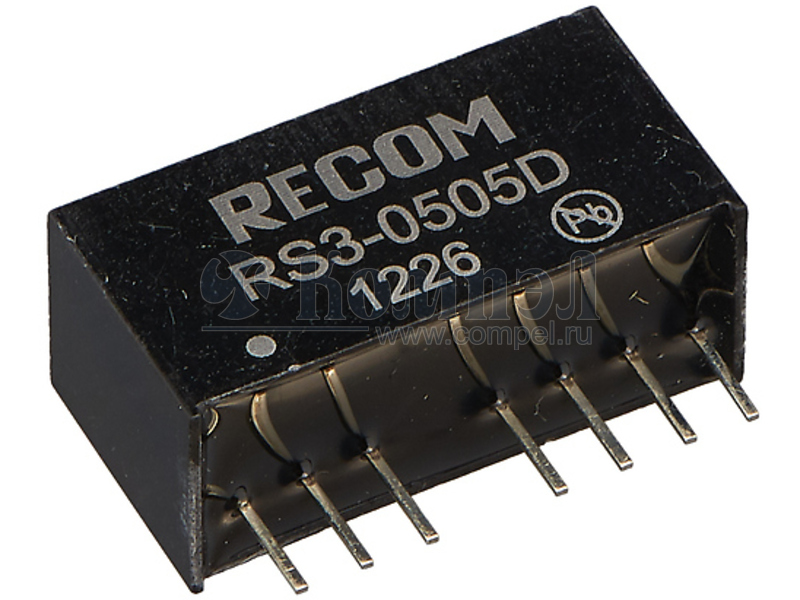

A- RS3-0505D (RECOM)

SIP87 в линейках 22 шт — — — — — — — — —
A- DCWN03E-05 (MW)

DIP2410 2 шт короткого замыкания, перегрузки, перенапряжения — — — — — —
A- K7805W-500R3 (MORNSUN)

— — — — — — — — — —
A- WRE0505S-3WR2 (MORNSUN)

SIP87 2 шт — — — — — — —
A- WRA0505P-3WR2 (MORNSUN)

— — — — — — — —
A- WRA1205P-3WR2 (MORNSUN)

—

 — — — — — — —
A- WRA1205S-3WR2 (MORNSUN)

SIP87 1 шт — — — — — — —
A- WRA1205SD-3WR2 (MORNSUN)

—

 — — — — — — — —
A- WRA1205ST-3WR2 (MORNSUN)

— — — — — — — — — —
A- UWE1205S-3WR3 (MORNSUN)

— в линейках 22 шт DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid INPUT UNDERVOLTAGE LOCKOUT; OUTPUT OVER CURRENT; OUTPUT SHORT CIRCUIT — — — — — — — — —
A- TEC 3-1221 (TRACO)

— 50 шт — — — — — — — — — —
A- TEC 3-1221WI (TRACO)

— — — — — — — — — —
A- TVN 5-2421WI (TRACO)

DIP2410 1 шт короткого замыкания, перегрузки, перенапряжения — — — — — — —
A- TEC 3-2421WI (TRACO)

— 1 шт — — — — — — — — —
A- TDN 3-1221WI (TRACO)

DIP-6 в линейках 10 шт — — — — — — — —
A- TDN 3-1221WISM (TRACO)

SMD5 в линейках 10 шт — — — — — — — —
A- TDN 3-2421WI (TRACO)

DIP-6 — — — — — — — —

Файлы 4

показать свернуть
Baar, 11. December 2014 Cleaning Guideline Scope This guideline covers hermetically sealed board mounted Traco converters. We do not recommend washing insert moulded products, where it is difficult to get them dry inside. Please check also, if there is an additional comment about washing in the datasheet or application note of the concerned product. Note: We do generally not recommend washing or cleaning electronic components. You should avoid it, if it is not absolutely necessary. It may reduce the reliability of the involved components in your application. Board cooling prior to cleaning process Converters and their associated application PCB assemblies should not be wash-cleaned after soldering until they had the opportunity to cool within the cleaning solution temperature. This will prevent vacuum absorption of the cleaning liquid into the module between the pins and the potting during cooling. Cleaning agents Cleaning method Classification Cleaning agents Water type Deionized water Ultrasonic wave Solvent type IPA Note: In general, the liquid temperature shall be less than 60°C. Cleaning process In aqueous cleaning, it is preferred to have an in-line cleaner system consisting of several cleaning stages (prewash, wash, rinse, final rinse, and drying). Deionised (DI) water is recommended for aqueous cleaning; the minimum resistively level is 1MΩ-cm. Tap-water quality varies per region in terms of hardness, chloride, and solid contents. Therefore, the use of tap water is not recommended for aqueous cleaning. Note: The total time of ultrasonic wave shall be less than 3 minutes. Drying After cleaning, assure that everything will be dry enough, that the moisture and other potential contaminants will not be present anymore. Use an air circulating chamber (e.g. 0.5-0.7m3/s) and thermal oven at 80-100°C (during 20-120min, depending on assembling, structure, components). Handheld air guns are not recommended. It is on customer’s own responsibility to ensure all components are dry. Product post-wash external appearance The marking or date-code may fade or disappear after cleaning. That does not concern the performance of the converter. Andreas Flühler, Head of Technical Services PDF
Рекомендации по промывке и сушке

Cleaning Guideline

Дата модификации: 02.02.2021

Размер: 79 Кб

1 стр.

DC/DC Converter TMR 3 Series, 3 Watt • • • • Wide 2:1 input voltage range • • • • • • Small footprint Fully regulated output voltage Compact SIP-8 package 1600 VDC I/O isolation (functional insulation) UL 62368-1 IEC 62368-1 UL 60950-1 IEC 60950-1 Temperature range –40° to +85°C High efficiency up to 85% Short-circuit protection Remote On/Off control 3-year product warranty The TMR 3 series is a new family of isolated 3 W DC/DC converter modules with regulated output, featuring wide 2:1 input voltage ranges. The product comes in a compact SIP-8 plastic package with a small footprint occupying only 2.0 cm² (0.3 square inch) of board space. An excellent efficiency allows –40° to +85°C operation temperatures. Further features include remote On/Off control and continuous short circuit protection. The compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics. Models Order Code Input Voltage Range TMR 3-0510 TMR 3-0511 TMR 3-0512 TMR 3-0513 TMR 3-0521 TMR 3-0522 TMR 3-0523 TMR 3-1210 TMR 3-1211 TMR 3-1212 TMR 3-1213 TMR 3-1221 TMR 3-1222 TMR 3-1223 TMR 3-2410 TMR 3-2411 TMR 3-2412 TMR 3-2413 TMR 3-2421 TMR 3-2422 TMR 3-2423 TMR 3-4810 TMR 3-4811 TMR 3-4812 TMR 3-4813 TMR 3-4821 TMR 3-4822 TMR 3-4823 www.tracopower.com 4.5 - 9 VDC (5 VDC nom.) 9 - 18 VDC (12 VDC nom.) 18 - 36 VDC (24 VDC nom.) 36 - 75 VDC (48 VDC nom.) Output 1 Output 2 Vnom Imax 3.3 VDC 5 VDC 12 VDC 15 VDC +5 VDC +12 VDC +15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC +5 VDC +12 VDC +15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC +5 VDC +12 VDC +15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC +5 VDC +12 VDC +15 VDC 700 mA 600 mA 250 mA 200 mA 300 mA 125 mA 100 mA 700 mA 600 mA 250 mA 200 mA 300 mA 125 mA 100 mA 700 mA 600 mA 250 mA 200 mA 300 mA 125 mA 100 mA 700 mA 600 mA 250 mA 200 mA 300 mA 125 mA 100 mA November 27, 2020 Vnom Efficiency Imax –5 VDC –12 VDC –15 VDC 300 mA 125 mA 100 mA –5 VDC –12 VDC –15 VDC 300 mA 125 mA 100 mA –5 VDC –12 VDC –15 VDC 300 mA 125 mA 100 mA –5 VDC –12 VDC –15 VDC 300 mA 125 mA 100 mA typ. 75 % 79 % 81 % 82 % 78 % 81 % 81 % 77 % 81 % 83 % 83 % 82 % 83 % 83 % 76 % 82 % 83 % 84 % 80 % 83 % 85 % 74 % 79 % 81 % 82 % 79 % 82 % 83 % Page 1 / 4 PDF
Документация на TMR 3-0511

TMR 3 Datasheet 3 Watt DC/DC converter, industrial, 2:1 input, regulated, 1600 VDC I/O-isolation, encapsulated, SIP-9

Дата модификации: 27.11.2020

Размер: 863.3 Кб

4 стр.

DC/DC Converters TMR 3 Series, 3 Watt UL 60950-1 Features ◆ Wide 2:1 input voltage range ◆ Fully regulated output voltage ◆ Compact SIP-8 package ◆ Models with 1’500 VDC and 3’000 VDC I/O isolation (functional insulation) ◆ ◆ ◆ ◆ ◆ ◆ ◆ Small footprint Full SMD design Temperature range –40° to +85°C High efficiency up to 85% Short-circuit protection Remote On/Off control 3-year product warranty The TMR-3 series is a new family of isolated 3W dc-dc converter modules with regulated output, featuring wide 2:1 input voltage ranges. The product comes in a compact SIP-8 plastic package with a small footprint occupying only 2.0 cm2 (0.3 square in.) of board space. An excellent efficiency allows –40° to +85°C operation temperatures. Further features include remote On/Off control and continuous short circuit protection. The compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics. Models Order code 1500 VDC isolation TMR 3-0510 TMR 3-0511 TMR 3-0512 TMR 3-0513 TMR 3-0521 TMR 3-0522 TMR 3-0523 TMR 3-1210 TMR 3-1211 TMR 3-1212 TMR 3-1213 TMR 3-1221 TMR 3-1222 TMR 3-1223 TMR 3-2410 TMR 3-2411 TMR 3-2412 TMR 3-2413 TMR 3-2421 TMR 3-2422 TMR 3-2423 TMR 3-4810 TMR 3-4811 TMR 3-4812 TMR 3-4813 TMR 3-4821 TMR 3-4822 TMR 3-4823 http://www.tracopower.com 3000 VDC isolation TMR 3-0510HI TMR 3-0511HI TMR 3-0512HI TMR 3-0513HI TMR 3-0521HI TMR 3-0522HI TMR 3-0523HI TMR 3-1210HI TMR 3-1211HI TMR 3-1212HI TMR 3-1213HI TMR 3-1221HI TMR 3-1222HI TMR 3-1223HI TMR 3-2410HI TMR 3-2411HI TMR 3-2412HI TMR 3-2413HI TMR 3-2421HI TMR 3-2422HI TMR 3-2423HI TMR 3-4810HI TMR 3-4811HI TMR 3-4812HI TMR 3-4813HI TMR 3-4821HI TMR 3-4822HI TMR 3-4823HI Input voltage range Output voltage Output current max. Efficiency typ. 3.3 VDC 5 VDC 12 VDC 15 VDC ±5 VDC ±12 VDC ±15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC ±5 VDC ±12 VDC ±15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC ±5 VDC ±12 VDC ±15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC ±5 VDC ±12 VDC ±15 VDC 75 % 79 % 81 % 82 % 78 % 81 % 81 % 77 % 81 % 83 % 83 % 82 % 83 % 83 % 76 % 82 % 83 % 84 % 80 % 83 % 85 % 74 % 79 % 81 % 82 % 79 % 82 % 83 % 4.5 – 9.0 VDC (5 VDC nominal) 9 – 18 VDC (12 VDC nominal) 18 – 36 VDC (24 VDC nominal) 36 – 75 VDC (48 VDC nominal) 700 mA 600 mA 250 mA 200 mA ±300 mA ±125 mA ±100 mA 700 mA 600 mA 250 mA 200 mA ±300 mA ±125 mA ±100 mA 700 mA 600 mA 250 mA 200 mA ±300 mA ±125 mA ±100 mA 700 mA 600 mA 250 mA 200 mA ±300 mA ±125 mA ±100 mA Page 1 of 3 PDF
Документация на серию TMR3

datasheet

Дата модификации: 10.01.2014

Размер: 197.4 Кб

3 стр.

DC/DC Converters TMR 3 Series, 3 Watt RoHS Features ◆ Wide 2:1 Input Voltage Range ◆ Ultra-compact SIP-8 Package ◆ Small Footprint ◆ Full SMD Design ◆ Temperature Range –40° to +70°C ◆ High Efficiency ◆ Excellent Load and Line Regulation ◆ Indefinite Short-circuit Protection ◆ I/O-Isolation 1500 VDC ◆ Remote On/Off Control ◆ Fully RoHS compliant ◆ 3 Year Product Warranty compliant The TMR-3 series is a new family of isolated 3W dc-dc converter modules with regulated output, featuring wide 2:1 input voltage ranges. The product comes in a ultra-compact SIP-8 plastic package with a small footprint occupying only 2.0 cm2 (0.3 square in.) of board space. An excellent efficiency allows –40° to +70°C operation temperatures at full load. Further features include remote On/Off control and continuous short circuit protection. The very compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics. Models Order code TMR 3-0510 TMR 3-0511 TMR 3-0512 TMR 3-0513 TMR 3-0521 TMR 3-0522 TMR 3-0523 TMR 3-1210 TMR 3-1211 TMR 3-1212 TMR 3-1213 TMR 3-1221 TMR 3-1222 TMR 3-1223 TMR 3-2410 TMR 3-2411 TMR 3-2412 TMR 3-2413 TMR 3-2421 TMR 3-2422 TMR 3-2423 TMR 3-4810 TMR 3-4811 TMR 3-4812 TMR 3-4813 TMR 3-4821 TMR 3-4822 TMR 3-4823 http://www.tracopower.com Input voltage range 4.5 – 9.0 VDC (5 VDC nominal) 9 – 18 VDC (12 VDC nominal) 18 – 36 VDC (24 VDC nominal) 36 – 75 VDC (48 VDC nominal) Output voltage 3.3 VDC 5 VDC 12 VDC 15 VDC ±5 VDC ±12 VDC ±15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC ±5 VDC ±12 VDC ±15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC ±5 VDC ±12 VDC ±15 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC ±5 VDC ±12 VDC ±15 VDC Output current max. 700 mA 600 mA 250 mA 200 mA ±300 mA ±125 mA ±100 mA 700 mA 600 mA 250 mA 200 mA ±300 mA ±125 mA ±100 mA 700 mA 600 mA 250 mA 200 mA ±300 mA ±125 mA ±100 mA 700 mA 600 mA 250 mA 200 mA ±300 mA ±125 mA ±100 mA Efficiency typ. 73 % 77 % 79 % 80 % 77 % 79 % 80 % 74 % 78 % 80 % 81 % 80 % 81 % 81 % 74 % 78 % 80 % 81 % 80 % 81 % 81 % 74 % 78 % 80 % 81 % 80 % 81 % 81 % Page  of 3 PDF
Документация на серию TMR3

Дата модификации: 19.09.2006

Размер: 122.9 Кб

3 стр.
