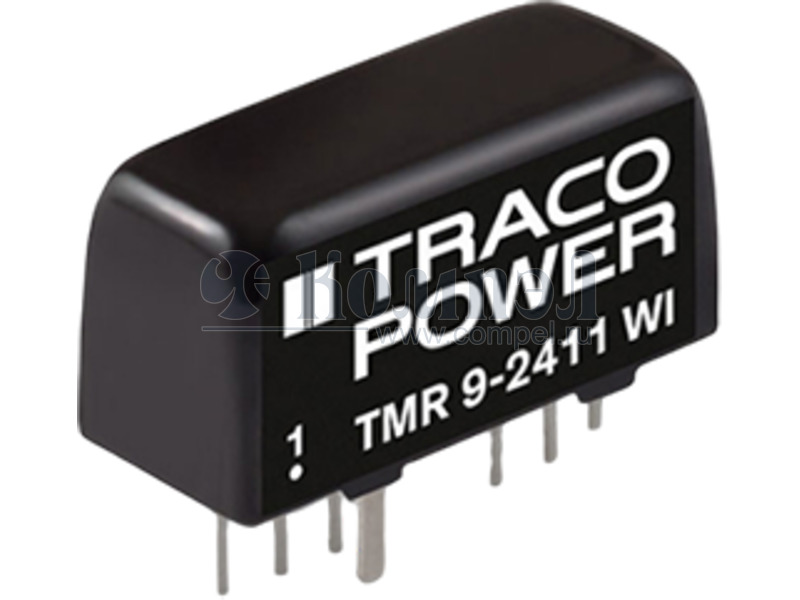

TMR 9-2411WI

TRACO
DC/DC Converter TMR 9WI Series, 9 Watt • Highest power density in SIP-8 metal package (optional plastic package) • • • • • • • • Ultra wide 4:1 input voltage range Temperature range –40° to +85°C High efficiency up to 89% Indefinite short-circuit protection I/O isolation 1'600 VDC UL 62368-1 IEC 62368-1 The TMR 9WI series is a new family of isolated 9W DC/DC converter modules with regula...
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит
Номинальное входное напряжение
Напряжение 1 выхода
Ток 1 выхода
КПД
Напряжение изоляции вход-выход
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 25

показать свернуть
Тип Наименование Корпус Упаковка i Монтаж P вых Каналов U вх Выход Возможности Защита U вх ном. U1 U2 U3 I1 I2 I3 Шум КПД Паралл. сх. Uиз. вх-вых Uиз. вх-общ Uиз. вых-общ Uиз. вых-вых Серт. медиц. T раб Примечания Карточка
товара
A- VRB2405ZP-10WR3 (MORNSUN)

в линейках 3 шт

A- VRB1205ZP-10WR3 (MORNSUN)

в линейках 50 шт

A- DDR-15G-5 (MW)

в коробках 80 шт КЗ, переполюсовки, пониженного входного напряжения
A- MDS15A-05 (MW)

в линейках 18 шт
A- MDS15C-05 (MW)

в линейках 18 шт
A- NSD10-48S5 (MW)

2X1INCH на поддоне 10 шт Преобразователь напряжения DC-DC на плату. 10Вт,Uвх=22-72В, Uвых=5В/2А,изоляция 1КВ AC ... перегрузки, перенапряжения, перегрева EN55024, light industry level, criteria A
A- NSD15-12S5 (MW)

2X15INCH на поддоне 180 шт Преобразователь напряжения DC-DC на плату. 15Вт,Uвх=9.4-36В, Uвых=5В/3А,изоляция 1.5КВ ... перегрузки, перенапряжения, перегрева
A- NSD15-48S5 (MW)

2X15INCH на поддоне 30 шт Преобразователь напряжения DC-DC на плату. 15Вт,Uвх=18-72В, Uвых=5В/3А,изоляция 1.5КВ A... перегрузки, перенапряжения, перегрева
A- PSD-15B-5 (MW)


PSD-15B-05 (MW)
1 шт DC-DC модульный преобразователь - Монтаж: открытый; P вых: 15 Вт; #: 1; U вх: 18...36 В... короткого замыкания, перегрузки, перенапряжения
A- SD-15A-5 (MW)

в коробках 60 шт короткого замыкания, перегрузки, перенапряжения
A- SKE10B-05 (MW)

2X1INCH в линейках 10 шт DC-DC модульный преобразователь - Монтаж: на плату, 2x1 inch; P вых: 10 Вт; #: 1; U вх:... короткого замыкания, перегрузки
A- SPB09B-05 (MW)

в линейках 9 шт

A- URB2405S-10WR3 (MORNSUN)

SIP87 в линейках 5 шт

A- VCB4805SBO-10WR3 (MORNSUN)

13 шт КЗ, перегрузка, от пониженного входного напряжения
A- VRB2405YMD-15WR3 (MORNSUN)

в линейках 6 шт

A- VRB4805ZP-10WR3 (MORNSUN)

в линейках 5 шт

A- K7805-2000R3 (MORNSUN)

SIP3 в линейках 500 шт
A- K7805-3AR3 (MORNSUN)

в линейках 25 шт
A- URA2405ZP-10WR3 (MORNSUN)

1 шт

A- URB2405YMD-10WR3 (MORNSUN)

1 шт
A- URB2405YMD-15WR3 (MORNSUN)

в линейках 2 шт

A- URB4805YMD-10WR3 (MORNSUN)

1 шт
A- URB4805YMD-15WR3 (MORNSUN)

в линейках 10 шт

A- URB4805ZP-10WR3 (MORNSUN)

в линейках 15 шт
A- TEN 10-1211 (TRACO)

в линейках 10 шт DC-DC модульный преобразователь - Монтаж: на плату, 2x1 inch; P вых: 10 Вт; #: 1; U вх:... Защита от КЗ: продолжительная с автовосстановлением

Файлы 3

показать свернуть
DC/DC Converter TMR 9WI Series, 9 Watt • Highest power density in SIP-8 metal package (optional plastic package) • • • • • • • • Ultra wide 4:1 input voltage range Temperature range –40° to +85°C High efficiency up to 89% Indefinite short-circuit protection I/O isolation 1'600 VDC UL 62368-1 IEC 62368-1 The TMR 9WI series is a new family of isolated 9W DC/DC converter modules with regulated output, featuring ultra wide 4:1 input voltage ranges. The product comes in a ultra-compact SIP-8 metal package with a small footprint occupying only 2.0 cm² (0.3 square inch) of board space. An excellent efficiency allows –40° to +60°C operation temperatures without derating. Further features include remote On/Off control and continuous short circuit protection. The very compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics. Remote On/Off control Fully RoHS compliant 3-year product warranty Models Order Code Input Voltage Range TMR 9-2410WI TMR 9-2411WI TMR 9-2419WI TMR 9-2412WI TMR 9-2413WI TMR 9-2415WI TMR 9-2421WI TMR 9-2422WI TMR 9-2423WI TMR 9-4810WI TMR 9-4811WI TMR 9-4819WI TMR 9-4812WI TMR 9-4813WI TMR 9-4815WI TMR 9-4821WI TMR 9-4822WI TMR 9-4823WI 9 - 36 VDC (24 VDC nom.) 18 - 75 VDC (48 VDC nom.) Output 1 Output 2 Vnom Imax 3.3 VDC 5 VDC 9 VDC 12 VDC 15 VDC 24 VDC +5 VDC +12 VDC +15 VDC 3.3 VDC 5 VDC 9 VDC 12 VDC 15 VDC 24 VDC +5 VDC +12 VDC +15 VDC 2'000 mA 1'600 mA 1'000 mA 750 mA 600 mA 375 mA 800 mA 375 mA 300 mA 2'000 mA 1'600 mA 1'000 mA 750 mA 600 mA 375 mA 800 mA 375 mA 300 mA Vnom Efficiency Imax –5 VDC –12 VDC –15 VDC 800 mA 375 mA 300 mA –5 VDC –12 VDC –15 VDC 800 mA 375 mA 300 mA typ. 82 % 85 % 88 % 88 % 89 % 89 % 86 % 88 % 88 % 82 % 85 % 89 % 89 % 89 % 89 % 85 % 88 % 87 % Options on demand (backorder with MOQ - Optional models with plastic case non stocking item) www.tracopower.com March 1, 2023 Page 1 / 6 PDF
Документация на TMR 9-2411WI

TMR 9WI Datasheet 9 Watt DC/DC converter, industrial, 4:1 input, regulated, 1600 VDC I/O-isolation, encapsulated, SIP-8 metal case

Дата модификации: 01.03.2023

Размер: 990.6 Кб

6 стр.

Baar, 11. December 2014 Cleaning Guideline Scope This guideline covers hermetically sealed board mounted Traco converters. We do not recommend washing insert moulded products, where it is difficult to get them dry inside. Please check also, if there is an additional comment about washing in the datasheet or application note of the concerned product. Note: We do generally not recommend washing or cleaning electronic components. You should avoid it, if it is not absolutely necessary. It may reduce the reliability of the involved components in your application. Board cooling prior to cleaning process Converters and their associated application PCB assemblies should not be wash-cleaned after soldering until they had the opportunity to cool within the cleaning solution temperature. This will prevent vacuum absorption of the cleaning liquid into the module between the pins and the potting during cooling. Cleaning agents Cleaning method Classification Cleaning agents Water type Deionized water Ultrasonic wave Solvent type IPA Note: In general, the liquid temperature shall be less than 60°C. Cleaning process In aqueous cleaning, it is preferred to have an in-line cleaner system consisting of several cleaning stages (prewash, wash, rinse, final rinse, and drying). Deionised (DI) water is recommended for aqueous cleaning; the minimum resistively level is 1MΩ-cm. Tap-water quality varies per region in terms of hardness, chloride, and solid contents. Therefore, the use of tap water is not recommended for aqueous cleaning. Note: The total time of ultrasonic wave shall be less than 3 minutes. Drying After cleaning, assure that everything will be dry enough, that the moisture and other potential contaminants will not be present anymore. Use an air circulating chamber (e.g. 0.5-0.7m3/s) and thermal oven at 80-100°C (during 20-120min, depending on assembling, structure, components). Handheld air guns are not recommended. It is on customer’s own responsibility to ensure all components are dry. Product post-wash external appearance The marking or date-code may fade or disappear after cleaning. That does not concern the performance of the converter. Andreas Flühler, Head of Technical Services PDF
Рекомендации по промывке и сушке

Cleaning Guideline

Дата модификации: 02.02.2021

Размер: 79 Кб

1 стр.

DC/DC Converters TMR 9WI Series, 9 Watt UL 60950-1 Features ◆ Highest power density in SIP-8 metal package (optional plastic package) ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ Ultra wide 4:1 input voltage range Temperature range –40° to +85°C High efficiency up to 89% Indefinite short-circuit protection I/O isolation 1600 VDC Remote On/Off control Fully RoHS compliant 3-year product warranty The TMR-9WI series is a new family of isolated 9W dc-dc converter modules with regulated output, featuring ultra wide 4:1 input voltage ranges. The product comes in a ultra-compact SIP-8 metal package with a small footprint occupying only 2.0 cm2 (0.3 square in.) of board space. An excellent efficiency allows –40° to +60°C operation temperatures without derating. Further features include remote On/Off control and continuous short circuit protection. The very compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics. Models Order code* TMR 9-2410WI TMR 9-2411WI TMR 9-2419WI TMR 9-2412WI TMR 9-2413WI TMR 9-2415WI TMR 9-2421WI TMR 9-2422WI TMR 9-2423WI TMR 9-4810WI TMR 9-4811WI TMR 9-4819WI TMR 9-4812WI TMR 9-4813WI TMR 9-4815WI TMR 9-4821WI TMR 9-4822WI TMR 9-4823WI Input voltage range 9 – 36 VDC (24 VDC nominal) 18 – 75 VDC (48 VDC nominal) Output voltage 3.3 VDC 5 VDC 9 VDC 12 VDC 15 VDC 24 VDC ±5 VDC ±12 VDC ±15 VDC 3.3 VDC 5 VDC 9 VDC 12 VDC 15 VDC 24 VDC ±5 VDC ±12 VDC ±15 VDC Output current max. 2000 mA 1600 mA 1000 mA 750 mA 600 mA 375 mA ±800 mA ±375 mA ±300 mA 2000 mA 1600 mA 1000 mA 750 mA 600 mA 375 mA ±800 mA ±375 mA ±300 mA Efficiency typ. 82 % 85 % 88 % 88 % 89 % 89 % 86 % 88 % 88 % 82 % 85 % 89 % 89 % 89 % 89 % 85 % 88 % 87 % * Suffix -P for models with plastic casing http://www.tracopower.com Page 1 of 3 PDF
Документация на серию TMR9WI

TMR 9WI Datasheet

Дата модификации: 26.10.2017

Размер: 234.8 Кб

3 стр.
