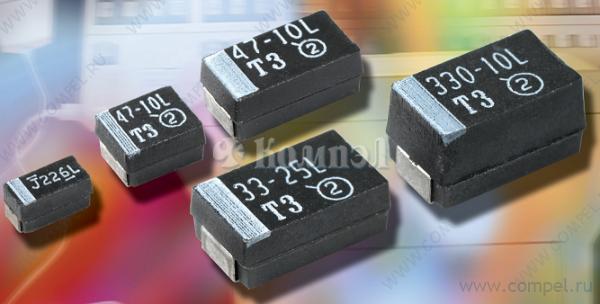

Конденсатор танталовый 35 В, 10 мкФ ±10%, корпус C, SMD_6032-28, -55...125 °C
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Номинальное напряжение
Номинальная ёмкость
Допуск ёмкости
Код корпуса
Рабочая температура
Ток утечки
Тангенс угла диэлектрических потерь
Эквивалентное последовательное сопротивление
Максимальный ток пульсаций
Размер 6×3.2×2.5 мм
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 8

показать свернуть
Тип Наименование Корпус Упаковка i Напряжение Ёмкость Допуск Корпус T раб Ток утечки tanD ESR Пульсации Монтаж Особенности Карточка
P- T491C106K035AT (KEM) в ленте 500 шт Конденсатор танталовый
A+ TAJC106K035RNJ (AVX) TANT60322860X32X28MM в ленте 500 шт Конденсатор танталовый 35 В 10 мкФ ±10% типоразмер SMD_6032-28
A+ TAJC106M035RNJ (AVX) TANT60322860X32X28MM в ленте 500 шт TANTAL-CHIP - BAUGRЦSSE C / REEL
A+ CA45-C035K106T (XIANGYEE) TANT60322860X32X28MM в ленте 15000 шт
A+ T491C106M035AT (KEM) 1 шт Конденсатор танталовый
A+ C 35V-10uF 10% L-KLS10-TCA-106K35V-C (KLS)
A+ C 35V-10uF 10% CA45-C035K106T (XIANGYEE)
A+ CA45-C035M106T (XIANGYEE) TANT60322860X32X28MM

Файлы 1

показать свернуть
Upgrade for High Reliability With T83 593D www.vishay.com Vishay Sprague Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT™, Molded Case, Low ESR FEATURES LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Calculators Related Documents Did You Know? Technical Notes Effective September 2005, new capacitor ratings will not be added to the 593D series. All new ratings are available in the TR3 series. The TR3 series offers state-of-the-art low ESR for switch mode power supplies and DC/DC converters. PERFORMANCE / ELECTRICAL CHARACTERISTICS www.vishay.com/doc?40192 Operating Temperature: -55 °C to +125 °C (above +85 °C voltage derating is required) Capacitance Range: 0.47 μF to 680 μF Capacitance Tolerance: ± 5 %, ± 10 %, ± 20 % 100 % Surge Current Tested (C, D and E Case Sizes) Voltage Rating: 4 VDC to 50 VDC • Low ESR • Molded case available in five case codes Available • Terminations: 100 % matte tin standard, tin / lead available Available • High ripple current carrying capability • Compatible with “high volume” automatic pick and place equipment Available • Qualified to EIA-717 • Moisture sensitivity level 1 • Compliant terminations • Meets EIA-535-BAAC mechanical and performance requirements • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details APPLICATIONS • Industrial • Telecom infrastructure • General purpose Note • For recommended voltage derating guidelines see “Typical Performance Characteristics” ORDERING INFORMATION 593D 107 X9 010 D 2WE3 TYPE CAPACITANCE CAPACITANCE TOLERANCE DC VOLTAGE RATING AT +85 °C CASE CODE TERMINATION AND PACKAGING This is expressed in picofarads. The first two digits are the significant figures. The third is the number of zeros to follow. X0 = ± 20 % X9 = ± 10 % X5 = ± 5 % (special order) This is expressed in V. To complete the three-digit block, zeros precede the voltage rating. A decimal point is indicated by an “R” (6R3 = 6.3 V). See Ratings and Case Codes table Matte tin 2TE3 = 7" (178 mm) reel 2WE3 = 13" (330 mm) reel 2DE3 = 7" (178 mm) reel, dry pack 2RE3 = 13" (330 mm) reel, dry pack Tin / lead 8T = 7" (178 mm) reel 8W = 13" (330 mm) reel 8D = 7" (178 mm) reel, dry pack 8R = 13" (330 mm) reel, dry pack Notes • We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage substitutions will be marked with the higher voltage rating. Low ESR solid tantalum chip capacitors allow delta ESR of 1.25 times the datasheet limits after mounting • Dry pack as specified in J-STD-033 Revision: 23-Mar-2022 Document Number: 40005 1 For technical questions, contact: tantalum@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 PDF
Документация на серию 593D

Дата модификации: 06.02.2023

Размер: 457.7 Кб

18 стр.
