597D337X0020H2T

Vishay
Конденсатор танталовый 20 В, 330 мкФ ±20%, корпус H, -55...125 °C
развернуть ▼ свернуть ▲

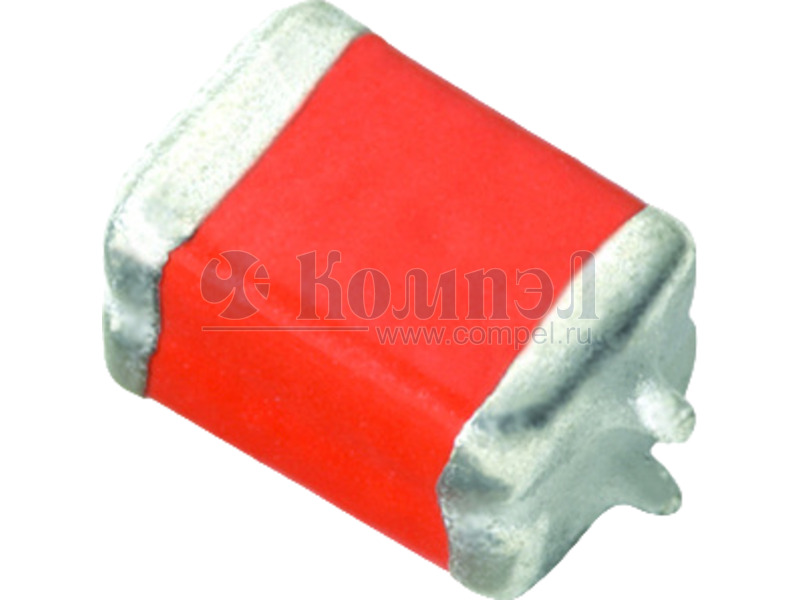

Внешний вид серии 597D

Технические характеристики

показать свернуть
Номинальное напряжение
Номинальная ёмкость
Допуск ёмкости
Код корпуса
Рабочая температура
Ток утечки
Тангенс угла диэлектрических потерь
Эквивалентное последовательное сопротивление
Максимальный ток пульсаций
Размер 8×6.6×5.2 мм
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
597D www.vishay.com Vishay Sprague Solid Tantalum Chip Capacitors, TANTAMOUNT®, Ultra-Low ESR, Conformal Coated, Maximum CV FEATURES • New case size offerings • Terminations: 100 % tin (2) standard; tin / lead available Available • Extremely low ESR Available • Mounting: surface mount • Ripple current up to 4.1 A • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 PERFORMANCE CHARACTERISTICS www.vishay.com/doc?40194 Operating Temperature: -55 °C to +125 °C (above 85 °C, voltage derating is required) Capacitance Range: 10 μF to 1500 μF Capacitance Tolerance: ± 10 %, ± 20 % standard Voltage Rating: 4 VDC to 75 VDC Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non-RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details. ORDERING INFORMATION 597D 687 X0 6R3 E 2 T TYPE CAPACITANCE CAPACITANCE TOLERANCE DC VOLTAGE RATING AT +85 °C CASE CODE TERMINATION REEL SIZE AND PACKAGING This is expressed in pF. The first two digits are the significant figures. The third is the number of zeros to follow. X0 = ± 20 % X9 = ± 10 % This is expressed in V. To complete the three-digit block, zeros precede the voltage rating. A decimal point is indicated by an “R” (6R3 = 6.3 V). See Ratings and Case Codes table 2 = 100 % tin 8 = solder plated (60/40) special order T = tape and reel 7" [178 mm] reel Note • Preferred tolerance and reel sizes are in bold. We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.  Low ESR solid tantalum chip capacitors allow delta ESR of 1.25 times the datasheet limits after mounting. DIMENSIONS in inches [millimeters] J Tantalum wire nib identifies anode (+) terminal W L H D B A CASE CODE V D E R F Z M H L (MAX.) 0.299 [7.6] 0.299 [7.6] 0.299 [7.6] 0.299 [7.6] 0.299 [7.6] 0.299 [7.6] 0.315 [8.0] 0.315 [8.0] W 0.173 ± 0.016 [4.4 ± 0.4] 0.173 ± 0.016 [4.4 ± 0.4] 0.173 ± 0.016 [4.4 ± 0.4] 0.238 ± 0.016 [6.0 ± 0.4] 0.238 ± 0.016 [6.0 ± 0.4] 0.238 ± 0.016 [6.0 ± 0.4] 0.260 + 0.016 / - 0.024 [6.6 + 0.4 / - 0.6] 0.260 + 0.016 / - 0.024 [6.6 + 0.4 / - 0.6] H 0.079 [2.0 max.] 0.138 [3.5 max.] 0.157 ± 0.016 [4.0 ± 0.4] 0.142 ± 0.016 [3.6 ± 0.4] 0.185 ± 0.016 [4.7 ± 0.4] 0.236 ± 0.016 [6.0 ± 0.4] 0.142 ± 0.016 [3.6 ± 0.4] 0.205 ± 0.016 [5.2 ± 0.4] A 0.051 ± 0.012 [1.3 ± 0.3] 0.051 ± 0.012 [1.3 ± 0.3] 0.051 ± 0.012 [1.3 ± 0.3] 0.051 ± 0.012 [1.3 ± 0.3] 0.055 ± 0.016 [1.4 ± 0.4] 0.055 ± 0.016 [1.4 ± 0.4] 0.051 ± 0.012 [1.3 ± 0.3] 0.055 ± 0.016 [1.4 ± 0.4] B 0.181 ± 0.024 [4.6 ± 0.6] 0.181 ± 0.024 [4.6 ± 0.6] 0.181 ± 0.024 [4.6 ± 0.6] 0.181 ± 0.024 [4.6 ± 0.6] 0.181 ± 0.024 [4.6 ± 0.6] 0.181 ± 0.024 [4.6 ± 0.6] 0.197 ± 0.024 [5.0 ± 0.6] 0.197 ± 0.024 [5.0 ± 0.6] D (REF.) 0.252 [6.4] 0.252 [6.4] 0.252 [6.4] 0.244 [6.2] 0.244 [6.2] 0.244 [6.2] 0.260 [6.6] 0.260 [6.6] J (MAX.) 0.004 [0.1] 0.004 [0.1] 0.004 [0.1] 0.004 [0.1] 0.004 [0.1] 0.004 [0.1] 0.004 [0.1] 0.004 [0.1] Note • The anode termination (D less B) will be a minimum of 0.012" [0.3 mm] Revision: 31-Aug-15 Document Number: 40047 1 For technical questions, contact: tantalum@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 PDF
Документация на серию 597D

Дата модификации: 28.12.2015

Размер: 282.3 Кб

20 стр.
