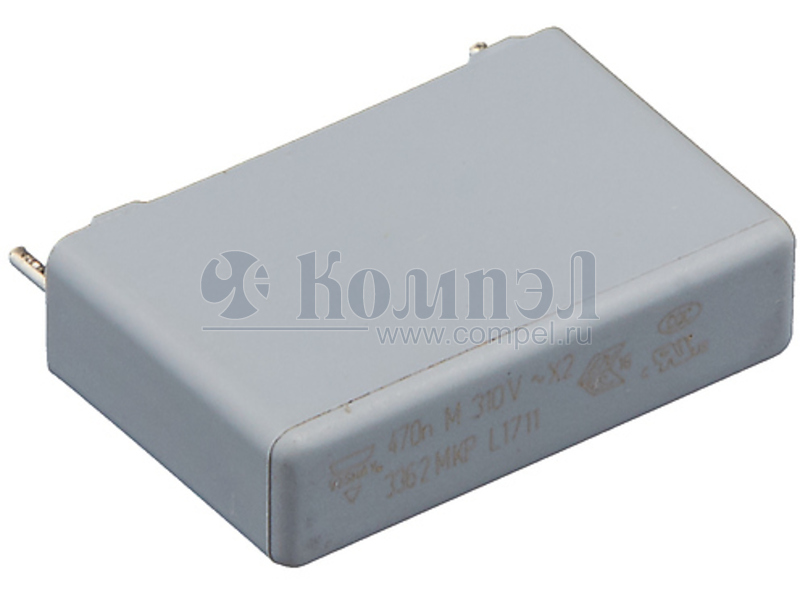

BFC233620474

Конденсатор плёночный 630 В, 0.47 мкФ ±20%, Polypropylene, -55...110 °C
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Номинальное постоянное напряжение
Номинальное переменное напряжение
Номинальная ёмкость
Допуск ёмкости
Диэлектрик
Способ монтажа
Шаг выводов
Размер 26×7×16.5 мм
  Примечания: Interference Suppression Film Capacitors MKP Radial Potted Type For standard across the line X2 applications
Класс
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 26

показать свернуть
Тип Наименование Корпус Упаковка i VDC VAC Ёмкость Допуск Диэлектрик Монтаж Шаг Корпус Примечания Особенности Ток пульс. T раб ESR Класс Карточка
товара
P= BFC233841474 (VISHAY) в коробках 250 шт

Interference Suppression Film Capacitors MKP Radial Potted Type X2
P= BFC233820474 (VISHAY) 200 шт

P= B32523Q8474J000 (TDK-EPC)

Polyester, Polyethylene Terephthalate (PET)
P= B32923C3474M000 (TDK-EPC) 510 шт

P= BFC233840474 (VISHAY) 10 шт

Interference Suppression Film Capacitors MKP Radial Potted Type X2
A- B32922H3474K000 (TDK-EPC) 100 шт

A- R71PI34704030M (KEM) 105 шт Polypropylene (PP), Metallized High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC)
A- PHE450PF6470JF13R06L2 (KEM) 10 шт

Polypropylene (PP), Metallized
A- JFB02J474K200000B (JB) 200 шт
A- B32656A7474K (TDK-EPC) 1 шт

A- B32653A6474J000 (TDK-EPC) 510 шт

DC Link, DC Filtering; High Pulse, DV/DT
A- B32523Q8474K000 (TDK-EPC) 29 шт

Polyester, Polyethylene Terephthalate (PET) Automotive; EMI, RFI Suppression
A- BFC237367474 (VISHAY)

DC Film Capacitors MKT Radial Potted Type
A- MKS4J034705G00KSSD (WIM) в коробках 680 шт

Metallized Polyester (PET) Capacitors
A- BFC233810474 (VISHAY) 100 шт

A- B32913A3474M000 (TDK-EPC) 1 шт

A- BFC237363474 (VISHAY) 1 шт

DC Film Capacitors MKT Radial Potted Type
A- BFC233623474 (VISHAY)

Interference Suppression Film Capacitors MKP Radial Potted Type For standard across the line X2 applications
A- BFC233626474 (VISHAY)

Interference Suppression Film Capacitors MKP Radial Potted Type For standard across the line X2 applications
A- BFC233812474 (VISHAY)

Interference Suppression Film Capacitors MKP Radial Potted Type X1
A- BFC233814474 (VISHAY) 125 шт

A- BFC233624474 (VISHAY)

Interference Suppression Film Capacitors MKP Radial Potted Type For standard across the line X2 applications
A- BFC233860474 (VISHAY)

Automotive; EMI, RFI Suppression
A- BFC233920474 (VISHAY) 1 шт

Automotive; EMI, RFI Suppression
A- BFC233922474 (VISHAY) 1 шт

Automotive; EMI, RFI Suppression
A- BFC233610474 (VISHAY) на поддоне 100 шт

Interference Suppression Film Capacitors MKP Radial Potted Type For X1 electromagnetic interference suppression in across the line applications (50/60 Hz) with a maximum mains voltage of 275 Vac

Файлы 1

показать свернуть
Not for New Designs - Alternative Device: MKP339 X2 MKP336 2 X2 www.vishay.com Vishay BCcomponents Interference Suppression Film Capacitors - Class X2 Radial MKP 310 VAC - Standard Across the Line FEATURES • 10 mm to 27.5 mm lead pitch • Supplied loose in box, taped on reel • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS For standard across the line X2 applications See also application note: www.vishay.com/doc?28153 QUICK REFERENCE DATA Capacitance range (E12 series) 0.001 μF to 2.2 μF (preferred values acc. to E6) Capacitance tolerance ± 20 %; ± 10 %; ± 5 % Climatic testing class according to IEC 60068-1 55/110/56/B Rated AC voltage 310 VAC; 50 Hz to 60 Hz Permissible DC voltage 800 VDC at 85 °C, 630 VDC at 110 °C C  470 nF: 110 °C (125 °C for less than 1000 h), C > 470 nF: 110 °C Maximum application temperature IEC 60384-14 ed-4 (2013) and EN 60384-14 IEC 60065, pass. flamm. class B for volumes > 1750 mm3 CQC GB/T6346.14-2015 UL 60384-14; CSA E384-14 Reference standards Dielectric Polypropylene film Electrodes Metallized film Mono construction Construction Encapsulation Plastic case, epoxy resin sealed, flame retardant UL-class 94 V-0 Leads Tinned wire C-value; tolerance; rated voltage; sub-class; manufacturer’s type designation; code for dielectric material; manufacturer location; manufacturer’s logo; year and week; safety approvals Marking Note • For more detailed data and test requirements, contact: rfi@vishay.com DIMENSIONS in millimeters l w h lt P ± 0.4 Revision: 25-Jul-2019 Ø dt Document Number: 28120 1 For technical questions, contact: rfi@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 PDF
Документация на серию MKP 336 2 X2

Дата модификации: 29.09.2020

Размер: 192.3 Кб

15 стр.
