MKP386M410200JT5

Vishay
Конденсатор плёночный 2000 В, 0.1 мкФ ±5%, POLYPROPYLENE
развернуть ▼ свернуть ▲

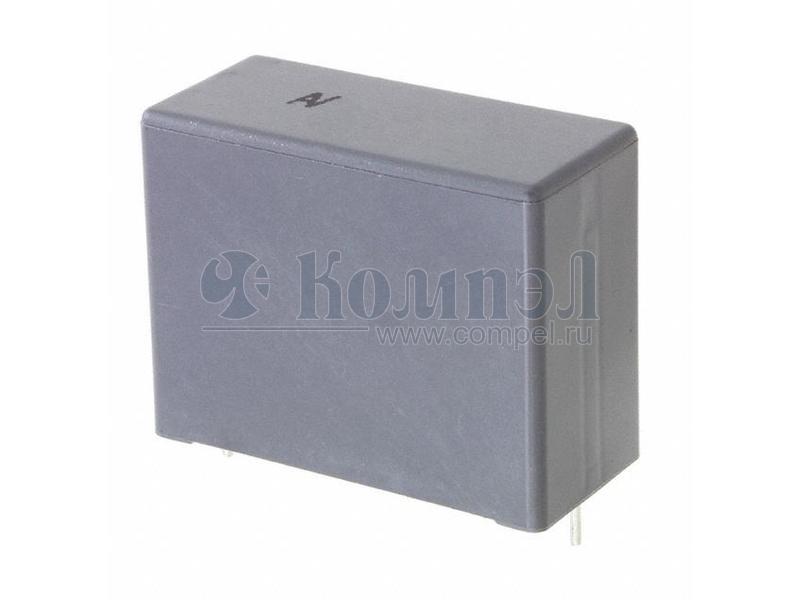

Внешний вид MKP386M410200JT5

Технические характеристики

показать свернуть
Номинальное постоянное напряжение
Номинальное переменное напряжение
Номинальная ёмкость
Допуск ёмкости
Диэлектрик
Размер 33.5×22×30.5 мм
Примечания Film Capacitor, Polypropylene, 2000V, 5% +Tol, 5% -Tol, 0.1uF, Chassis Mount
Особенности
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 14

показать свернуть
Тип Наименование Корпус Упаковка i VDC VAC Ёмкость Допуск Диэлектрик Монтаж Шаг Корпус Примечания Особенности Ток пульс. T раб ESR Класс Карточка
товара
P= MKP386M410200JT7 (VISHAY)

—

 — — — —
A- B32656J2104J000 (TDK-EPC)

— 1 шт

 — — — — — — — —
A- B32656J2104K000 (TDK-EPC)

— 1 шт

 — — — — — — — —
A- B32686A2104J000 (TDK-EPC)

—

 — — — — — — — —
A- R76UR3100SE30K (KEM)

— 100 шт — Film Capacitor, Polypropylene, 2000V, 10% +Tol, 10% -Tol, -200+/-100ppm/Cel TC, 0.1uF, Through Hole Mount — —
A- 104PPA202K (CORNELL)

—

 — — Film Capacitor, Polypropylene, 2000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount — —
A- 104PPA302K (CORNELL)

—

 — — Film Capacitor, Polypropylene, 3000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount — —
A- 940C30P1K-F (CORNELL)

— 6 шт

 — — Film Capacitor, Polypropylene, 3000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount — —
A- FKP4U031007F00MSSD (WIM)

—

 — — Film Capacitor, Polypropylene, 2000V, 20% +Tol, 20% -Tol, 0.1uF, Through Hole Mount — — —
A- MKP1U031006D00KYSD (WIM)

— 1 шт

 — Film Capacitor, Polypropylene, 2000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount — — — —
A- MKP1U031006D00MSSD (WIM)

—

 — Film Capacitor, Polypropylene, 2000V, 20% +Tol, 20% -Tol, 0.1uF, Through Hole Mount — — —
A- MKP1U031007D00KSSD (WIM)

—

 — Film Capacitor, Polypropylene, 2000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount — — — —
A- MKP1W031007C00KSSD (WIM)

—

 — Film Capacitor, Polypropylene, 3000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount — — — —
A- MKS4U031006D00KSSD (WIM)

—

 — Film Capacitor, Polyethylene Terephthalate, 2000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount — — — —

Файлы 1

показать свернуть
MKP386M Snubber www.vishay.com Vishay Roederstein Metallized Polypropylene Film Capacitor Radial Snubber Type FEATURES • Reduce EMI by clamping voltage and current ringing • High pulse strength (dV/dt up to 2500 V/μs) • Low inductance construction (low ESL) • Low ESR • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • • • • Photovoltaic and wind inverters Motor drives Frequency converters Direct mount on IGBT modules QUICK REFERENCE DATA Rated capacitance range 0.047 μF to 10 μF Capacitance tolerance ± 5 %/± 10 % Rated (DC) voltage, UNDC 700 V, 850 V, 1000 V, 1250 V, 1600 V, 2000 V, 2500 V Climatic testing class 55/105/56 Rated temperature 85 °C Maximum permissible case temperature 105 °C Rated (AC) voltage 420 V, 400 V to 450 V, 425 V to 500 V, 450 V to 550 V, 450 V to 600 V, 700 V, 800 V Reference standards IEC 60384-17 Dielectric Polypropylene film Electrodes Metallized film Construction Series construction Encapsulation Flame retardant plastic case and epoxy resin sealed Terminals Tinned coated copper Self inductance (LS) < 0.7 nH per mm of lead spacing Withstanding DC voltage between terminals (1) 1.6 URDC for 60 s (maximum rise time 1000 V/s; cut off current 10 mA) Test voltage between terminals and case 1.4 URAC + 2000 VDC for 60 s Insulation resistance RC between leads, at 500 V after 1 min: > 100 G for C  0.33 μF > 30 000 s for C > 0.33 μF Performance grade Grade 1 (long life) Stability grade Grade 2 Life time expectancy Operation life > 300 000 h - failure rate < 5 FIT (40 °C and 0.5 x UR) C-value, tolerance code, rated voltage, manufacturer’s emblem, code for dielectric material, manufacturer’s type designation, year and week, manufacturer’s location Marking Notes • For more detailed data and test requirements contact dc-film@vishay.com • For general information like characteristics and definitions used for film capacitors follow the link: www.vishay.com/doc?28147 (1) See document “Voltage Proof Test for Metalized Capacitors” (www.vishay.com/doc?28169) DC VOLTAGE RATINGS URDC 700 VDC 850 VDC 1000 VDC 1250 VDC 1600 VDC 2000 VDC 2500 VDC URAC 420 VAC 450 VAC 500 VAC 550 VAC 600 VAC 700 VAC 800 VAC Revision: 08-Jun-16 Document Number: 28170 1 For technical questions, contact: dc-film@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 PDF
