DO-201A — корпус ЭК

Псевдонимы

• DO-201A

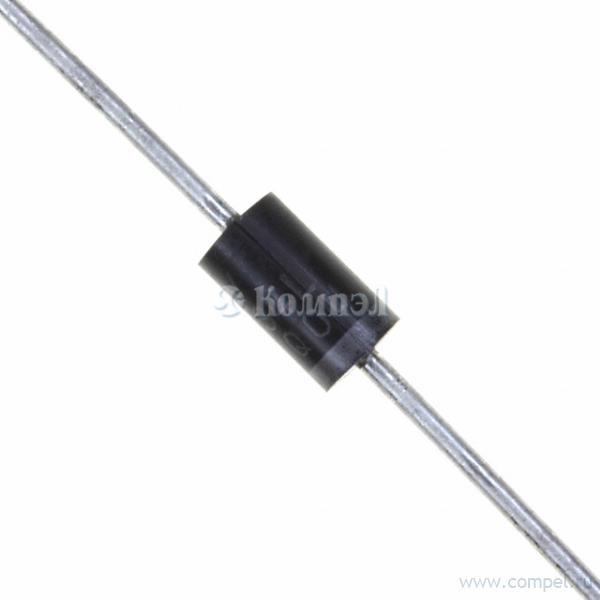

Внешний вид

Документация

THIS DRAWING IS THE PROPERTY OF FAIRCHILD SEMICONDUCTOR CORPORATION. NO USE THEREOF SHALL BE MADE OTHER THAN AS A REFERENCE FOR PROPOSALS AS SUBMITTED TO FAIRCHILD SEMICONDUCTOR CORPORATION FOR JOBS TO BE EXECUTED IN CONFORMITY REVISIONS WITH SUCH PROPOSALS UNLESS THE CONSENT OF SAID FAIRCHILD SEMICONDUCTOR COR- DESCRIPTION NBR PORATION HAS PREVIOUSLY BEEN OBTAINED. NO PART OF THIS DRAWING SHALL BE COPIED OR DUPLICATED OR ITS CONTENTS DISCLOSED. THE INFORMATION CONTAINED ON THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY. DATE RELEASED TO DCC 1 27OCT08 BY/APP'D HYANG/ SUZHOU 25.40 MIN (2X) 9.50 7.20 b NOTES: UNLESS OTHERWISE SPECIFIED 5.60 4.80 A) PACKAGE STANDARD REFERENCE: JEDEC DO-201 VARIATION AD. B) PLASTIC PACKAGE BODY. D) ALL DIMENSIONS ARE IN MILLIMETERS. E) b DIMENSION REPRESENT LIKE BELOW: OPTION AD = 1.20MIN TO 1.30MAX OPTION AE = 0.94MIN TO 1.07MAX E) DRAWING FILE NAME: DO201AREV1 APPROVALS DRAWN: BOBOY MALDO CHECKED: HENRY YANG APPROVED: BY HUANG APPROVED: HOWARD ALLEN DATE 27OCT08 AXIAL LEADED, JEDEC DO201 OPTION AD & AE SCALE PROJECTION [MM] INCH 1:1 SIZE N/A DRAWING NUMBER FORMERLY: N/A REV MKT-DO201A SHEET : 1 1 OF 1  PDF

Документация на корпус DO-201A

DO201AREV1

Дата модификации: 28.10.2008

Размер: 51.3 Кб

1 стр.
