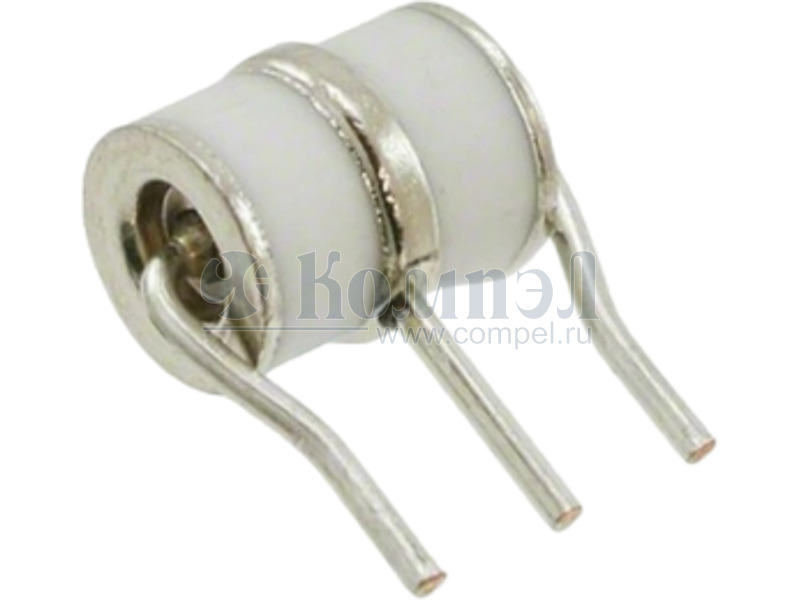

Серия газоразрядников B3R

Bencent

Общие характеристики

 Раздел Газоразрядники
Количество полюсов
Способ монтажа
Повторяемость пробоя

Документация на серию B3R

B3R090L Order Code: B3R090L Version: A1 2018-02-02 Gas Discharge Tube Exterior Features 3-Electrode DIP Design High Current Handling Capability 5,000A @ 8/20μ s Low Capacitance and Insertion Loss Quick Response and Long Service Life Moisture sensitivity level: Level 1 Application Information rmation Package (Top View) Telecommunications ` Line protection Base station protection Schematic Symbol Agency Approvals Icon Description 1 Compliance with 2011/65/EU 3 Compliance with IEC61249-2-21:2003 Mean lead free 2 UL Certificated E232249 Electrical Parameter DC Breakdown Voltage 1)2)4) Impulse Spark-over Voltage4) Impulse Discharge Current 3)5) Insulation Resistance4) Capacitance at 1MHz 4) 100V/s 72-108 At 1kV/μs for 99 % of measured values At 1kV/μs Typical values of distribution 8/20μ s V  600  550 V V 5,000 A DC=50V ≥1 GΩ VDC=0.5V ≤1.5 pF ～1.9 g -40-90 ℃ 10 operations [5x (+) & 5x (-)] Weight Operating and Storage Temperature Bencent Logo YY MM Marking B3R090L(YY:year of production, MM:month of production) 1) At delivery AQL 0.65 level II ISO 2859 2) In ionized mode 3) Terms and waveforms in accordance with ITU-T Rec. K. 12 and IEC 61643-21 4) Tip electrode “1”or “3”to center electrode “2” 5) Total Currents through center electrode 2, half value through each Tip electrode “1” “3”. 1/3 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications PDF
Документация на B3R090L

Дата модификации: 07.02.2018

Размер: 349.7 Кб

3 стр.

    Товары серии B3R

    Наименование i Упаковка Пробой Ток Допуск
    B3R090L (BENCENT)


    B3R090M (BENCENT)

    		на поддоне 100 шт
    B3R230H (BENCENT)


    B3R230M (BENCENT)

    		на поддоне 100 шт
    B3R350H (BENCENT)


    B3R350M (BENCENT)

    		на поддоне 100 шт
    B3R420L (BENCENT)


    B3R470M (BENCENT)


    B3R500L (BENCENT)
