Серия RS-485 и RS-422 CA-IF48xx

Chipanalog

Общие характеристики

 Раздел RS-485 и RS-422
Поддерживаемый протокол
Количество передатчиков
Количество приёмников
Нагрузочная способность (узлов)
Напряжение питания
Максимальное рабочее напряжение между шиной и общим проводом ±
Рабочая температура

Документация на серию CA-IF48xx

CA-IF4805/CA-IF4820/CA-IF4850 Shanghai Chipanalog Microelectronics Co., Ltd. Version 1.01, 2022/12/21 3.0V to 5.5V RS485/RS422 Transceivers with ±30kV ESD Protection 1. Features • High-Performance and Compliant with RS-485 EIA/ TIA-485 Standard  Low EMI 500kbps Data Rate (CA-IF4805) and up to 50Mbps (CA-IF4850), 20Mbps (CA-IF4820) High-Speed Data Rates  1/8 Unit Load Enables up to 256 Nodes on the Same Bus Integrated Protection for Robust Communication  ±30V Fault Protection Range on Driver Outputs/Receiver Inputs  ±15V Common-Mode Voltage Range  ±15kV Human Body Model ESD Protection for the Full-duplex Devices (CA-IF48xxFS/FM/FD)  ±30kV Human Body Model ESD Protection for the Half-duplex Devices (CA-IF48xxHS/HM/HD)  Short-Circuit Protection  Thermal Shutdown  True Fail-Safe Guarantees Known Receiver Output State Low Power  960µA (max.) @ Receive Mode  Shutdown Current < 5µA 3V to 5.5V Supply Voltage Range Wide Operating Temperature Range: –40°C to 125°C 8 pin SOIC, 8 pin MSOP and 8 pin DFN Packages • • • • • 2. Applications • • • • • • • Motor Drive Factory Automation & Control Grid Infrastructure Home and Building Automation Video Surveillance Process Control Telecommunication Equipment 3. General Description for the communication interface. They also feature ±15V wide common-mode range (CMR), this feature was specifically designed for systems where there is a large common-mode voltage present due to either nearby electrically noisy equipment or large ground differences due to different earth grounds or long distance transmission. The bus pins of these devices are protected against ±15kV (for the full-duplex transceivers) and ±30kV (for the half-duplex transceivers) electro-static discharge (ESD) shocks, eliminating the need for additional system level protection components. The CA-IF48xx family of devices contains one driver(TX) and one receiver(RX), operates over the +3V to +5.5V supply range, making these devices convenient for designers to use one part with either +3.3V or +5V supply systems. The CA-IF48xxHS/HM/HD devices provide halfduplex transceivers, and the CA-IF48xxFS/FM/FD devices provide full-duplex transceivers. The CA-IF4820 and CAIF4850 can transmit and receive at data rates up to 20Mbps and up to 50Mbps respectively, while the CAIF4805 is specified for data rates up to 500kbps. These devices also include fail-safe circuitry, guaranteeing a logichigh receiver output when the receiver inputs are shorted or open. All devices are specified over the -40°C to +125°C wide operating temperature range and are available in small 8pin MSOP, 8-pin DFN packages for space constrained applications and 8-pin SOIC for drop-in compatibility. Device Information Package Package size (NOM) CA-IF48xxxS SOIC8 3.9mm*4.9mm CA-IF48xxxM MSOP8 3mm*3mm CA-IF48xxxD DFN8 3mm*3mm Part number The CA-IF48xx family of devices are low-power transceivers for RS-485/RS-422 communications in harsh environments. All devices have ±30V fault protection for overvoltage conditions on the bus lines that ensure robust protection Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. 1 PDF
Документация на CA-IF4805HS

Дата модификации: 22.12.2022

Размер: 1.83 Мб

25 стр.

    Товары серии CA-IF48xx

    Наименование i Упаковка Режим Скорость ESD Корпус

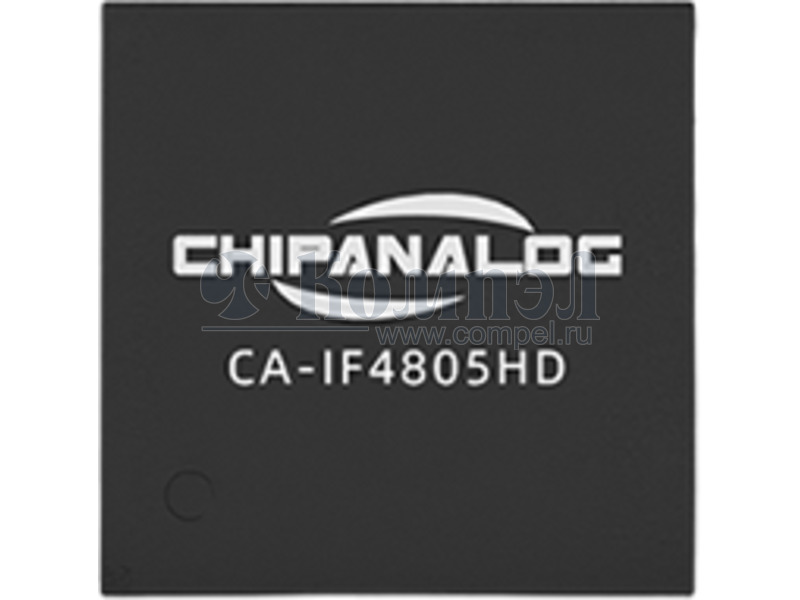

    CA-IF4805FD (CHIPANLG)


    		 —
    CA-IF4805FM (CHIPANLG)


    		 —
    CA-IF4805FS (CHIPANLG)


    		 —
    CA-IF4805HD (CHIPANLG)

    		DFN-8

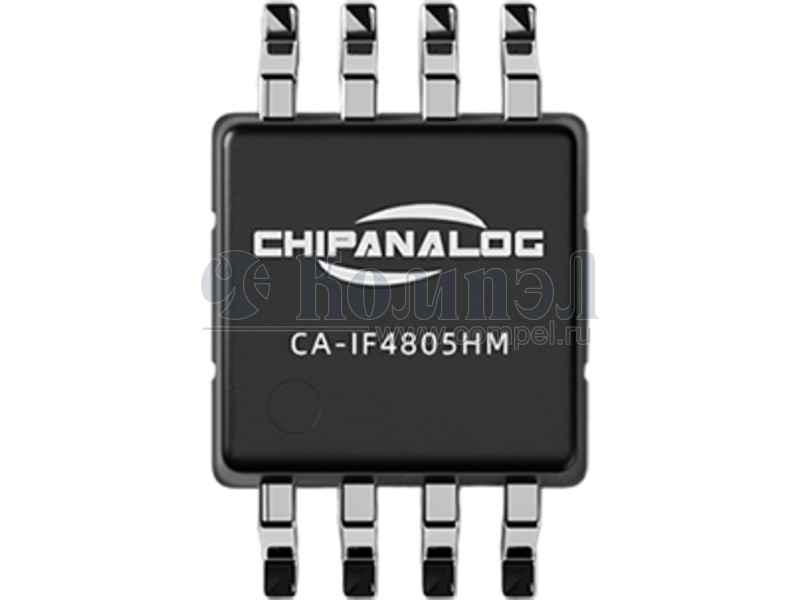

    CA-IF4805HM (CHIPANLG)

    		uSOP-8 MSOP8
    CA-IF4805HS (CHIPANLG)

    		в ленте 11 шт SO-8 SOIC8
    CA-IF4820FD (CHIPANLG)


    		 DFN-8
    CA-IF4820FM (CHIPANLG)


    		 —
    CA-IF4820FS (CHIPANLG)


    		 SO-8 SOIC8
    CA-IF4820HD (CHIPANLG)


    		 в ленте 2500 шт DFN-8
    CA-IF4820HM (CHIPANLG)


    		 в ленте 5000 шт uSOP-8 MSOP8
    CA-IF4820HS (CHIPANLG)


    		 в ленте 2500 шт SO-8 SOIC8
    CA-IF4850FD (CHIPANLG)


    		 —
    CA-IF4850FM (CHIPANLG)


    		 —
    CA-IF4850FS (CHIPANLG)


    		 —
    CA-IF4850HD (CHIPANLG)


    		 —
    CA-IF4850HM (CHIPANLG)


    		 —
    CA-IF4850HS (CHIPANLG)


    		 5 шт SO-8 SOIC8
