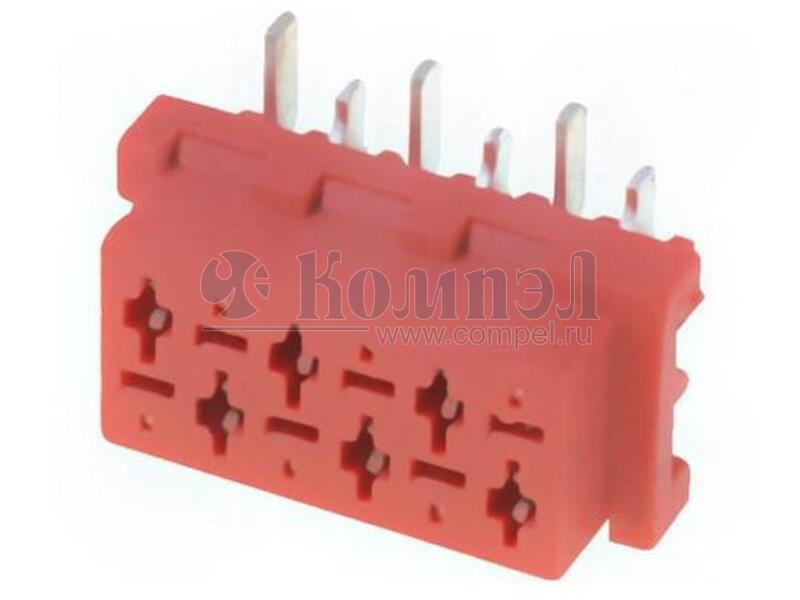

Серия соединителей провод - плата DS1015-06

Общие характеристики

	Раздел	Соединители провод - плата
	Тип разъема
	Расстояние между соседними контактами
	Тип монтажа
	Расположение контактов разъема
	Применение
	Количество рядов контактов

Документация на серию DS1015-06

Reference mating interface pattern 1.27 Staggered pitch x1.5 row distance. NOTES: 1. Materials 1.1 Insulator:Thermoplastic(UL 94V-0). 1.2 Contact:Copper alloy. 1.3 Pickup:Stainless steel. A B 2. Specification 5.00 C 5.35 5.00 5.20 2.1 Temperature range:-40°C~+105°C. 0.10 3. Product number code: 7.00 0.25±0.05 2.54 2.2 Contact resistance:30mΩ max. 2.3 Insulation resistance:1000MΩ min. 2.4 Dielectric withstanding voltage:AC 500V per minute. 1.27 Positions 4 C 2.54±0.05 1.50±0.05 1.50±0.05 1.27±0.05 1.50±0.05 7.50±0.05 0.10 K DIM A DIM B DIM C 6.96 5.46 3.81 Packing type T: Tray R: Tape on reel B: Tube 6 9.50 8.00 8 12.04 10.54 8.89 10 14.58 13.08 11.43 12 17.12 15.62 13.97 14 19.66 18.16 16.51 6: Full matt tin 16 22.20 20.70 19.05 18 24.74 23.24 21.59 Housing color R: Red 20 27.28 25.78 24.13 22 29.82 28.32 26.67 24 32.36 30.86 29.21 6.35 Pickup support X: W/O Mylar S: W/ Mylar Contact plating No. of contacts 04 06 08 10 12 14 16 18 20 22 24 Recommnded PC-Board layout (Component side of board shown) 晨翔电子有限公司 (Series Image-Reference Only) CONNFLY ELECTRONIC CO. LTD

Документация на DS1015-06-16R6SR

<453A5CBDAFC1E8D6BEB9A4D7F7CEC4BCFEBCD05CB9A4B3CCCDBCD6BDA3A83244A3A95CB2FAC6B7BFCDBBA7CDBC5C4453313031352D30362E647767>

Дата модификации: 12.06.2020

Размер: 297.7 Кб

1 стр.

найти DS1015-06.pdf

Товары серии DS1015-06

Наименование	i	Упаковка	Семейство	Контакты
DS1015-06-04R6SR (CONNFLY)		10 шт	Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Red Insulator
DS1015-06-08R6SR (CONNFLY)		в ленте 1000 шт	Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Red Insulator
DS1015-06-10R6SR (CONNFLY)		в ленте 3000 шт	Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Red Insulator
DS1015-06-16R6SR (CONNFLY)			Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Red Insulator
DS1015-06-18R6SR (CONNFLY)			Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Red Insulator
DS1015-06-20R6SR (CONNFLY)			Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Red Insulator
