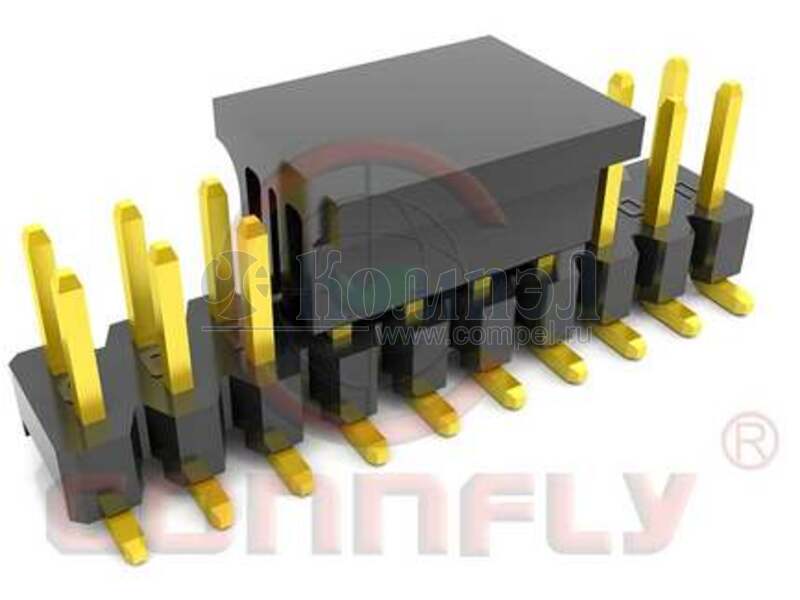

Серия Штыревые соединители DS1025-08

Общие характеристики

	Раздел	Штыревые соединители
	Особенности

Документация на серию DS1025-08

Type 2.00±0.10 DIM A DIM B 1 4.00 6.20 2 3.50 6.20 (N-1)*2.0±0.25 N*2.0±0.5 6.0 N=No.of contacts/2 Pick up 2.00 □0.50 Post Plating level 3A: Level 3A B: Level B 2.00 2.40 1.20 A 4.0 5.5 Notes: Specifications: 1. Contact Resistance: 20mΩ Max. 2. Insulation Resistance: 1000MΩ Min. 3. Dielectric Withstanding Voltage: 500V AC(rms) For 1 Minute. 4. Current Rating:1.5A. 5. Temperature: -40°C~+105°C. Materials: 1. Contact Material: Copper Alloy. 2. Contact Plating: Gold Plating Over Nickel. 3. Insulator Material: High temp,Black,UL94-V0. Product Number Code: Ø0.64 (N-2)*2.0 4.00 B 2.0*(N-1) 2.0*(N-2) 2.00 0.90 B-4.0 B+0.8 Ø0.80 Recommend PCB Layout (Tolerance=±0.05) Dim.A B type 1: Type 1 ...... or A*.*-B*.* Post support S: W/ Post X: W/O Post Packing type B: Tube R: Tape on reel T: Tray Pick up support S: W/ Pick up X: W/O Pick up Housing color B: Black Contact plating 8: Full gold flash Connector type P: Plug No.of contacts 2x2~2x40 晨翔电子有限公司 (Series Image-Reference Only) CONNFLY ELECTRONIC CO. LTD

PDF

Документация на серию DS1025-08

DS1025-08

Дата модификации: 15.01.2021

Размер: 287.7 Кб

1 стр.

найти DS1025-08.pdf

Товары серии DS1025-08

Наименование	Упаковка	Тип	Коммерческое наименование	Количество рядов
DS1025-08-2x04P8BXAS1-B (CONNFLY)				—
DS1025-08-2x05P8BXAS1-B (CONNFLY)				—
DS1025-08-2x05P8BXBX1-B (CONNFLY)				—
DS1025-08-2x07P8BSRX1-B (CONNFLY)				—
DS1025-08-2x08P8BXAX1-B (CONNFLY)				—
DS1025-08-2X10-P8BSRS1-B (CONNFLY)			—
DS1025-08-2x10P8BSRS1-B (CONNFLY)	в ленте 500 шт		—
DS1025-08-2x10P8BSRX1-B (CONNFLY)
DS1025-08-2x10P8BSRX2-B (CONNFLY)			—
DS1025-08-2x10P8BXBX1-B (CONNFLY)
DS1025-08-2x10P8BXBX2-B (CONNFLY)			—
DS1025-08-2X11P8BXBX1-B (CONNFLY)
DS1025-08-2x12P8BSRS1-B (CONNFLY)			—
DS1025-08-2x12P8BSRX1-B (CONNFLY)			—
DS1025-08-2X15P8BXBS1-B (CONNFLY)
DS1025-08-2x17-P8BXAS (CONNFLY)		—	—	—
DS1025-08-2X17P8BXBS1-B (CONNFLY)
DS1025-08-2X2-P8BSRX1-B (CONNFLY)			—
DS1025-08-2X20-P8BXBS1-B (CONNFLY)			—
DS1025-08-2X20P8BSRS1-B (CONNFLY)
DS1025-08-2x20P8BXAS1-B (CONNFLY)				—
DS1025-08-2X20P8BXBS1-B (CONNFLY)
DS1025-08-2X2P8BSRX1-B (CONNFLY)	1 шт
DS1025-08-2X2P8BXTX1-B (CONNFLY)
DS1025-08-2x3-P8BSRX1-B (CONNFLY)		—	—	—
DS1025-08-2X3P8BSBX1-B (CONNFLY)
DS1025-08-2X3P8BSRS1-B (CONNFLY)
DS1025-08-2x3P8BSRX1-B (CONNFLY)	1 шт		—
DS1025-08-2X3P8BXBS1-B (CONNFLY)
DS1025-08-2X3P8BXTX1-B (CONNFLY)
DS1025-08-2X4-P8BXBS1-B (CONNFLY)			—
DS1025-08-2x40-P8BXBX1-B (CONNFLY)		—	—	—
DS1025-08-2X40P8BXAX1-B (CONNFLY)				—
DS1025-08-2x40P8BXBX1-B (CONNFLY) DS1025-08-2x40P8BXAX (CONNFLY)	в линейках 1000 шт
DS1025-08-2x4P8BSRS1-B (CONNFLY)
DS1025-08-2X4P8BSRX1-B (CONNFLY)
DS1025-08-2X4P8BXBS1-B (CONNFLY)	в линейках 74 шт
DS1025-08-2X4P8BXBX1-B (CONNFLY)
DS1025-08-2x5P8BSRS-A4.0-B7.9-B (CONNFLY)			—
DS1025-08-2X5P8BSRS1-B (CONNFLY)
DS1025-08-2X5P8BSRS2-B (CONNFLY)
DS1025-08-2x5P8BSRX-A4.0-B6.5-B (CONNFLY)			—
DS1025-08-2x5P8BSRX-A4.0-B7.9-B (CONNFLY)			—
DS1025-08-2X5P8BSRX1-B (CONNFLY)	в ленте 600 шт
DS1025-08-2X5P8BSRX2-B (CONNFLY)
DS1025-08-2x5P8BXBS1-B (CONNFLY)			—
DS1025-08-2x5P8BXBX1-B (CONNFLY)	в линейках 56 шт
DS1025-08-2X6P8BSRS1-B (CONNFLY)
DS1025-08-2x6P8BSRS2-B (CONNFLY)			—
DS1025-08-2x6P8BSRX1-B (CONNFLY)			—
DS1025-08-2x6P8BSRX2-B (CONNFLY)	1 шт		—
DS1025-08-2x7P8BXBS1-B (CONNFLY)			—
DS1025-08-2X7P8BXBX1-B (CONNFLY)	в линейках 5000 шт
DS1025-08-2x8-P8BXAX (CONNFLY)			—
DS1025-08-2X8-P8BXBS1-B (CONNFLY)			—
DS1025-08-2X8P8BSRS1-B (CONNFLY)
DS1025-08-2X8P8BXBS1-B (CONNFLY)	в линейках 36 шт
DS1025-08-2x8P8BXBX1-B (CONNFLY)				—
