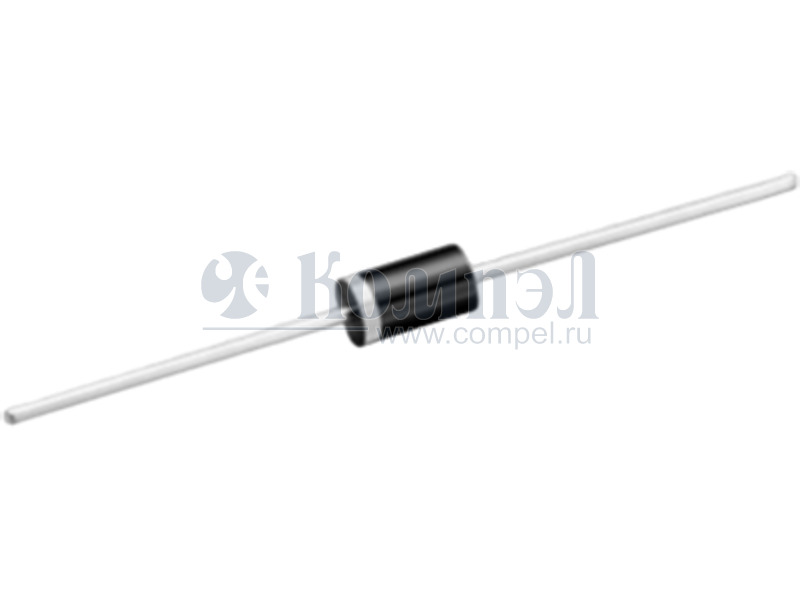

Серия защитных диодов 1.5KE400

DC Components

Общие характеристики

 Раздел Защитные диоды
Рассеиваемая мощность
Пиковая рассеиваемая мощность
Напряжение ограничения (номинальное)
Ток утечки при рабочем напряжении
Количество линий ограничения

Документация на серию 1.5KE400

DC COMPONENTS CO., LTD. RECTIFIER SPECIALISTS R 1.5KE6.8 THRU 1.5KE440CA TECHNICAL SPECIFICATIONS OF TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE RANGE - 6.8 to 440Volts PEAK PULSE POWER - 1500 Watts FEATURES * Glass passivated junction * 1500 Watts Peak Pulse Power capability on 10/1000 µs waveform * Excellent clamping capability * Low zener impedance * Fast response time DO-201AE MECHANICAL DATA * * * * Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: MIL-STD-202E, Method 208 guaranteed Polarity: Color band denotes positive end (cathode) except bidirectional types * Mounting position: Any * Weight: 1.2 gram 1.0(25.4) MIN. .042(1.1) DIA. .040(1.0) .375(9.5) .335(8.5) .220(5.6) DIA. .197(5.0) 1.0(25.4) MIN. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load, For capacitive load, derate current by 20%. Dimensions in inches and (millimeters) DEVICES FOR BIPOLAR APPLICATIONS For Bidirectional use C or CA suffix (e.g. 1.5KE6.8C, 1.5KE440CA). Electrical characteristics apply in both directions SYMBOL VALUE UNITS Peak Pulse Power Dissipation on 10/1000 µs waveform (Note1,FIG.1) PPPM Minimum 1500 Watts Steady State Power Dissipation at T = 75OC Lead Lengths .375"(9.5mm) (Note 2) PM(AV) 5.0 Watts Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load(JEDEC Method) (Note 3) IFSM 200 Amps Maximum Instantaneuos Forwaard Voltage at 50A for Unidirectional only (Note 4) VF 3.5/5.0 Volts TJ , TSTG -55 to + 150 Operating and Storage Temperature Range O C O NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above TA = 25 C per Fig. 2. 2. Mounted on Copper Leaf area of 1.6 X 1.6"( 40 X 40mm ) per Fig. 5 3. 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum. 4. VF = 3.5V max. for devices of V(BR) < = 200V max. and VF = 5.0V max. for devices of V(BR) > 200V. REV-3,MAR,2017 1 www.dccomponents.com PDF
Документация на 1.5KE6.8A PBF

Дата модификации: 02.01.1970

Размер: 42.2 Кб

5 стр.

    Товары серии 1.5KE400

    Наименование i Упаковка Корпус Uраб Uогр(диапазон) Uимп(макс) Тип
    1.5KE400A (DC)


    1.5KE400A/TR13 (YAG)
    1.5KE400A (ONS-FAIR)     		Защитный диод - в ленте 500 шт DO201AE
    1.5KE400C (DC)

    		DO-204AC DO-15
