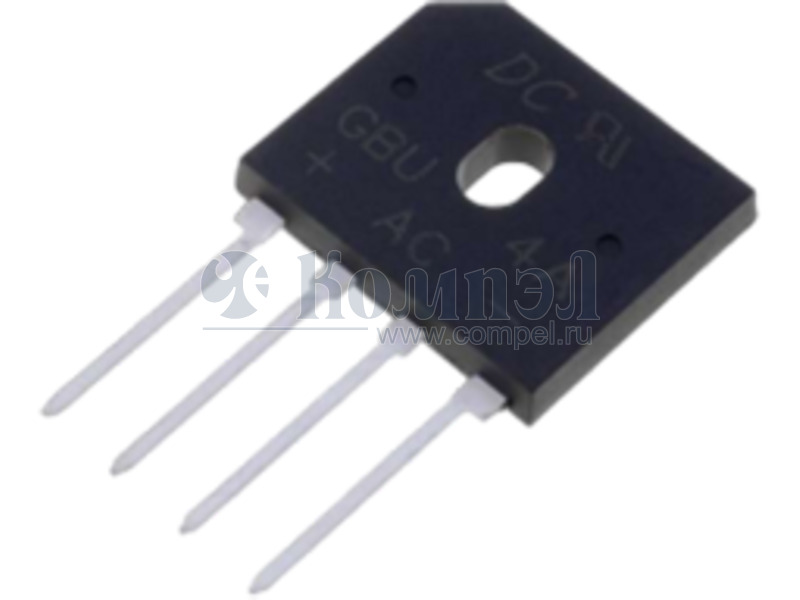

Серия мостовых выпрямителей GBU8

DC Components

Общие характеристики

 Раздел Мостовые выпрямители
Корпус GBU
Конфигурация соединения диодов
Прямой ток диода (средн)
Рабочая температура

Документация на серию GBU8

GBU8A THRU GBU8M DC COMPONENTS CO., LTD. RECTIFIER SPECIALISTS R TECHNICAL SPECIFICATIONS OF SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 8.0 Amperes FEATURES * Ideal for printed circuit board * Surge overload rating: 200 Amperes peak * Glass passivated junction GBU .126(3.2)45 Chamfer Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Terminals: MIL-STD-202E, Method 208 guaranteed Polarity: Symbols molded or marked on body Mounting position: Any .154(3.9) .146(3.7) .232(5.9) .224(5.7) .752(19.1) .720(18.3) AC .106(2.7) .091(2.3) .720(18.3) .681(17.3) .102(2.6) .083(2.1) .047(1.2) .035(0.9) .075(1.9) .055(1.4) * * * * * .142(3.6) .130(3.3) .878(22.3) .858(21.8) MECHANICAL DATA .024(0.6) .016(0.4) .079(2.0) .063(1.6) .209(5.3) SPACING .189(4.8) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Dimensions in inches and (millimeters) SYMBOL GBU8A GBU8B GBU8D GBU8G GBU8J GBU8K GBU8M UNITS Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 Volts Maximum RMS Bridge Input Voltage VRMS 35 70 140 280 420 560 700 Volts VDC 50 100 200 400 600 800 1000 Volts Maximum DC Blocking Voltage Maximum Average Forward Rectified Current @Tc=100 o C (with heatsink Note 2) (without heatsink) Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC Method) I (AV) 8.0 3.2 Amps I FSM 200 Amps VF 1.0 Volts Maximum Forward Voltage Drop per element at 4.0A DC Maximum DC Reverse Current at Rated @T J = 25 oC DC Blocking Voltage per element @T J = 125 oC IR 10 500 I 2t Rating for Fusing (t<8.3ms) I2t 166 Typical Junction Capacitance ( Note1) CJ 60 RθJ C 2.2 TJ -55 to +150 TSTG -55 to +150 Typical Thermal Resistance (Note 2) Operating Temperature Range Storage Temperature Range µAmps A 2 Sec pF 0 C/W 0 C 0 C NOTES : 1.Measured at 1 MHZ and applied reverse voltage of 4.0 volts. 2.Thermal Resistance from Junction to Case per element Unit mounted on 50x50x1.6mm Cu plate heat-sink. REV-3,MAR,2017 1 www.dccomponents.com PDF
Документация на GBU8M

Дата модификации: 02.01.1970

Размер: 42.1 Кб

3 стр.

    Товары серии GBU8

    Наименование i Упаковка Uобр
    GBU8A (DC)


    GBU8A (ONS-FAIR)

    GBU8B (DC)


    GBU8B (ONS-FAIR)

    GBU8D (DC)


    GBU8D (ONS-FAIR)

    		 в линейках 20 шт
    GBU8G (DC)


    GBU8G (ONS-FAIR)

    GBU8J (DC)


    GBU8J (ONS-FAIR)     		Мостовой диодный выпрямитель - [GBU] в линейках 20 шт
    GBU8K (DC)


    GBU8K (ONS-FAIR)

    		 в линейках 20 шт
    GBU8M (DC)


    GBU8M (ONS-FAIR)

    		 в линейках 20 шт
