Серия AC-DC сетевых преобразователей DRL-480W

Delta

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Выходная мощность (ном)
Тип стабилизации
Конструктивное исполнение
Возможности холодный старт, сигнал DC OK, покрытие лаком
Типы защиты перенапряжение, перегрузка, перегрев, КЗ
Количество выходов
Исполнение
Напряжение изоляции вход-выход

Документация на серию DRL-480W

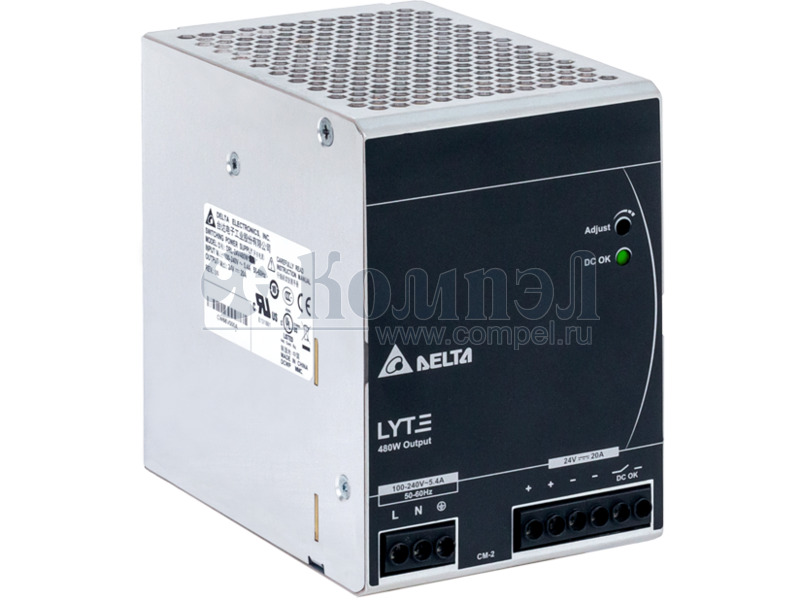

TECHINCAL DATASHEET LYTE DIN Rail Power Supply 24V 480W 1 Phase / DRL-24V480W1A□ Highlights & Features • • • • • • • Universal AC input voltage Built-in constant current circuit for reactive loads Up to 88.0% efficiency Full power from -20°C to +50°C operation at 230Vac @ 5,000 meters or 16,400 feet altitude Built-in DC OK relay contact option available Compliance to SEMI F47 @ 200Vac Conformal coating on PCBAs to protect against common dust and chemical pollutants Safety Standards CB Certified for worldwide use Model Number: DRL-24V480W1A☐ Unit Weight: 1.30 kg (2.86 lb) Dimensions (L x W x D): 123.6 x 85.5 x 128.5 mm *This picture is for reference to DRL-24V480W series only. (4.87 x 3.37 x 5.06 inch) General Description Delta’s LYTE DIN rail power supply series is designed for cost sensitive users who need to fulfill essential features needed for many general industrial applications, without compromising on quality and reliability. The convection-cooled LYTE series will operate between -20°C to +70°C, with full rated power available from -10°C to +50°C at 230Vac. The overcurrent protection is designed to operate in constant current mode, which makes the LYTE series suitable for inductive and capacitive load applications. The product is certified according to safety standards IEC/EN/UL 60950-1 & IEC/EN/UL 62368-1 for Information Technology Equipment (ITE) and UL 508 for Industrial Control Equipment (ICE). Electromagnetic radiated and conducted emissions are compliant to EN 55032, Class B; and, the product is RoHS compliant for environmental protection. Model Information LYTE DIN Rail Power Supply Model Number Input Voltage Range Rated Output Voltage Rated Output Current DRL-24V480W1A☐ 85-264Vac (120-375Vdc) 24Vdc 20.0A Model Numbering DR L– DIN Rail Product Type Output Voltage L – LYTE Series 1 24V 480W 1 A □ Output Power Single Phase Delta Standard A – Without DC OK Contact S – With DC OK Relay Contact All parameters are specified at 25°C ambient and AC input unless otherwise indicated. www.DeltaPSU.com (December 2020, Rev. 05) PDF
Документация на DRL-24V480W1AA

DRL-24V480W1Ax (December 2020, Rev. 05) Technical Datasheet

Дата модификации: 23.12.2020

Размер: 1.08 Мб

15 стр.

TECHINCAL DATASHEET LYTE DIN Rail Power Supply 24V 480W 1 Phase / DRL-24V480W1A□ Highlights & Features • • • • • • • Universal AC input voltage Built-in constant current circuit for reactive loads Up to 88.0% efficiency Full power from -20°C to +50°C operation at 230Vac @ 5,000 meters or 16,400 feet altitude Built-in DC OK relay contact option available Compliance to SEMI F47 @ 200Vac Conformal coating on PCBAs to protect against common dust and chemical pollutants Safety Standards CB Certified for worldwide use Model Number: DRL-24V480W1A☐ Unit Weight: 1.30 kg (2.86 lb) Dimensions (L x W x D): 123.6 x 85.5 x 128.5 mm (4.87 x 3.37 x 5.06 inch) General Description Delta’s Lyte DIN Rail Power Supply series is designed for cost sensitive users who need to fulfill essential features needed for many general industrial applications, without compromising on quality and reliability. The convection-cooled Lyte series will operate between -20°C to +70°C, with full rated power available from -10°C to +50°C at 230Vac. The overcurrent protection is designed to operate in constant current mode, which makes the Lyte series suitable for inductive and capacitive load applications. The product is certified according to safety standards IEC/EN/UL 60950-1 for Information Technology Equipment (ITE) and UL 508 for Industrial Control Equipment (ICE). Electromagnetic radiated and conducted emissions are compliant to EN 55032, Class B; and, the product is fully compliant for environmental protection requirements per RoHS Directive (EU) 2015/863. Model Information LYTE DIN Rail Power Supply Model Number Input Voltage Range Rated Output Voltage Rated Output Current DRL-24V480W1A☐ 85-264Vac (120-375Vdc) 24Vdc 20.0A Model Numbering DR L– DIN Rail Product Type Output Voltage L – LYTE Series 1 24V 480W 1 A □ Output Power Single Phase Delta Standard A – Without DC OK Contact S – With DC OK Relay Contact All parameters are specified at 25°C ambient and AC input unless otherwise indicated. www.DeltaPSU.com (October 2019, Rev. 04) PDF
Документация на DRL-24V480W1AA

DRL-24V480W1Ax (October 2019, Rev. 04) Technical Datasheet

Дата модификации: 08.10.2019

Размер: 1.02 Мб

15 стр.

    Товары серии DRL-480W

    Наименование i Упаковка Выход U1 I1 U вх AC КПД Размер T раб
    DRL-24V480W1AA (DELTA)

    		123.6×85.5×128.5 мм
    DRL-24V480W1AS (DELTA)


    		 123.6×85.5×128.5 мм
    DRL-24V480W1EN (DELTA)


    		 1 шт 123.6×56×116.8 мм
    DRL-24V480W1ENA (DELTA)


    		 — 123.6×56×116.8 мм —
    DRL-48V480W1EN (DELTA)


    		 — 123.6×56×116.8 мм
    DRL-48V480W1ENA (DELTA)


    		 — 123.6×56×116.8 мм —
