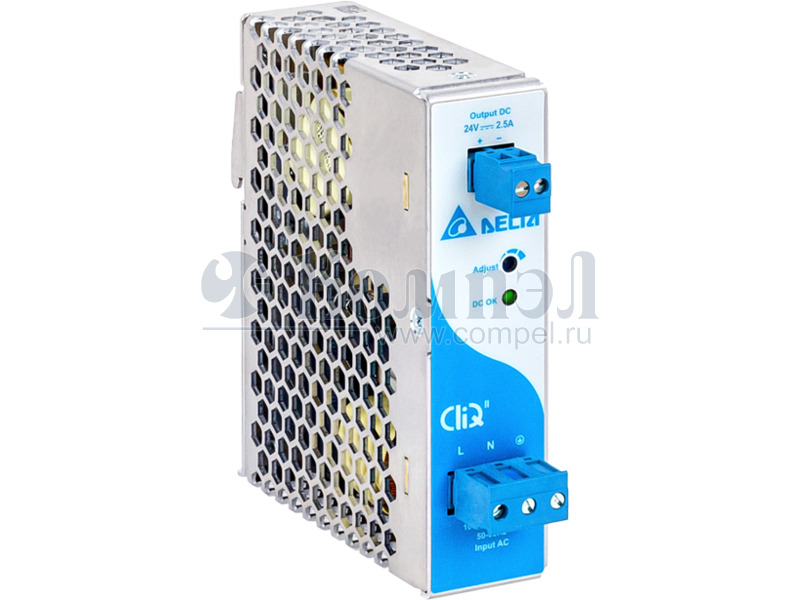

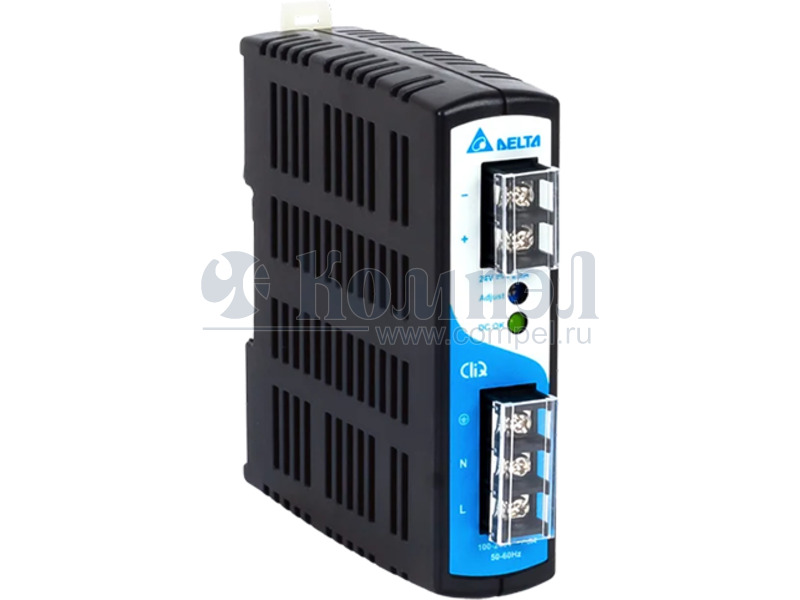

Серия AC-DC сетевых преобразователей DRP-60W

Delta

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Выходная мощность (ном)
Тип стабилизации
Конструктивное исполнение
Типы защиты перенапряжение, перегрузка, перегрев, КЗ
Количество выходов
Исполнение
Напряжение изоляции вход-выход
Входное напряжение DC

Документация на серию DRP-60W

TECHNICAL DATASHEET CliQ DIN Rail Power Supply 12V 60W 1 Phase / DRP012V060W1AA Highlights & Features – – – – – – Universal AC input voltage Power will not de-rate for the entire input voltage range Power Boost of 150% for 3 seconds Full corrosion resistant aluminium chassis Hazardous Locations approval to ATEX and Class I, Div 2 Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections Safety Standards CB Certified for worldwide use Model Number: DRP012V060W1AA Unit Weight: 0.33 kg Dimensions (L x W x D): 121 x 32 x 120 mm General Description The DRP012V060W1AA is part of the CliQ DIN rail power supply series from one of the world’s leading power supply companies, Delta Electronics Group. The rugged metal case has a compact body at only 32mm, which is both shock and vibration resistant according to IEC 60068-2 standard. The product operates within a wide temperature range from -20°C to +80°C. The DRP012V060W1AA features universal AC input voltage range from 85Vac to 264Vac and the power will not de-rate for the entire input voltage range. The single phase power supply unit includes overvoltage, overcurrent, over temperature and short circuit protections. The product features built-in Power Boost of 150% for 3 seconds. Such feature enables reserve power to be always available for reliable startup of loads with high inrush current, thus eliminating the need of a more expensive power supply unit at higher power rating. Another great feature is the conformal coating on the PCBA which allows DRP012V060W1AA to be certified to ATEX and Class I, Div 2 for use in hazardous locations. Model Information CliQ DIN Rail Power Supply Model Number Input Voltage Range Output Voltage Output Current DRP012V060W1AA 85-264Vac (120-375Vdc) 12Vdc 5.00A Model Numbering DR P 012V 060W 1 A A DIN Rail Power Supply Output Voltage Output Power Single Phase CliQ Series Metal Case 1 All parameters are specified at 25°C ambient and AC input unless otherwise indicated. www.DeltaPSU.com (April 2015, Rev. 04) PDF
Документация на DRP012V060W1AA

DRP012V060W1AA (April 2015, Rev. 04) Technical Datasheet

Дата модификации: 20.04.2015

Размер: 1.2 Мб

12 стр.

    Товары серии DRP-60W

    Наименование i Упаковка Выход U1 I1 U вх AC КПД Размер T раб
    DRP012V060W1AA (DELTA)


    		 121×32×120 мм
    DRP024V060W1AA (DELTA)


    		 1 шт 121×32×120 мм
    DRP024V060W1AZ (DELTA)


    		 1 шт 120.6×32×113 мм
    DRP024V060W1BA (DELTA)

    		121×32×125 мм
    DRP024V060W1BN (DELTA)


    		 121×32×125 мм
    DRP024V060W1NY (DELTA)


    		 120.6×32×119.3 мм
    DRP024V060W1NZ (DELTA)


    		 1 шт 120.6×32×119.3 мм
    DRP024V060W3AA (DELTA)


    		 1 шт — 121×32×119.3 мм
    DRP024V060W3BA (DELTA)


    		 121×50×117.3 мм
    DRP024V060W3BN (DELTA)


    		 121×50×117.3 мм
    DRP048V060W1BA (DELTA)


    		 121×32×125 мм
    DRP048V060W1BN (DELTA)

    		121×32×125 мм
