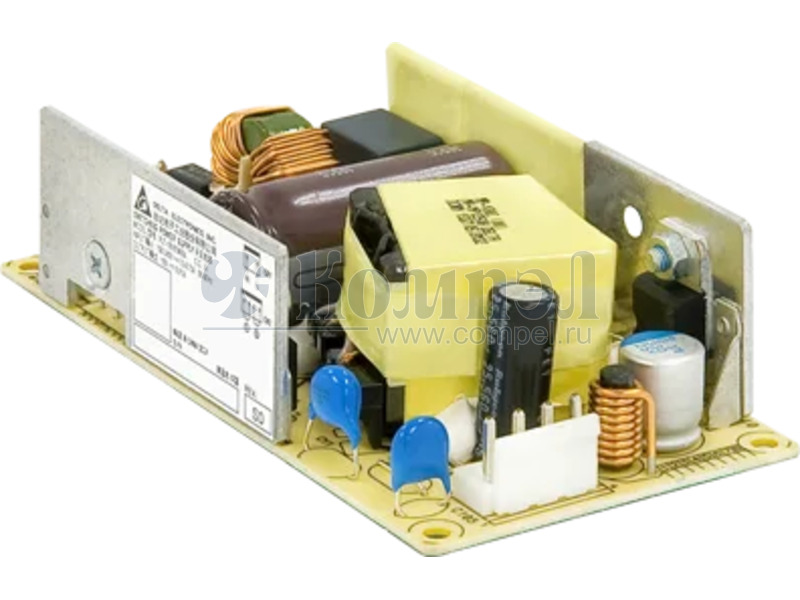

Серия AC-DC сетевых преобразователей PJT-65W

Delta

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Тип стабилизации
Конструктивное исполнение
Типы защиты перенапряжение, перегрузка, перегрев, КЗ
Количество выходов
Исполнение
Входное напряжение AC
Размер 101.6×50.8×30 мм

Документация на серию PJT-65W

TECHNICAL DATASHEET PJT Open Frame Power Supply PJT-65W Series / PJT-□□V65WBA□ PJT Highlights & Features • • • • • • Universal AC input voltage Standard industrial foot print of 2” x 4” Low leakage current < 0.1mA Convection cooled operating temperature range from -10°C to +70°C High MTBF > 700,000 hrs as per Telcordia SR-332 Multiple connector source options Safety Standards CB Certified for worldwide use Model Number: PJT-☐☐V65WBA☐ Unit Weight: 0.13 kg (0.29 lb) Dimensions (L x W x H): 101.6 x 50.8 x 30 mm [2” x 4”] General Description The PJT open frame power supply series offers choices of 12V, 15V, 18V and 24V nominal output voltages. The single output products are designed with small standard industrial foot prints at 2” x 4”. The highly efficient convection cooling designs enable optimum thermal management for high power efficiency. The PJT series of products can operate from -10°C to +70°C across the entire input voltage range of 90 to 264Vac and are certified for safety standard according to IEC/EN/UL 62368-1 and for EMI standard according to EN 55032, Class B. Model Information PJT Open Frame Power Supply Model Number Input Voltage Range Rated Output Voltage Rated Output Current PJT-12V65WBA☐ 90-264Vac 12Vdc 5.00A PJT-15V65WBA☐ 15Vdc 4.20A PJT-18V65WBA☐ 18Vdc 3.61A PJT-24V65WBA☐ 24Vdc 2.71A Model Numbering PJ T– XXV 65W Open Frame Output Voltage Output Power Product Type T – ITE Application 12V (65W series Series 15V model) 18V 24V B A □ Package Type B – Open Frame Family Code A Harness Connector A – JST connector B – Molex connector* C – JWT connector* *Options 1 All parameters are specified at 25°C ambient and AC unless otherwise indicated. www.DeltaPSU.com (October 2020, Rev. 04) PDF
Документация на PJT-12V65WBAA

PJT-65WBAX (Rev.04, October 2020) Technical Datasheet

Дата модификации: 16.11.2020

Размер: 633.4 Кб

9 стр.

    Товары серии PJT-65W

    Наименование i Упаковка P вых Выход U1 I1
    PJT-12V65WBAA (DELTA)


    PJT-12V65WBAB (DELTA)


    PJT-12V65WBAC (DELTA)


    PJT-15V65WBAA (DELTA)


    PJT-15V65WBAB (DELTA)


    PJT-15V65WBAC (DELTA)


    PJT-18V65WBAA (DELTA)

    PJT-18V65WBAB (DELTA)


    PJT-18V65WBAC (DELTA)


    PJT-24V65WBAA (DELTA)


    PJT-24V65WBAB (DELTA)


    PJT-24V65WBAC (DELTA)
