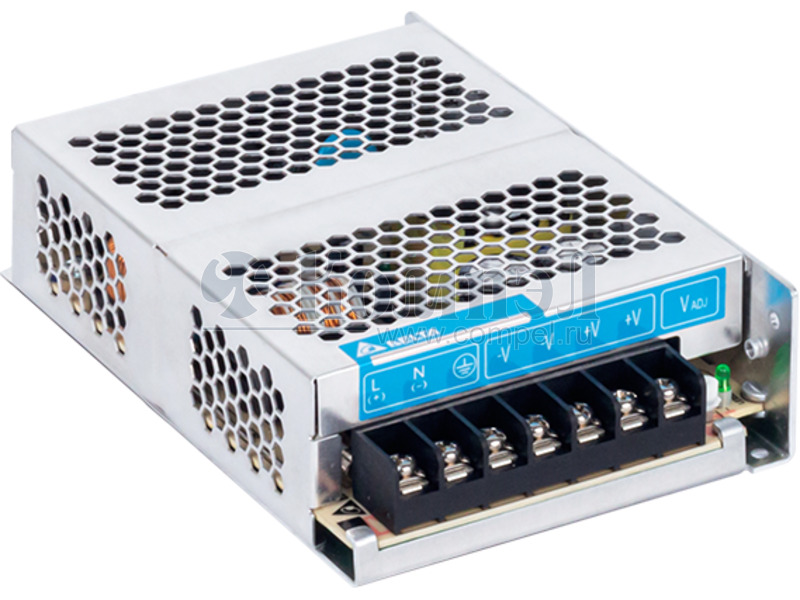

Серия AC-DC сетевых преобразователей PMC-100W

Delta

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Серия
Выходная мощность (ном)
Тип стабилизации
Конструктивное исполнение
Типы защиты перенапряжение, перегрузка, перегрев, КЗ
Исполнение
Входное напряжение AC

Документация на серию PMC-100W

TECHNICAL DATASHEET PMC Panel Mount Power Supply 12V 100W 1 Phase / PMC-12V100W1A□ PMC Highlights & Features • • • • • • Universal AC input voltage range Power will not de-rate for the entire input voltage range Full corrosion resistant aluminium casing Conforms to harmonic current IEC/EN 61000-3-2, Class A High MTBF > 700,000 hrs per Telcordia SR-332 Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B Safety Standards CB Certified for worldwide use Model Number: PMC-12V100W1A☐ Unit Weight: 0.45 kg (0.99 lb) Dimensions (L x W x H): 158 x 97x 38 mm (6.22 x 3.82 x 1.50 inch) General Description Delta’s PMC series of panel mount power supply offers a nominal output voltage of 12V, a wide temperature range from -10°C to +70°C and a highly dependable minimum hold-up time. The state-of-the-art design is made to withstand harsh industrial environments. What makes the product stands out from the crowd is its lightweight full aluminum body design, which can withstand shock and vibration according to IEC 60068-2. The PMC series also offers overvoltage and overload protection. Using a wide input voltage range design, it is compatible worldwide. The input also includes DC operating voltage from 125-375Vdc. Best of all, this excellent design and quality does not come with a big price tag. Model Information PMC Panel Mount Power Supply Model Number Input Voltage Range Rated Output Voltage Rated Output Current PMC-12V100W1A☐ 85-264Vac (125-375Vdc) 12Vdc 8.34A Model Numbering PM C– 12V 100W 1 A □ Panel Mount Product Type C – Enclosed Output Voltage Output Power Single Phase No PFC Connector Type A – Terminal Block J – IP20 Connector* L – Front Face* H – Harness* *Options A 1 J L H All parameters are specified at 25°C ambient and AC input unless otherwise indicated. www.DeltaPSU.com (November 2020, Rev. 05) PDF
Документация на PMC-12V100W1AA

PMC-12V100W1Ax (November 2020, Rev. 05) Technical Datasheet

Дата модификации: 10.11.2020

Размер: 1.36 Мб

14 стр.

TECHNICAL DATASHEET PMC Panel Mount Power Supply 12V 100W 1 Phase / PMC-12V100W1AA PMC Highlights & Features – Universal AC input range from 85Vac to 264Vac without power de-rating – Full Aluminum casing for light weight and corrosion resistant handling – High MTBF > 700,000 hrs. as per Telcordia SR-332 – Overvoltage / Overcurrent / Over Temperature Protections Safety Standards CB Certified for worldwide use Model Number: PMC-12V100W1AA Unit Weight: 0.45 kg Dimensions (H x W x D): 158 mm x 97 mm x 38 mm General Description The new Panel Mount Power Supply is the latest offering from one of the world’s largest power supply manufacturers and solution providers - Delta. The product range offers a nominal output voltage of 12V, a wide temperature range from -10°C to +70°C and a highly dependable minimum holdup time. The state-of-the-art design is made to withstand harsh industrial environments. What makes the product stands out from the crowd is its lightweight full aluminum body design which can withstand shock and vibration according to IEC60068-2. Delta’s Panel Mount Power Supply also offers overvoltage and overload protection. Using a wide input voltage range design, it is compatible worldwide. The input also includes DC operating voltage from 125-375Vdc. Best of all, this excellent design and quality does not come with a big price tag. Model Information PMC Panel Mount Power Supply Model Number Input Voltage Range Output Voltage Output Current PMC-12V100W1AA 85-264Vac (125-375Vdc) 12Vdc 8.33A Model Numbering PMC 12V 100W 1 A A PMC Series Output Voltage Output Power Single Phase Delta Standard Terminal Block Connector 1 All parameters are specified at 25°C ambient unless otherwise noted. www.DeltaPSU.com (March 2013, Rev. 00) PDF
Документация на PMC-12V100W1AA

Дата модификации: 04.03.2013

Размер: 983.1 Кб

10 стр.

    Товары серии PMC-100W

    Наименование i Упаковка Выход U1 I1 Выходов Размер
    PMC-12V100W1AA (DELTA)

    		158×97×38 мм
    PMC-12V100W1AH (DELTA)


    		 158×97×38 мм
    PMC-12V100W1AL (DELTA)


    		 158×97×38 мм
    PMC-24V100W1AA (DELTA)

    		158×97×38 мм
    PMC-24V100W1AL (DELTA)


    		 158×97×38 мм

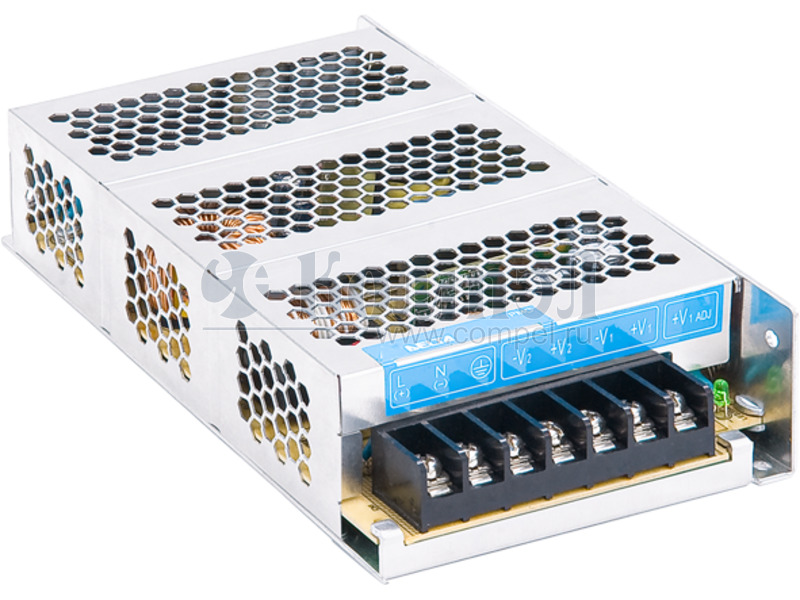

    PMC-DSPV100W1A (DELTA)

    		178×97×38 мм
