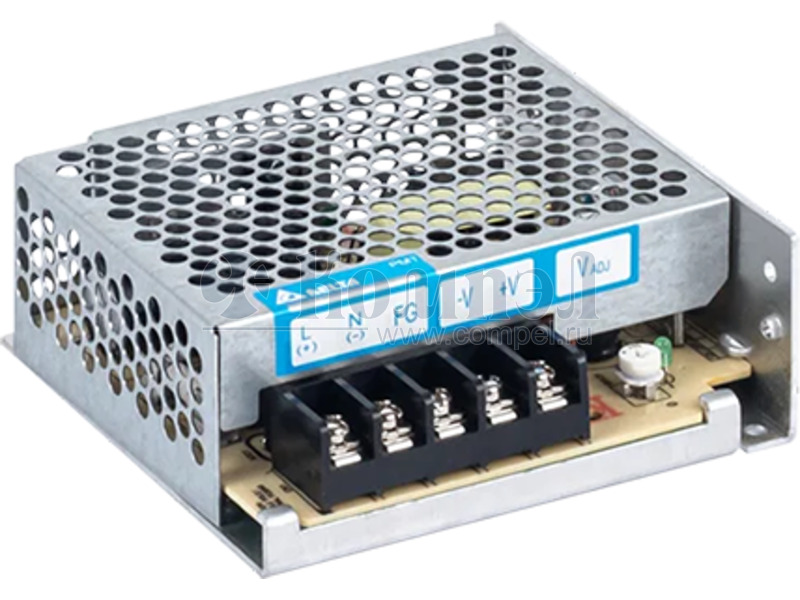

Серия AC-DC сетевых преобразователей PMT-50W

Общие характеристики

	Раздел	AC-DC сетевые преобразователи
	Тип стабилизации
	Конструктивное исполнение
	Типы защиты	перенапряжение, перегрузка, перегрев, КЗ
	Количество выходов
	Исполнение

Документация на серию PMT-50W

TECHNICAL DATASHEET PMT Panel Mount Power Supply 12V 50W 1 Phase / PMT-12V50W1A□ PMT Highlights & Features – – – – – Universal AC input range Power will not de-rate from input voltage 90Vac to 264Vac High MTBF > 700,000 hrs. per Telcordia SR-332 Short Circuit / Overvoltage / Overload / Over Temperature Protections Versatile connector options (Terminal Block, Front Face, Harness) Safety Standards CB Certified for worldwide use Model Number: PMT-12V50W1A☐ Unit Weight: 0.23 kg Dimensions (L x W x D): 98 x 98 x 38 mm General Description The new PMT series of panel mount power supplies is the latest offering from one of the world’s largest power supply manufacturers and solution providers - Delta. The first range of PMT products will offer a nominal output voltage of 12V with a wide operating temperature range from -10°C to +70°C and can withstand shock and vibration requirements (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). In addition to features like overvoltage and overload protections, Delta’s PMT series of panel mount power supplies is unlike many other brands in the same price level. The PMT series is designed for cost competitive markets without compromising the quality of the components and product specifications. The series of products has an expected life time of 10 years and will have no output power de-rating from 90Vac to 264Vac. This versatile series has three different connector options (Terminal Block, Front Face and Harness) and can also be converted into L Frame (PML) or Open Frame (PMB) type of power supplies to satisfy different application needs. Model Information PMT Panel Mount Power Supply Model Number Input Voltage Range Output Voltage Output Current PMT-12V50W1A☐ 90-264Vac 12Vdc 4.17A Model Numbering CC Code** PM □– Panel Mount Product Type Output Voltage Output Power Single Phase T – Enclosed L – L Frame* B – Open Frame* 12V 50W 1 A □ □ No PFC Connector Type A – Terminal Block G – Front Face* H – Harness* Blank – Without connector cover A – With connector cover *Options **For Terminal Block 1 All parameters are specified at 25°C ambient unless otherwise indicated. www.DeltaPSU.com (January 2015, Rev. 02)  PDF

Документация на PMT-12V50W1AA

PMT-12V50W1AX (January 2015, Rev. 02) Technical Datasheet

Дата модификации: 09.01.2015

Размер: 963.9 Кб

11 стр.

• найти PMT-50W.pdf

Товары серии PMT-50W

Наименование	i	Упаковка	P вых	Выход	U1	I1	U вх AC	Размер
PMT-12V50W1AA (DELTA)		1 шт						98×98×38 мм
PMT-12V50W1AAB (DELTA)								98×98×38 мм
PMT-12V50W1AG (DELTA)								98×98×38 мм
PMT-12V50W1AH (DELTA)								98×98×38 мм
PMT-12V50W2BA (DELTA)								99×82×29 мм
PMT-12V50W2BAB (DELTA)								99×82×29 мм
PMT-15V50W1AA (DELTA)								98×98×38 мм
PMT-15V50W1AG (DELTA)								98×98×38 мм
PMT-15V50W1AH (DELTA)								98×98×38 мм
PMT-15V50W2BA (DELTA)								99×82×29 мм
PMT-15V50W2BAB (DELTA)								99×82×29 мм
PMT-24V50W1AA (DELTA)								98×98×38 мм
PMT-24V50W1AAA (DELTA)								98×98×38 мм
PMT-24V50W1AAB (DELTA)								98×98×38 мм
PMT-24V50W1AG (DELTA)								98×98×38 мм
PMT-24V50W1AH (DELTA)								98×98×38 мм
PMT-24V50W2BA (DELTA)								99×82×29 мм
PMT-24V50W2BAB (DELTA)								99×82×29 мм
PMT-30V50W2BA (DELTA)								99×82×30 мм
PMT-30V50W2BAB (DELTA)								99×82×30 мм
PMT-36V50W2BA (DELTA)								99×82×29 мм
PMT-36V50W2BAB (DELTA)								99×82×29 мм
PMT-48V50W2BA (DELTA)								99×82×29 мм
PMT-48V50W2BAB (DELTA)								99×82×29 мм
PMT-5V50W1AA (DELTA)								98×98×38 мм
PMT-5V50W1AG (DELTA)								98×98×38 мм
