Серия кварцевых резонаторов HC-49UX

ECS Inc. Int.

Общие характеристики

	Раздел	Кварцевые резонаторы
	Стабильность при 25°C
	Стабильность в рабочем температурном диапазоне
	Рабочая температура

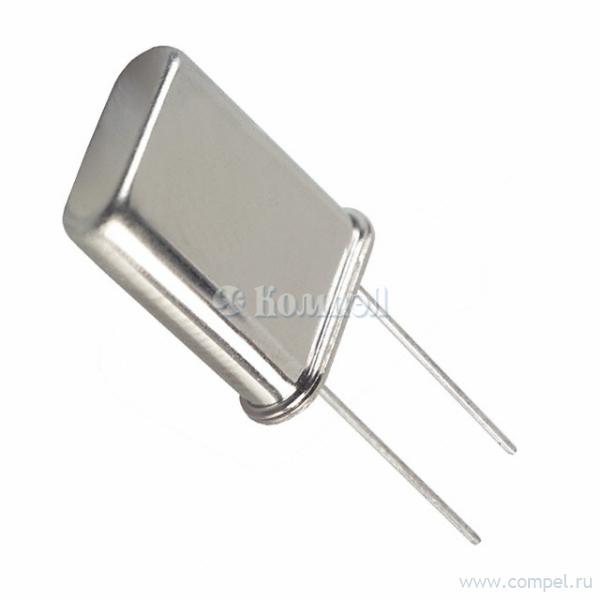

	Размер	11.35×4.65×13.46 мм

Документация на серию HC-49UX

HC-49UX QUARTZ CRYSTAL The HC-49UX is an “AT” cut resistance weld type Thru Hole quartz crystal. OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS HC-49UX QUARTZ CRYSTAL PARAMETERS CONDITIONS HC-49UX MIN Frequency Fo MHz @ +25°C ± 30 ppm -10 ~ +70°C ± 50 ppm Shunt Capacitance Co 7 pF Load Capacitance Specify in P/N Series pF 1.0 mW Frequency Stability* Cost Effective Excellent Aging “AT” Cut Crystal Wide Frequency Range PB Free/RoHS Compliant MSL 1 MAX 100.000 Frequency Tolerance* • • • • • • TYP UNITS Drive Level 1.800 10 20 DL Operating Temperature* Topr -10 +70 °C Storage Temperature Tstg -55 +125 °C ±5 ppm Aging (First Year) @ +25°C ±3°C Frequency (MHz) 1.800 ~ 1.999 2.000 ~ 2.399 2.400 ~ 2.999 3.000 ~ 3.199 3.200 ~ 3.699 3.700 ~ 4.199 4.200 ~ 4.899 4.900 ~ 4.999 5.000 ~ 5.999 6.000 ~ 7.999 8.000 ~ 9.999 10.000 ~ 12.499 12.500 ~ 15.999 16.000 ~ 30.000 30.000 ~ 100.000 DIMENSIONS (mm) ESR Ω Max. 750 500 300 200 120 100 70 55 50 40 35 30 25 20 40 Mode of Osc. Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental 3rd Overtone Figure 1) Side and Bottom PART NUMBERING GUIDE: Example ECS-200-20-1X ECS - FREQUENCY ABBREVIATION ECS 200 = 20.000 MHz See P/N Guide LOAD CAPACITANCE 20 = 20 pF S = Series * Specify available options in P/N. † Contact ECS for availability over extended temp range. PACKAGE AVAILABLE OPTIONS Tolerance 1X = HC-49UX Blank = Std A = ± 25 ppm J = ± 20 ppm R = ± 15 ppm C = ± 10 ppm Stability Blank= Std D= ±100 ppm E = ± 50 ppm G = ± 30 ppm H = ± 25 ppm T = ± 20 ppm † W = ±15 ppm † K = ± 10 ppm † PACKAGING Temp Range Blank= Std L = -10 ~ +70°C M = -20 ~ +70°C Y = -30 ~ +85°C N = -40 ~ +85°C P = -40 ~ +105°C S = -40 ~ +125°C U = -55 ~ +125°C Bulk Rev.2017 15351 West 109th Street | Lenexa, KS 66219 | Phone: 913.782.7787 | Fax: 913.782.6991 | www.ecsxtal.com

PDF

Документация на ECS-121-S-1X

Дата модификации: 23.06.2020

Размер: 308.3 Кб

2 стр.

HC-49UX Cost effective Excellent Aging "AT" cut crystal Wide frequency range Pb Free/RoHS Compliant Quartz Crystal The HC-49UX is an "AT" cut resistance weld type Thru Hole quartz crystal. OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range Frequency Tolerance Frequency Stability ref @ 25°C Shunt Capacitance Load Capacitance (CL) Drive Level Operating Temperature Storage Temperature Aging (First Year) HC-49UX CONDITIONS MIN fo 1.800 at +25°C Standard -10 to +70°C Co Specify in P/N 10 Standard -10 -55 @ +25°C ±3°C UNITS TYP MAX 20 100.00 ± 30 ± 50 7 Series 1.0 +70 +125 ±5 MHz ppm ppm pF pF mW °C °C ppm EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION FREQUENCY RANGE (MHz) MODE OF OSC MAX ESR Ω FREQUENCY RANGE (MHz) MODE OF OSC MAX ESR Ω 1.800 ~ 1.999 Fundamental 750 5.000 ~ 5.999 Fundamental 50 2.000 ~ 2.399 Fundamental 500 6.000 ~ 7.999 Fundamental 40 2.400 ~ 2.999 Fundamental 300 8.000 ~ 9.999 Fundamental 35 3.000 ~ 3.199 Fundamental 200 10.000 ~ 12.499 Fundamental 30 3.200 ~ 3.699 Fundamental 120 12.500 ~ 15.999 Fundamental 25 3.700 ~ 4.199 Fundamental 100 16.000 ~ 30.000 Fundamental 20 4.200 ~ 4.899 Fundamental 70 30.000 ~ 100.000 3rd Overtone 40 4.900 ~ 4.999 Fundamental 55 PACKAGE DIMENSIONS (mm) Figure 1) Side and Bottom views PART NUMBERING GUIDE: Example ECS-200-20-1X Custom Options ECS - Frequency Abbreviation - Load Capacitance - Package 200 = 20.000 MHz See P/N Guide 1105 South Ridgeview Road 20 =20 pF S=Series z 1X = HC-49UX Olathe, KS 66062 z Tolerance A= ±25 ppm C= ±10 ppm Stability D= ±100 ppm E= ±50 ppm G= ±30 ppm H= ±25 ppm K= ±10 ppm Phone: 913.782.7787 z Temp Range L= -10 ~ +70°C M= -20 ~ +70°C N= -40 ~ +85°C P= -40 ~ +105°C S= -40 ~ +125°C U= -55 ~+125°C Fax: 913.782.6991 z www.ecsxtal.com

PDF

Документация на серию HC-49UX

HC-49UX.tds

Дата модификации: 09.02.2008

Размер: 146.2 Кб

1 стр.

найти HC-49UX.pdf
