Серия аккумулятора литий-ионного (Li-Ion) LIR103450

Общие характеристики

	Раздел	Аккумуляторы литий-ионные (Li-Ion)
	Типоразмер
	Тип батареи
	Напряжение номинальное
	Ёмкость номинальная
	Температура рабочая
	Ток разряда стандартный

Документация на серию LIR103450

EE MB B AT TE RY L IR 10 345 0A Lith i u m Io n Batt e ry Brief D atasheet 1 Basic Specification 3.7V Nominal Voltage Nominal Capacity 1800mAh (0.2C discharge) Internal Resistance ≤5 0 mohms Maximum Charge Current 1C Maximum Discharge Current 1C Charge Method CC/CV (Constant Current/Constant Voltage) 0.5C for 5hrs; 1.0C for 2.5hrs Charge Voltage 4.20V Discharge cut-off voltage 3.0V Operation Temperature Charge 0 C to 45 C Discharge -20 C to 55 C Storage Temperature -5 C to 35 C Cycle life 300 Cycles Weight Approx.41.2g Voltage of Shipment 3.70V-3.90V (about 50% capacity) *1C =1 Capacity *”A” stands for Aluminium case 2 34.0 +0 -0.5 MAIN FEATURES +0 -0.5 Long shelf-life and low self-dischage rate. Easily customized, Energy density, High capacity. WARNING 50.0 3 +0 10.5 -0.5 Do not overcharge, force charge, short circuit, disassemble, deform, heat or place the battery near a direct flame. Any of the above actions could cause it to ignite, explode or become damaged. Keep this battery out of the reach of children. When storing the battery or throwing it away, be sure to cover with tape. Unit:mm Note: Any representations in this brochure concerning performance, are for informational purposes only and are not construed as warranties either expressed or implied, of future performance. Http://eemb.com Global@eemb.com  PDF

Документация LIR103450A

LIR103450A

Дата модификации: 30.11.-1

Размер: 29.9 Кб

1 стр.

• найти LIR103450.pdf

Товары серии LIR103450

Наименование	i	Упаковка	Тип выводов	I макс.	R внутр.	Размер	I имп.
LIR103450A (EEMB)		100 шт				50×34×10.5 мм	—

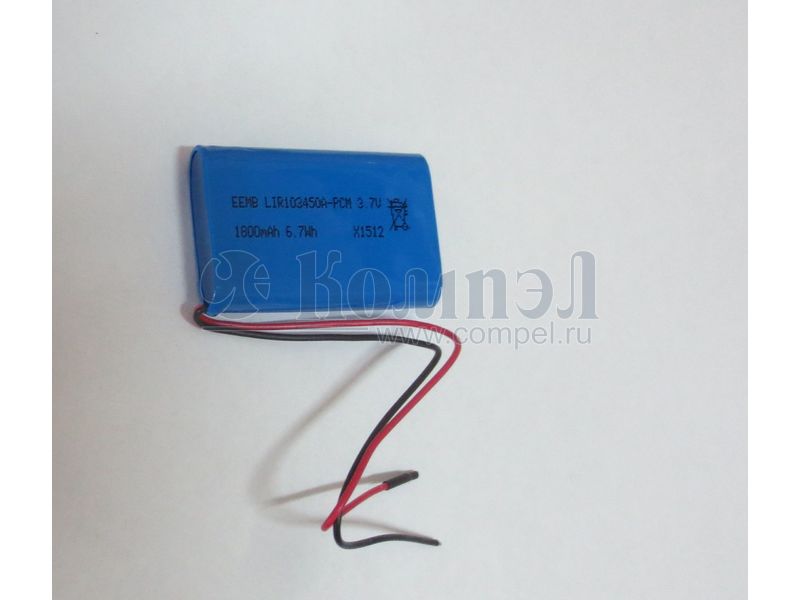

LIR103450A-PCB-LD (EEMB)						34×10 мм
LIR103450A-PCB-LD-A00359 (EEMB)		в коробках 216 шт				50×34×10 мм
