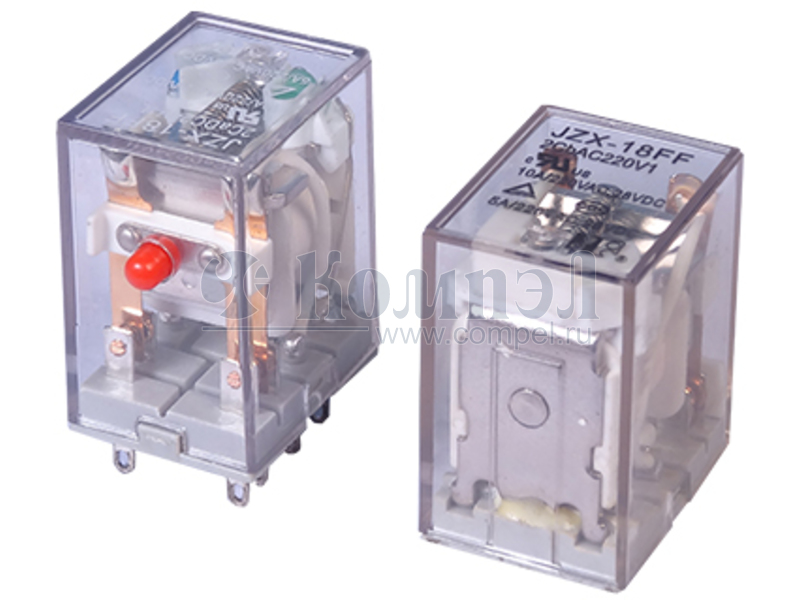

Серия Электромеханических реле JZX-18FF

Общие характеристики

	Раздел	Реле электромеханические
	Тип тока катушки
	Номинальный ток коммутации
	Коммутируемое напряжение DC (макс)
	Коммутируемое напряжение AC (пиковое)
	Напряжение изоляции катушка-контакты
	Рабочая температура
	Применение
	Магнитная система катушки

Документация на серию JZX-18FF

JZX-18FF C E158859 R50126379 09002028961 (Wash tight) 28 21.5 35.5 US 28 21.5 36.2 Features Small size, light weight, heavy reverse power. Optional mounting ways. Firm structure, strong anti-shock & anti vibration. Suitable for automatic control, telecommunication equipment, household electrical appliances and machinery electrical facilities. Ordering Information JZX-18FF 2C a DC12V 1 L 1 2 3 4 5 6 1 Part number JZX-18FF 2 Contact arrangement 2C:2C 3C:3C 4C:4C 3 Terminal a: inserting type b: PCB type 4 Coil rated Voltage(V) AC:6,12,24,36,48,110,120,220 DC:6,12,24,36,48,110 5 Cover 1:1Mode 2:2 Mode 6 Coil transient suppression L:with LED D:with diode LD:with LED & diode NIL:standard Contact Data Contact Arrangement 2C (DPDT (B-M) Contact Material Contact Rating (Resistive) Max. Switching Power Max. Switching Voltage Contact Resistance Operation al Electrical Life Mechanical AgCdO Ag Alloy 2C&3C:5A,7A/220VAC,28VDC; 7A/250VAC Heavy Load:10A/220VAC,28VDC 4C:3A/220VAC,28VDC; Heavy Load:5A/220VAC,28VDC 280W 2500VA 150VDC 300VAC Max.Switching Current:10A 50m Item 4 .12 of IEC 61810-7 3A:5 105; 5A:2 105 ;7A 10A:1 105 Item 4.30 of IEC 61810-7 2 107 Heavy load:1 107 Item 4.31 of IEC 61810-7 3C (3PDT (B-M) 4C (4PDT(B-M)) Coil Parameter(DC) Dash numbers 006-900 012-900 024-900 036-900 048-900 110-900 Coil voltage V Rated Max. 6 12 24 36 48 110 6.6 13.2 26.4 39.6 52.8 121 Coil resistance 10% 40 160 640/650 1500 2600 11000 Rated current mA 150 75 36.9 24.5 18.5 10.0 Pick-up Drop-out voltage voltage V(max) V(min) (80%of rated (10%of rated Voltage) voltage) 4.8 9.6 19.2 28.8 38.4 88.0 0.6 1.2 2.4 3.6 4.8 11.0 Coil power 0.9W Operate time ms Release time ms 25 25  PDF

Документация на серию JZX-18FF

ͼÐÎ1

Дата модификации: 20.04.2022

Размер: 382.1 Кб

3 стр.

• найти JZX-18FF.pdf

Товары серии JZX-18FF

Наименование	i	Упаковка	Конфиг	Uкатушки	Pупр(max)	Размер	Монтаж
JZX-18FF-2C-b-AC220V-1 (FORWARD)						28×21.5×36.2 мм
JZX-18FF-4C-a-AC220V-1L (FORWARD)						28×21.5×35.5 мм
JZX-18FF-4C-b-AC220V1L (FORWARD)						28×21.5×36.2 мм
JZX-18FF2CaAC110V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC110V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC110V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC110V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC110V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC110V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC110V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC110V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC120V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC120V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC120V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC120V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC120V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC120V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC120V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC120V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC12V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC12V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC12V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC12V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC12V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC12V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC12V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC12V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC220V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC220V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC220V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC220V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC220V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC220V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC220V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC220V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC24V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC24V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC24V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC24V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC24V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC24V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC24V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC24V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC36V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC36V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC36V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC36V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC36V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC36V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC36V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC36V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC48V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC48V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC48V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC48V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC48V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC48V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC48V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC48V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC6V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC6V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC6V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC6V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC6V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC6V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC6V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaAC6V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC110V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC110V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC110V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC110V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC110V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC110V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC110V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC110V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC12V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC12V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC12V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC12V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC12V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC12V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC12V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC12V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC24V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC24V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC24V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC24V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC24V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC24V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC24V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC24V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC36V1 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC36V1D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC36V1L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC36V1LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC36V2 (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC36V2D (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC36V2L (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC36V2LD (FORWARD)						28×21.5×35.5 мм	—
JZX-18FF2CaDC48V1 (FORWARD)						28×21.5×35.5 мм	—
