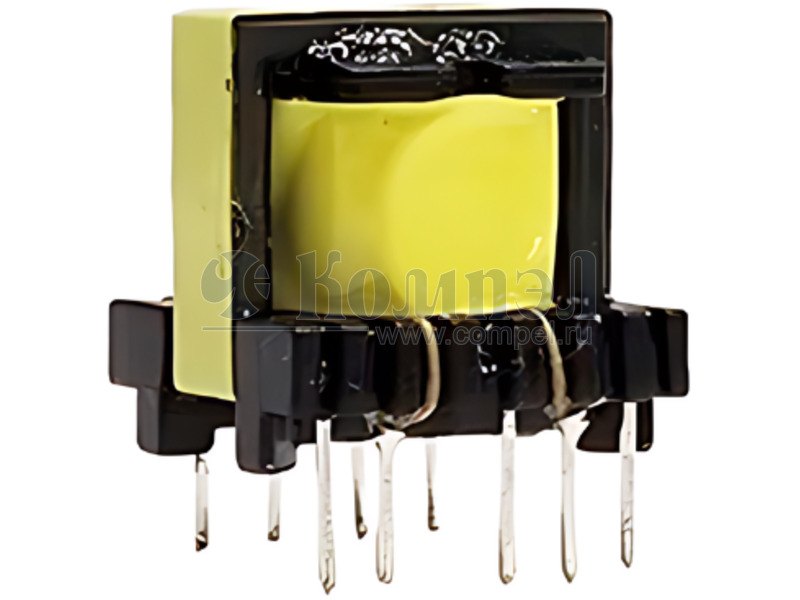

Серия трансформаторов FAT74XXX (EE16)

Fuantronics

Общие характеристики

 Раздел Трансформаторы

Документация на серию FAT74XXX (EE16)

P/N: FAT74000 HS o R Outline Dimensions(Unit:mm) 18.0 Max 16.0 Max 6 18.5 Max 7 5 4.0±0.5 7 www.fuantronics.net Electronical Schematic 6 7 8 7 4 Stereogram 2 Ø0.60±0.1 Side view Orthographic view Wdg3 10 6 10 Wdg1 9 Wdg4 Wdg2 10 1 " " Dotted terminal REMARK: 2.70 1 7 6 FAT74000 YYWW 12.2 1 6 10 Pri 1. Fixed Core With 2Ts Tape. 2. Remove pin3. 3. Product vacuum impregnation. Top view Sec General Properties: 7 3.50 Operating Temperature:-40°C to +105°C. Storage Temperature:-25°C to +85°C. Insulation Class:B. Bottom view Wave Soldering Electrical Characteristics PRE-HEATING Inductance : L4-6= 3.90mH ±10%,at 1KHz,0.3V. D.C.Resistance : 1-2= 1.10 ohms Max. 4-6= 2.75 ohms Max. 7-8= 0.70 ohms Max. 9-10= 0.07 ohms Max. Turns Ratio : Wdg1:Wdg2:Wdg3:Wdg4=1:0.116:0.138:0.058±2%,at 20KHz,1V. Hipot : Pri-Sec : 4000VAC/5mA/2S. Pri&Sec-Core : 1500VAC/5mA/2S. Pri-Aux : 1500VAC/5mA/2S. Temperature °C 10 SOLDERING NATURAL COOLING 260 245 150 Cver 2 min Gradual Cooling Within 10 sec Note： 1.Never Contact the ceramic with the iron tip； 2.1.0mm tip diameter(max). Tianchang Fuan Electronic Co Ltd 00 Release of the new edition. Beson 2020.08.04 REV DESCRIPTION APPD DATE www.fuantronics.net TEL: +86-550-7814888 FAX:+86-550-7831133 Make: Qiumei.Liu Tolerances unless otherwise specified: Checked: Beson.zhan (.X)±0.50 (.XX)±0.25 Approved: Anson.zhan Unit of measurement: mm DRAWING TITLE EE16 FLYBACK TRANSFORMER Material Number: A2174000S000 Customer P/N: Document/Rev: 1011031/00 Specification Sheet: 1 of 2 Date of Recognition: Aug./04/2020 PDF
Документация на FAT74000

FAT74000

Дата модификации: 04.05.2022

Размер: 1.57 Мб

2 стр.

    Товары серии FAT74XXX (EE16)

    Наименование i Упаковка
    FAT74000 (FUAN)

    FAT74001 (FUAN)


    FAT74002 (FUAN)


    FAT74003 (FUAN)


    FAT74010 (FUAN)

    FAT74014 (FUAN)


    FAT74015 (FUAN)

    FAT74020 (FUAN)


    FAT74021 (FUAN)


    FAT74023 (FUAN)


    FAT74030 (FUAN)


    FAT74032 (FUAN)


    FAT74043 (FUAN)


    FAT74050 (FUAN)


    FAT74060 (FUAN)


    FAT74070 (FUAN)


    FAT74080 (FUAN)

    		1 шт
    FAT74081 (FUAN)


    FAT74082 (FUAN)


    		 1 шт
    FAT74090 (FUAN)


    FAT74091 (FUAN)


    FAT74092 (FUAN)


    FAT74093 (FUAN)


    FAT74094 (FUAN)


    FAT74095 (FUAN)
