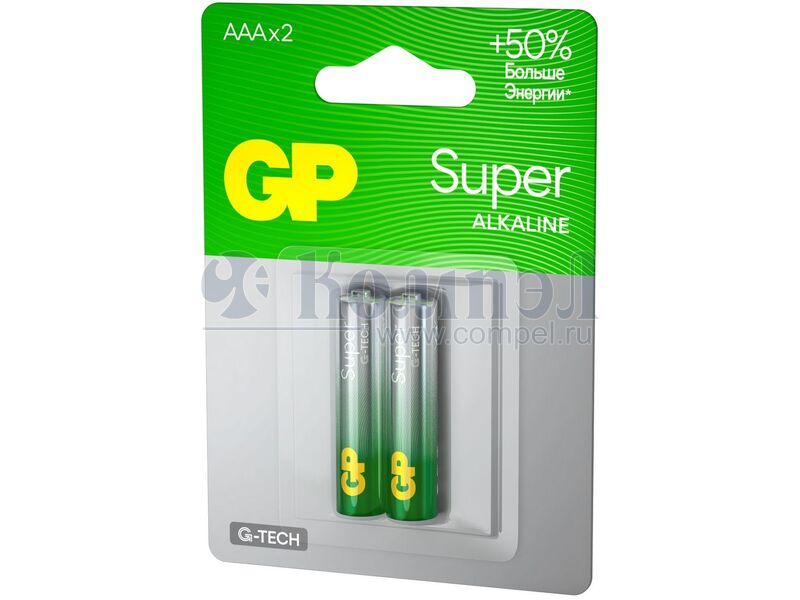

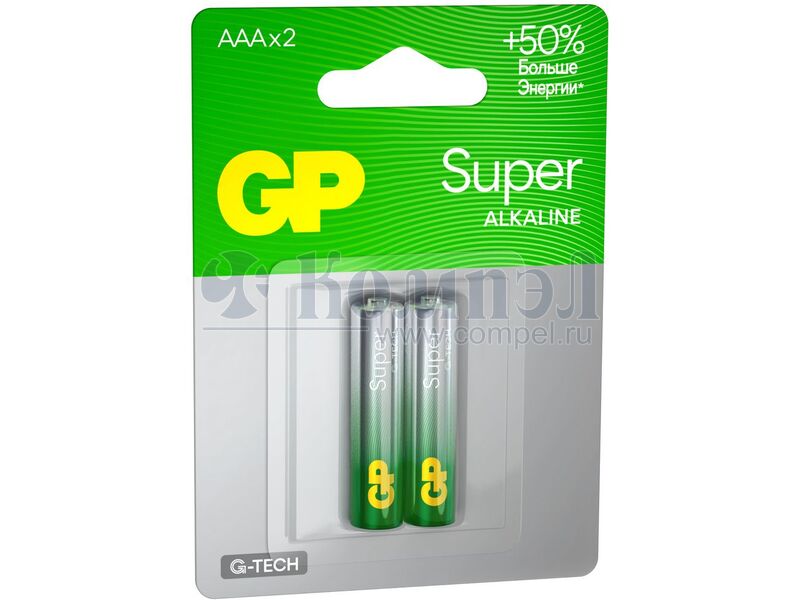

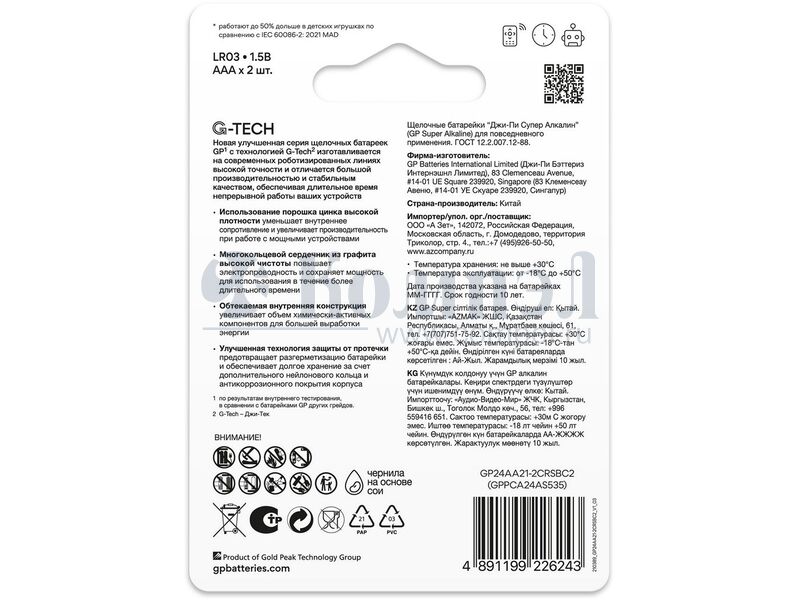

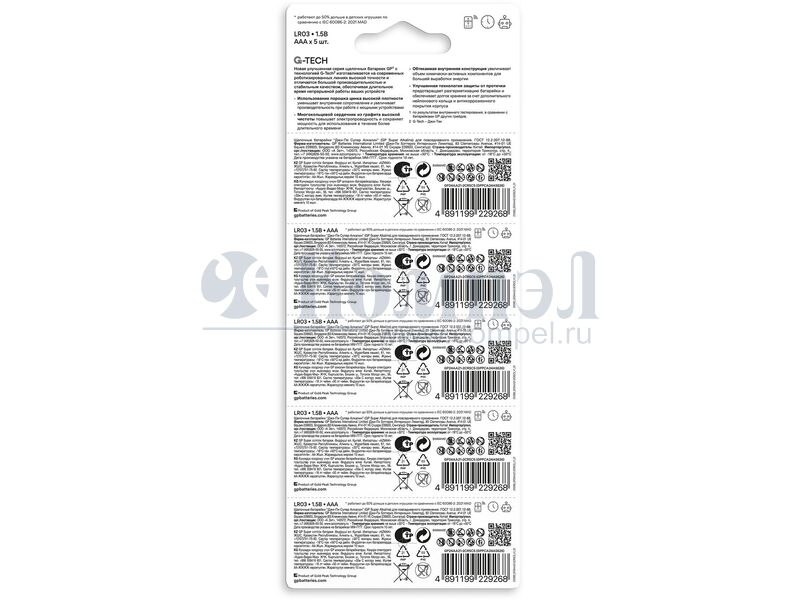

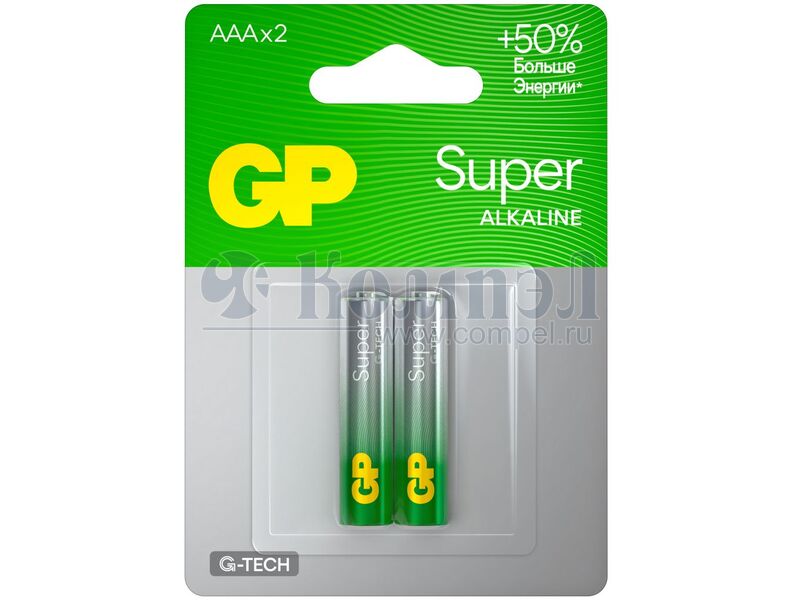

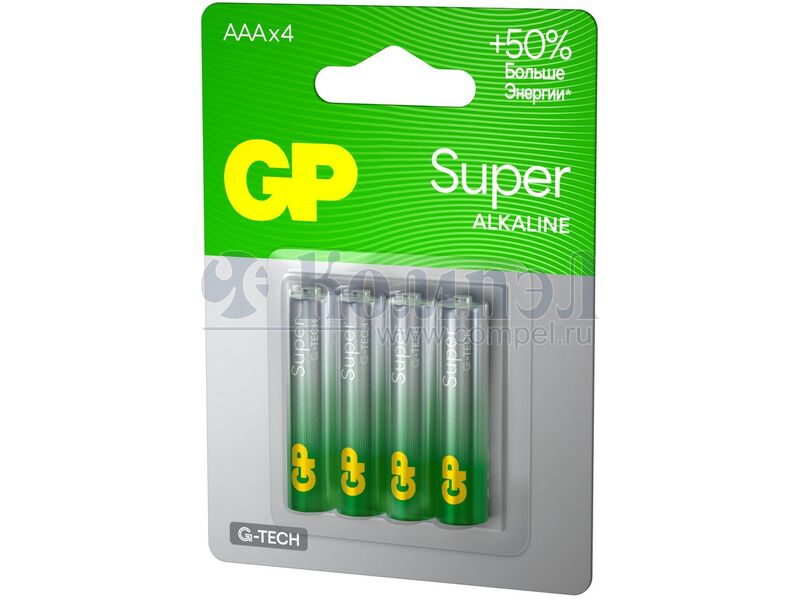

Серия батареи щелочной (Zn-MnO2) GP 24AA21

GP Batteries

Общие характеристики

 Раздел Батареи щелочные (Zn-MnO2)
Типоразмер
Напряжение номинальное
Ёмкость номинальная
Тип выводов
Размер ø10.5 мм
Температура рабочая
Температура хранения

Документация на серию GP 24AA21

PRODUCT SPECIFICATIONS Document Number: GP24A-C01 Revision:C01 Page 1 of 6 1. APPLICABILITY This specification is applicable to GP Alkaline cell, LR6 Super (Mercury & Cadmium & Lead Free). Model No.:GP24A 2. GENERAL 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 : : : : : : : : Type designation Nominal voltage Shape and dimension Typical weight Warranty period Jacket Operating temperature Storage temperature LR03 (IEC/JIS) / 24A (ANSI) 1.5V Refer to Drawing 1. 11.5g 10 years Foil jacket -18℃~50℃ (Recommended temperature 10℃~25℃) Not exceed 30℃ (Recommended) 3. APPEARANCE The battery shall be visually inspected by unaided eye 30cm away from battery. The battery shall be no dirt, scratch or deformation detrimental to practical service in appearance. 4. ELECTRICAL CHARACTERISTICS Unless otherwise stated, all measurements are to be performed at a Standard Environment of 20 ± 2°C 55 ± 20% RH. All samples are normalized for 8 hours at least at the above environment prior to measurement. The digital voltmeter (DCM) is with the precision of 1mV (internal resistance not less than 1 Megohm). The load resistance of the total circuit is accurate within ±0.5% of the specified value. 4.1 Open circuit voltage and closed circuit voltage (Load resistance 3.9Ω, 0.3S) / Initial Stored 1 year Min Normal Min Normal OCV(V) CCV(V) 1.60 1.45 1.57 1.55 1.57 1.40 1.37 1.40 Manufacturer reserves the right to alter or amend the design, model and specification without prior notice. Gold Peak Technology Group PDF
Документация на GP 24AA21RA-2CRS4 96/384

GP24A SUPER Product Specifications_18

Дата модификации: 04.05.2023

Размер: 925 Кб

6 стр.

    Товары серии GP 24AA21

    Наименование i Упаковка
    GP24AA21-2CRSBC2 (GP)

    GP24AA21-2CRSBC4 (GP)

    GP24AA21-2CRSC5 (GP)

    GP24AA21-2CRSWC10 (GP)


    GP24AA21-2CRSWC60 (GP)


    GP24AA21-2CRSWC80 (GP)
