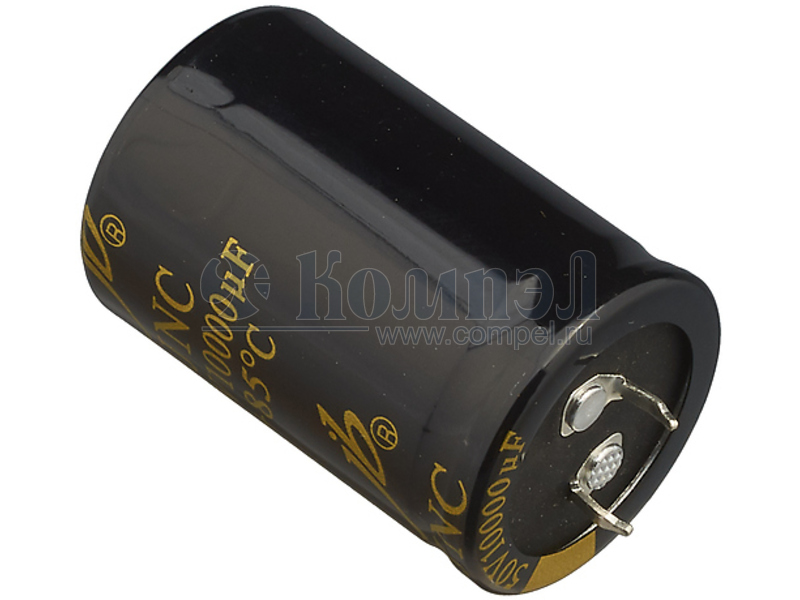

Серия алюминиевых конденсаторов JNC

JB Capacitors Company

Общие характеристики

 Раздел Алюминиевые конденсаторы
Допуск по ёмкости
Срок службы
Шаг между выводами
Диаметр x Высота 35×60 мм

Документация на серию JNC

Aluminum Electrolytic Capacitor – JNC FEATURES     Load life of 2000 hours at 85℃ High ripple current Smaller size PCB Mounting SPECIFICATIONS Items Operating Temperature Range (℃) Capacitance Tolerance (25℃, 120Hz) Leakage Current (μA) Performance Characteristics 10V~100V: -40℃+85℃ 160V~450V: -25℃~+85℃ ±20% 0.01CV or 1.5mA whichever is smaller. (at 25℃, after 5 minutes) C: Nominal Capacitance (μF) V: Rated Voltage (V) When nominal capacitance is over 1000μF, tan δ shall be added 0.01 to the listed value with increase of every 1000μF. Dissipation Factor (25℃, 120Hz) Rated Voltage (V) 10 16 25 35 50 63 80 100 160~400 450 Tan δ 0.40 0.35 0.35 0.30 0.25 0.25 0.20 0.20 0.15 0.20 Rated Voltage (V) Temperature Stability (120Hz) Load Life (+85℃) 10 16~35 50~100 160~200 250~400 450 Impedance Z-25℃/Z+20℃ 5 4 3 3 4 4 Ratio Z-40℃/Z+20℃ 18 15 10 6 8 -- Time 2000hours Leakage Current Not more than the specified value. Capacitance Change Within±20% of the initial value Dissipation Factor Not more than 200% of the specified value. 3000 hours load life is available on request. Shelf Life (+85℃) Time 1000hours Leakage Current Not more than the specified value. Capacitance Change Within±15% of the initial value Dissipation Factor Not more than 150% of the specified value. After test: UR to be applied for 60 minutes, 24 to 48 hours before measurement. DIMENSIONS (mm) MULTIPLIER FOR RIPPLE CURRENT Frequency coefficient Frequency(Hz) Rated Voltage(V) 50 120 1K 10K 20K 1.15 ≤50 0.95 1 1.10 1.15 63~100 0.95 1 1.16 1.30 1.33 ≥160 0.95 1 1.20 1.50 1.55 Temperature coefficient Temperature(℃) Rated Voltage(V) +40 +55 +70 +85 <160 2.1 1.8 1.5 1 ≥160 1.7 1.5 1.3 1 Please visit our website to get more update data, those data & specification are subject to change without notice. www.jbcapacitors.com E-mail: info@jbcapacitors.com www.jbcapacitors.hk Tel : (852)2790 5091 Fax: (852)8169 8283 PDF
Документация на серию JNC

JNC Aluminum Electrolytic Capacitor 2000H 85℃ Aluminum Electrolytic Capacitor

Дата модификации: 26.07.2024

Размер: 615.5 Кб

3 стр.

Plastic Film Capacitors Part Number System Main Series J Main F Sub- Sub-Series A 0 Voltage Capacitance 2 1 A 0 Tol. 2 Pitch J 0 5 Lead Length 0 0 Voltage Code Capacitance Code Tol. Code Pitch Code Lead Series Series 50V 1H 10pF 100 ±1% F Axial 000 Length 1J 100pF 101 ±2% G 3.5 035 Standard. 0 0 Code JFA 0 63V JFB 0 100V 2A 1000pF 102 ±3% E 4.0 040 JFC 0 160V 2C 0.01uF 103 ±5% J 4.5 045 JFD 0 200V 2D 0.1uF 104 ±10% K 5.0 050 3.5 035 JFE 0 250V 2E 1uF 105 6.0 060 4.0 040 JFF 0 300V 2L 10uF 106 7.0 070 4.5 045 A 360V 2N 8.0 080 5.0 050 B 400V 2G 8.5 085 6.0 060 JFG JFH JFJ C 630V 2J 9.0 090 700V 2M 9.5 095 0 900V 1X 10.0 100 25 250 0 1,000V 3A 10.5 105 30 300 110 35 350 1,250V 3B 11.0 JFL 0 1,600V 3C 11.5 115 JFM 0 2,000V 3D 12.0 120 JFN 0 3,000V 3F 12.5 125 JFO 0 150VAC D0 13.0 130 JFP 0 250VAC A3 15.0 150 JFQ 0 275VAC A1 15.5 155 JFQ D 300VAC A2 20.0 200 205 JFS A 305VAC A8 20.5 R 310VAC A9 21.0 210 Refer 320VAC K2 22.5 225 spec. 330VAC R1 26.5 265 27.5 275 JFT 0 400VAC A4 JFV 0 440VAC A5 JFW 0 450VAC A6 JFZ 0 480VAC A7 500VAC H2 630VAC J2 B Packing Code Ammo A Bulk B Tape & Cut Lead Length D 1 JFR 000 Packing Reel R Long Lead Length www.jbcapacitors.com www.jbcapacitors.hk E-mail: info@jbcapacitors.com Tel : (852)2790 5091 Fax: (852)8169 8283 PDF
Документация на JNC2G471M10003500400

jb®-Part-Number Part-Number

Дата модификации: 04.12.2020

Размер: 392.9 Кб

9 стр.

    Товары серии JNC

    Наименование i Упаковка Ёмкость Напряжение Температура рабочая Диаметр Высота Способ монтажа
    JNC1H103M10003000350 (JB)

    		160 шт
    JNC1H103M10003000450 (JB)

    		480 шт
    JNC1J103M10003000450 (JB)

    		480 шт
    JNC2A103M10003500550 (JB)


    JNC2A103M10003500600 (JB)


    		 1 шт — —
    JNC2A472M10003500400 (JB)

    		200 шт
    JNC2G151M10002200350 (JB)

    		200 шт
    JNC2G471M10003500400 (JB)

    		1 шт
    JNC2G681M10003500500 (JB)


    		 91 шт
    JNC2W101M10002200350 (JB)

    		1304 шт
