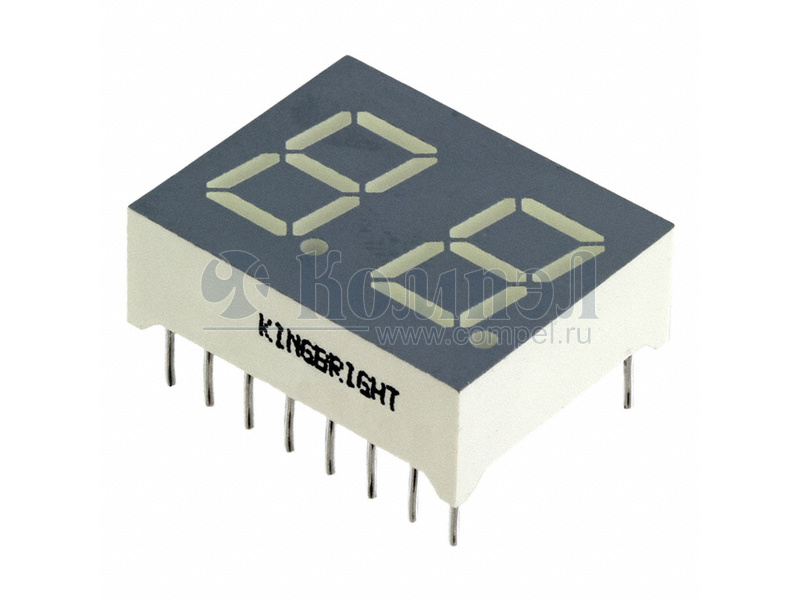

Серия LED индикаторов DC04-11

Kingbright

Общие характеристики

 Раздел LED индикаторы
Тип дисплея
Высота символов
Количество цифр
Схема включения
Рабочая температура
Размер 20.2×16×7 мм

Документация на серию DC04-11

10mm (0.4INCH) DUAL DIGIT NUMERIC DISPLAY Part Number: DC04-11EWA High Efficiency Red Features Description z 0.4 inch digit height. The High Efficiency Red source color devices are made with z Low current operation. Gallium Arsenide Phosphide on Gallium Phosphide Orange z Excellent character appearance. Light Emitting Diode. z Easy mounting on P.C. boards or sockets. z Two digit package simplifies alignments & assembly. z Mechanically rugged. z Standard : gray face, white segment. z RoHS compliant. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. SPEC NO: DSAA6854 REV NO: V.12 DATE: MAR/23/2011 PAGE: 1 OF 6 APPROVED: WYNEC CHECKED: Joe Lee DRAWN: J.Yu ERP: 1302000295 PDF
Документация на DC04-11EWA

DC04-11EWA(Ver.12)

Дата модификации: 25.03.2011

Размер: 227.1 Кб

6 стр.

    Товары серии DC04-11

    Наименование i Упаковка Цвет Яркость
    DC04-11EWA (KGB)

    		DISPLAY 627NM HE RED 2DIG 4" TH 4 шт
    DC04-11GWA (KGB)


    		 1 шт
    DC04-11YWA (KGB)
