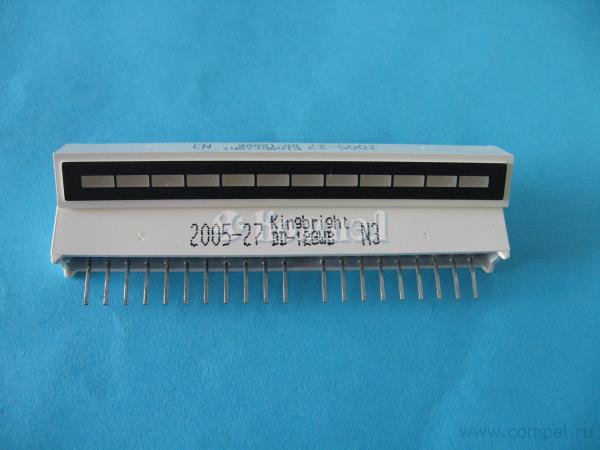

Серия LED индикаторов DD-12GWB

Общие характеристики

	Раздел	LED индикаторы
	Цвет свечения
	Схема включения
	Рабочая температура
	Размер	58×7×8 мм
	Высота символов
	Типовая яркость

Документация на серию DD-12GWB

12SEGMENT BAR GRAPH ARRAYS DD-12HWB BRIGHT RED DD-12GWB GREEN DD-12YWB YELLOW Features Description !SUITABLE FOR LEVEL INDICATORS. The Bright Red source color devices are made with Gallium !LOW Phosphide Red Light Emitting Diode. CURRENT OPERATION. !EXCELLENT ON/OFF CONTRAST. !WIDE VIEWING ANGLE. Phosphide Green Light Emitting Diode. !MECHANICALLY RUGGED. !DIFFERENT COLORS IN ONE UNIT AVAILABLE. !BLACK The Green source color devices are made with Gallium FACE, WHITE SEGMENT. The Yellow source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Yellow Light Emitting Diode. Package Dimensions & Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice. SPEC NO: KDA0475 APPROVED: J.LU REV NO: V.1 CHECKED: DATE: SEP/20/2001 DRAWN: J.X.FU PAGE: 1 OF 4  PDF

Документация на DD-12GWB G

Дата модификации: 08.09.2003

Размер: 124.1 Кб

4 стр.

• найти DD-12GWB.pdf

Товары серии DD-12GWB

Наименование	i	Упаковка	Тип
DD-12GWB G (KGB)		в линейках 8 шт
DD-12GWB/N3 G (KGB)
