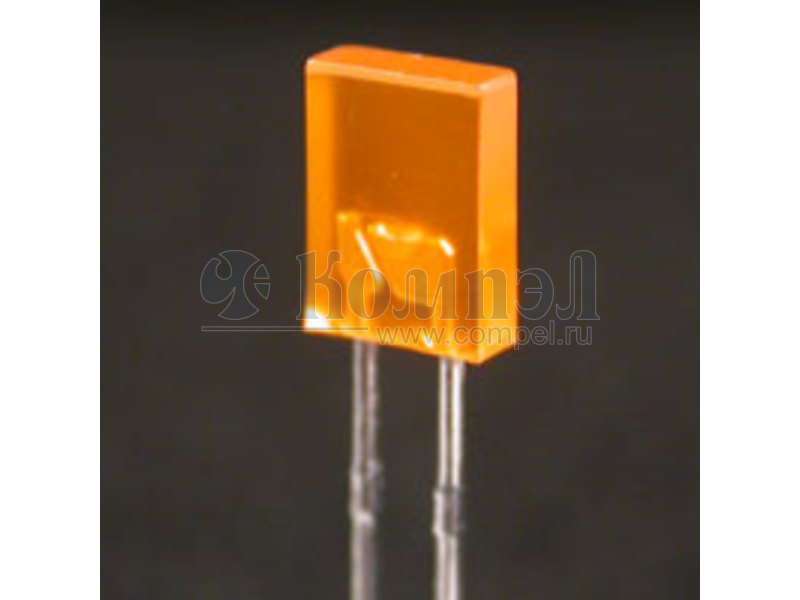

Серия Светодиод маломощный L-113EDT

Общие характеристики

	Раздел	Светодиод маломощный
	Цвета свечения
	Количество цветов в корпусе
	Длина волны 1 цвета	625
	Сила света 1 кристалла
	Угол по горизонтали
	Угол по вертикали
	Тип корпуса
	Тип линзы
	Схема включения
	Размер	5×2×7 мм
	Рабочая температура

Документация на серию L-113EDT

2x5mm RECTANGULAR LED LAMP Part Number: L-113EDT Orange Description Features The Orange source color devices are made with Gallium  Low power consumption. Arsenide Phosphide on Gallium Phosphide Orange Light  Reliable and rugged. Emitting Diode.  Excellent uniformity of light output.  Suitable for level indicator.  Long life - solid state reliability.  RoHS compliant. Package Dimensions K g in g i r b t h Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the leads emerge from the package. 4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. SPEC NO: DSAB6617 REV NO: V.11A DATE: NOV/13/2014 PAGE: 1 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: P.Cheng ERP: 1101000518

Документация на L-113EDT O

L-113EDT(Ver.11A)

Дата модификации: 13.11.2014

Размер: 583.5 Кб

6 стр.

2x5mm RECTANGULAR LED LAMP L-113EDT ORANGE Features Description !LOW The Orange source color devices are made with POWER CONSUMPTION. ! RELIABLE !EXCELLENT ! SUITABLE ! LONG Gallium Arsenide Phosphide on Gallium Phosphide AND RUGGED. UNIFORMITY OF LIGHT OUTPUT. Orange Light Emitting Diode. FOR LEVEL INDICATOR. LIFE - SOLID STATE RELIABILITY. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice. SPEC NO: DSAB6617 APPROVED: J.Lu REV NO: V.2 CHECKED: Allen Liu DATE: JAN/07/2003 DRAWN: K.ZHANG PAGE: 1 OF 3

Документация на серию L-113EDT

Дата модификации: 07.01.2003

Размер: 55.4 Кб

3 стр.

найти L-113EDT.pdf

Товары серии L-113EDT

Наименование	i	Упаковка
L-113EDT O (KGB)		1000 шт
