Серия Светодиод маломощный L59

Kingbright

Общие характеристики

 Раздел Светодиод маломощный
Количество цветов в корпусе
Размер 5×8.6 мм
Рабочая температура

Документация на серию L59

TAPE AND REEL LED LAMP L-59EGW-TNR2.54 L-59EYW-TNR2.54 L-59GYW-TNR2.54 Features lFOR THE USE OF AUTOMATIC INSERTION l2.54mm FORMED LEAD. l LED MACHINE. LAMPS ALSO AVAILABLE IN TAPE & BOX PACKAGE. HIGH EFFICIENCY RED / GREEN HIGH EFFICIENCY RED / YELLOW GREEN / YELLOW Description The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. The Green source color devices are made with Gallium Phosphide Green Light Emitting Diode. The Yellow source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Yellow Light Emitting Diode. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice. SPEC NO: DSAC8449 APPROVED: J.LU REV NO: V.1 CHECKED: Allen Liu DATE: JUN/25/2003 DRAWN: Z.Y.YANG PAGE: 1 OF 6 PDF
Документация на L-59EGW-TNR2.54

L-59-TNR2.54(V1).p65

Дата модификации: 26.06.2003

Размер: 301.5 Кб

6 стр.

    Товары серии L59

    Наименование i Упаковка Цвет λ1 Iv1 αX αY U Длина волны 2 Iv2 Линза
    L-59EGW-TNR2.54 (KGB)


    		 627 — — — —

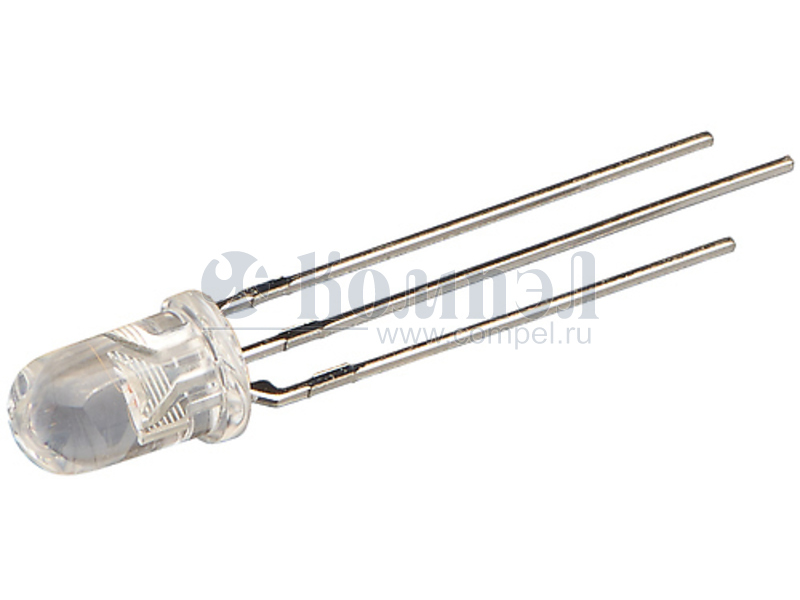

    L-59EYC (KGB)


    		 500 шт 627 — — —

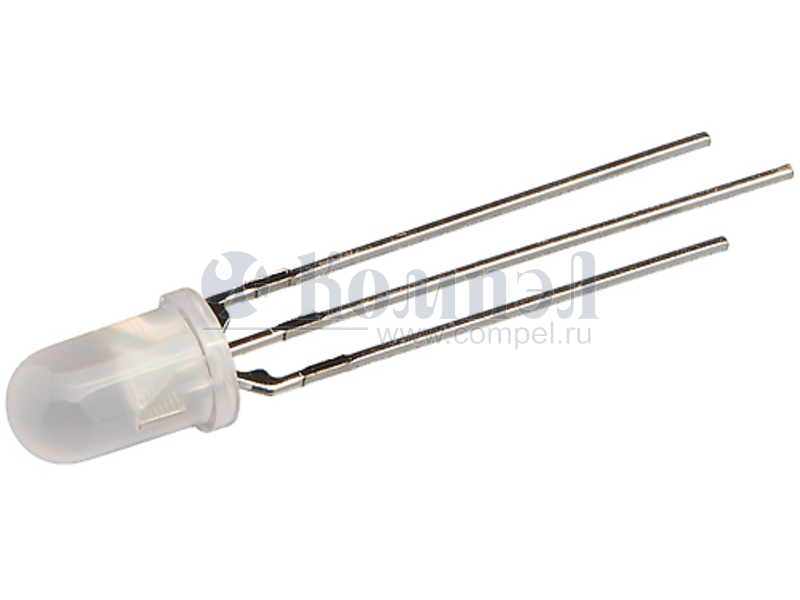

    L-59EYW (KGB)


    		 500 шт 627 — — —
    L-59GYC (KGB)

    		500 шт 568 — — 588
    L-59GYW (KGB)

    		LS: светодиод 500 шт 568 — — 588
    L-59SURKCGKW (KGB)

    		250 шт 630 — — 570
    L-59SURKSGC (KGB)


    		 500 шт 650 — — —
    L59SRSGC/CC (KGB)


    		 660 — — — —
