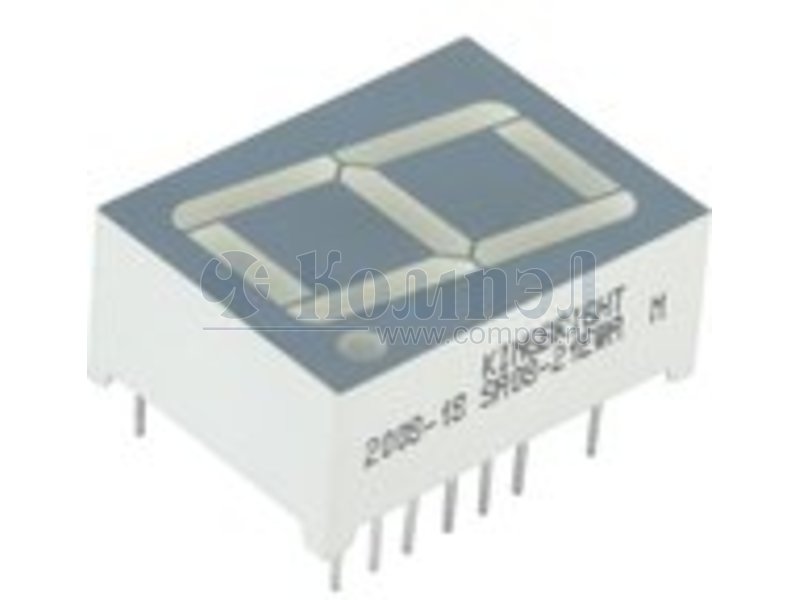

Серия LED индикаторов SA08-21GWA

Общие характеристики

	Раздел	LED индикаторы
	Тип дисплея
	Высота символов
	Количество цифр
	Цвет свечения
	Схема включения
	Типовая яркость
	Рабочая температура
	Размер	18.6×25×10.6 мм

Документация на серию SA08-21GWA

SA08-21GWA 20.32 mm (0.8 inch) Single Digit Numeric Display DESCRIPTION z PACKAGE DIMENSIONS The Green source color devices are made with Gallium Phosphide Green Light Emitting Diode FEATURES z z z z z z z z 0.8 inch digit height Low current operation Excellent character appearance High light output Easy mounting on P.C. boards or sockets Mechanically rugged Standard: gray face, white segment RoHS compliant APPLICATIONS z z z z Home and smart appliances Display time and digital combination Industrial and instrumental applications Numeric status Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. SELECTION GUIDE Part Number SA08-21GWA Emitting Color (Material) ■ Green (GaP) Iv (ucd) @ 10mA [1] Lens Type Description Min. Typ. 3600 7000 Common Anode, Rt. Hand Decimal White Diffused *900 *2500 Notes: 1. Luminous intensity / luminous Flux: +/-15%. * Luminous intensity value is traceable to CIE127-2007 standards. © 2017 Kingbright. All Rights Reserved. Spec No: DSAP3592 / 1301000133 Rev No: V.1A Date: 12/14/2017 Page 1 / 4

Документация на SA08-21GWA

SA08-21GWA(KC)(Ver.1A)

Дата модификации: 14.12.2017

Размер: 217.2 Кб

4 стр.

20.32mm (0.8INCH) SINGLE DIGIT NUMERIC DISPLAY Part Number: SA08-21GWA Green Features Description z 0.8 INCH DIGIT HEIGHT. The Green source color devices are made with Gallium z LOW CURRENT OPERATION. Phosphide Green Light Emitting Diode. z EXCELLENT CHARACTER APPEARANCE. z HIGH LIGHT OUTPUT. z EASY MOUNTING ON P.C. BOARDS OR SOCKETS. z I.C. COMPATIBLE. z MECHANICALLY RUGGED. z STANDARD : GRAY FACE, WHITE SEGMENT. z RoHS COMPLIANT. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. SPEC NO: DSAB4278 REV NO: V.9 DATE: MAY/16/2007 APPROVED: WYNEC CHECKED: Joe Lee DRAWN: Y.L.LI PAGE: 1 OF 4 ERP: 1301000133

Документация SA08-21GWA

SA08-21GWA(Ver.9)

Дата модификации: 06.06.2007

Размер: 176.4 Кб

4 стр.
