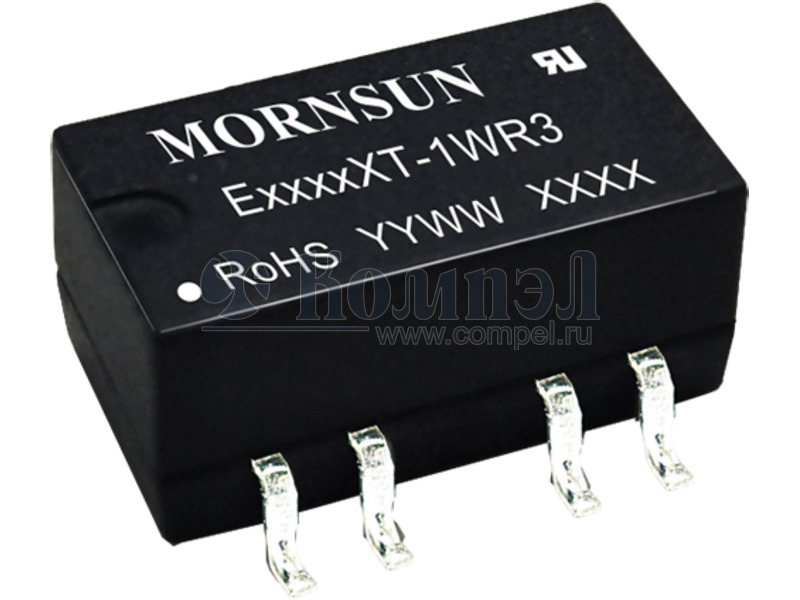

Серия DC-DC модульных преобразователей E_XT-1WR3

Общие характеристики

Раздел DC-DC модульные преобразователи
Выходная мощность
Возможности
Комплекс защит
КПД
Схема параллельного включения
Напряжение изоляции вход-выход
Сертификаты медицинские
Рабочая температура

Документация на серию E_XT-1WR3

DC/DC Converter E_XT-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage, unregulated dual output  Continuous short-circuit protection  No-load input current as low as 8mA  Operating ambient temperature range: -40℃ to +105℃  High efficiency up to 85%  Compact SMD package CB Report RoHS Patent Protection UL62368-1 EN62368-1 BS EN62368-1 IEC 62368-1  I/O isolation test voltage: 3k VDC  Industry standard pin-out E_XT-1WR3 series are specially designed for applications where two isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Output Input Voltage (VDC) Certification Part No. Full Load Nominal Voltage (Range) (VDC) Current (mA) Max./Min. Efficiency (%) Min./Typ. Capacitive Load(µF) Max.* UL/EN/BS EN/IEC E1205XT-1WR3 ±5 ±100/±10 78/82 1200 -- E12Y7XT-1WR3 ±7.5 ±67/±7 78/82 470 ±9 ±56/±6 79/83 470 ±12 ±42/±5 79/83 220 ±15 ±34/±4 79/83 220 ±24 ±21/±3 81/85 100 ±15 ±34/±4 79/83 220 E2405XT-1WR3 ±5 ±100/±10 76/82 1200 E2409XT-1WR3 ±9 ±56/±6 77/83 470 ±12 ±42/±5 77/83 220 ±15 ±34/±4 77/83 220 ±24 ±21/±3 79/85 100 E1209XT-1WR3 E1212XT-1WR3 12 (10.8-13.2) E1215XT-1WR3 E1224XT-1WR3 UL/EN/BS EN/IEC E1515XT-1WR3 E2412XT-1WR3 E2415XT-1WR3 15 (13.5-16.5) 24 (21.6-26.4) E2424XT-1WR3 Note: * The specified maximum capacitive load for positive and negative output is identical. Input Specifications Item Operating Conditions 12V input Input Current (full load / no-load) Typ. Max. ±5VDC/±7.5VDC output -- 102/8 107/-- ±9VDC/±12VDC/±15VDC output -- 101/8 106/-- ±24VDC output -- 99/8 103/-- 15V input -- 81/8 85/-- ±5VDC/±9VDC/±12VDC/±15VDC output -- 51/8 55/-- ±24VDC output -- 50/8 53/-- -- 15 -- 12VDC input -0.7 -- 18 15VDC input -0.7 -- 21 24VDC input -0.7 -- 30 24V input Reflected Ripple Current* Surge Voltage(1sec. max.) Min. Input Filter Unit mA VDC Capacitance filter Hot Plug Unavailable Note: * Refer to DC-DC Converter Application Notes for detailed description of reflected ripple current test method. 2021.12.23-A/2 Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на E2424XT-1WR3

E_XT-1WR3 Keywords:

Дата модификации: 23.12.2021

Размер: 2.02 Мб

5 стр.

DC/DC Converter E_XT-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage, unregulated dual output  Continuous short-circuit protection  No-load input current as low as 8mA  Operating ambient temperature range: -40℃ to +105℃  High efficiency up to 85%  Compact SMD package  I/O isolation test voltage: 3k VDC  Industry standard pin-out Patent Protection RoHS E_XT-1WR3 series are specially designed for applications where two isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input Voltage (VDC) Certification Part No. Output Capacitive Load(µF) Max.* Nominal Voltage (Range) (VDC) Current (mA) Max./Min. ±5 ±100/±10 78/82 1200 ±9 ±56/±6 79/83 470 ±12 ±42/±5 79/83 220 ±15 ±34/±4 79/83 220 ±24 ±21/±3 81/85 100 ±15 ±34/±4 79/83 220 E2405XT-1WR3 ±5 ±100/±10 76/82 1200 E2409XT-1WR3 ±9 ±56/±6 77/83 470 ±12 ±42/±5 77/83 220 ±15 ±34/±4 77/83 220 ±24 ±21/±3 79/85 100 E1205XT-1WR3 E1209XT-1WR3 E1212XT-1WR3 E1215XT-1WR3 12 (10.8-13.2) E1224XT-1WR3 -- Full Load Efficiency (%) Min./Typ. E1515XT-1WR3 E2412XT-1WR3 E2415XT-1WR3 15 (13.5-16.5) 24 (21.6-26.4) E2424XT-1WR3 Note: * The specified maximum capacitive load for positive and negative output is identical. Input Specifications Item Operating Conditions 12V input Input Current (full load / no-load) Typ. Max. ±5VDC output -- 102/8 107/-- ±9VDC/±12VDC/±15VDC output -- 101/8 106/-- ±24VDC output -- 99/8 103/-- 15V input -- 81/8 85/-- ±5VDC/±9VDC/±12VDC/±15VDC output -- 51/8 55/-- ±24VDC output -- 50/8 53/-- -- 30 -- 12VDC input -0.7 -- 18 15VDC input -0.7 -- 21 24VDC input -0.7 -- 30 24V input Reflected Ripple Current* Surge Voltage(1sec. max.) Min. Input Filter Unit mA VDC Capacitance filter Hot Plug Unavailable Note: * Reflected ripple current testing method please see DC-DC Converter Application Notes for specific operation. 2020.10.30-A/0 Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию E_XT-1WR3

E_XT-1WR3 Keywords:

Дата модификации: 30.10.2020

Размер: 2.03 Мб

5 стр.
