Серия EMI/RFI силовых фильтров FC-CX3D

Mornsun

Общие характеристики

 Раздел EMI/RFI силовые фильтры
Номинальное напряжение
Номинальный ток

Документация на серию FC-CX3D

EMC Filter FC-CX3D EMC Filter FEATURES  Cost-effective  Meet IEC/EN61000-4 series standard and CISPR22/EN55022  Meet railway industry EN50155standard  Input over-voltage protection  Efficiency up to 98%  Mounting: PCB mounting, chassis mounting with screw terminals, din-rail mounting RoHS This model applies to analog circuit which is noise-sensitive. Put FC-CX3D on to the input of DC/DC module can ensure the module meet the EMC request of EN50155standard. FC-CX3D used with the MORNSUN DC/DC railway module. DC/DC railway module’s max. Input voltage must less than FC-CX3D’s max. Voltage. Selection Guide Model Input Voltage Range (VDC) Max. output power(W) FC-CX3D 66-160 100 Note: series with suffix “A2S” are chassis mounting, with suffix “A4S” are DIN-Rail mounting, for example FC-CX3DA4S. Input Specifications Item Test Conditions Min. Typ. Max. Unit Input Voltage No-load Current Operating temperature range 66 110 160 VDC 110VDC @ No-load -- 4 -- mA Min. Typ. Max. Unit Output Specifications Item Test Conditions Efficiency 110VDC @100W -- 98 -- Max. Output Voltage Limit Operating temperature range -- 165 -- % General Specifications Item Min. Typ. Max. Operating Temperature Test Conditions -40 -- 85 Storage Temperature -55 -- 105 5 -- 95 Storage Humidity Casing Temperature Rise Unit ℃ % 110VDC @100W -- 25 -- ℃ Withstand voltage +Vin~ -- 1500 -- VAC MTBF MIL-HDBK-217F@40℃ -- 1000 -- K hours leakage current＜5mA General Specifications Black flame-retardant heat-proof epoxy resin (UL94-V0) Casing Material Package Dimensions Weight Horizontal package 53.80*28.80*23.50 mm A2S wiring package 76.00*31.50*32.30 mm A4S rail package 76.00*31.50*36.90 mm Horizontal package / A2S wiring package/ A4S rail package 60.00/80.00/100.00g(Typ.) 2014.04.29-A/0 Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на FC-CX3D

FC-CX3D Keywords:

Дата модификации: 31.12.2021

Размер: 1.55 Мб

4 стр.

EMC Filter FC-CX3D EMC Filter FEATURES z Cost-effective z Meet IEC/EN61000-4 series standard and CISPR22/EN55022 z Meet railway industry EN50155standard z Input over-voltage protection z Efficiency up to 98% z Mounting: PCB mounting, chassis mounting with screw terminals, din-rail mounting RoHS This model applies to analog circuit which is noise-sensitive. Put FC-CX3D on to the input of DC/DC module can ensure the module meet the EMC request of EN50155standard. FC-CX3D used with the MORNSUN DC/DC railway module. DC/DC railway module’s max. Input voltage must less than FC-CX3D’s max. Voltage. Selection Guide Model Input Voltage Range (VDC) Max. output power(W) FC-CX3D 66-160 100 Note: series with suffix “A2S” are chassis mounting, with suffix “A4S” are DIN-Rail mounting, for example FC-CX3DA4S. Input Specifications Item Test Conditions Min. Typ. Max. Unit Input Voltage Operating temperature range 66 110 160 VDC No-load Current 110VDC @ No-load -- 4 -- mA Min. Typ. Max. Unit Output Specifications Item Test Conditions Efficiency 110VDC @100W -- 98 -- Max. Output Voltage Limit Operating temperature range -- 165 -- % General Specifications Item Min. Typ. Max. Operating Temperature Test Conditions -40 -- 85 Storage Temperature -55 -- 105 5 -- 95 Storage Humidity Casing Temperature Rise 110VDC @100W Withstand voltage +Vin~ MTBF MIL-HDBK-217F@40℃ leakage current＜5mA Unit ℃ % -- 25 -- ℃ -- 1500 -- VAC -- 1000 -- K hours General Specifications Black flame-retardant heat-proof epoxy resin (UL94-V0) Casing Material Package Dimensions Weight Horizontal package 53.80*28.80*23.50 mm A2S wiring package 76.00*31.50*32.30 mm A4S rail package 76.00*31.50*36.90 mm Horizontal package / A2S wiring package/ A4S rail package 60.00/80.00/100.00g(Typ.) 2014.04.29-A/0 Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на FC-CX3DA4S

Microsoft Word - FC-CX3D_EN.doc

Дата модификации: 04.05.2014

Размер: 293.4 Кб

4 стр.

    Товары серии FC-CX3D

    Наименование i Упаковка Монтаж
    FC-CX3D (MORNSUN)

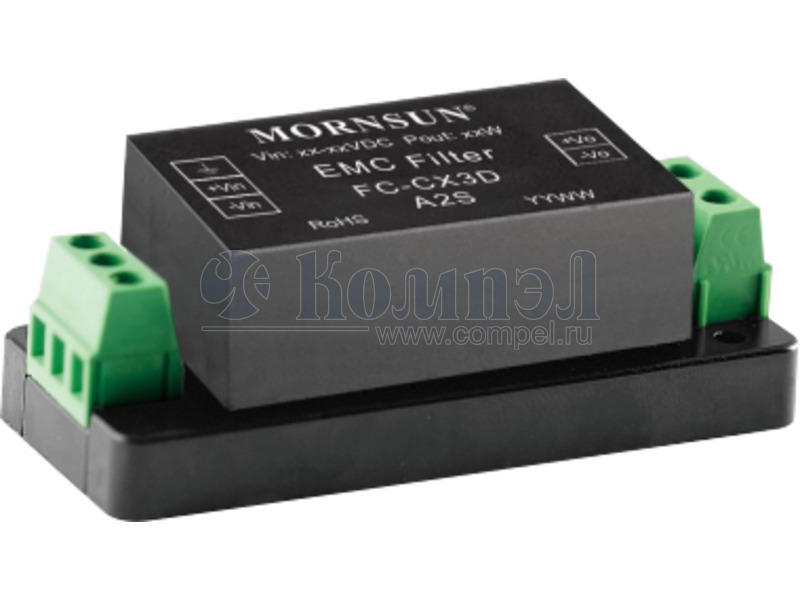

    FC-CX3DA2S (MORNSUN)

    FC-CX3DA4S (MORNSUN)
