Серия EMI/RFI силовых фильтров FC-CXXD

Mornsun

Общие характеристики

 Раздел EMI/RFI силовые фильтры
Номинальное напряжение

Документация на серию FC-CXXD

EMC Filter FC-CxxD Series FEATURES EMC Filter  Designed to meet IEC/EN61000-4 and CISPR32/EN55032 standards  Meets EN50155 requirements for railway applications  Input reverse voltage protection  High efficiency up to 98%  Flexible mounting options include direct PCB mounting, chassis or Din-Rail mounting with screw terminals Patent Protection RoHS These filter modules are extremely useful in noise-sensitive analog circuit applications. FC-CxxD filters connected on the input side of DC/DC converters can ensure system compliance with EMC requirements according to EN50155 railway standard. MORNSUN’s DC/DC railway converter module rated up to 20W can be used with the FC-CXXD filters as long as the DC-DC converters input voltage does not exceed the FC-CXXD’s maximum voltage rating. Selection Guide Model Input Voltage Range (VDC) Max. output power(W) FC-C01D 40-160 10 FC-CX1D 40-160 30 FC-C03D 40-160 50 Note: Add suffix “A2S” for chassis mounting (for example FC-C01DA2S) and suffix “A4S” for DIN-Rail mounting (for example FC-C01DA4S). Input Specifications Item Test Conditions Input Voltage No-load Current Min. Typ. Max. Unit Operating temperature range 40 110 160 VDC FC-C01D & FC-CX1D -- -- 1 -- -- 3 Min. Typ. Max. 110VDC @ No-load FC-C03D mA Output Specifications Item Efficiency Max. Output Voltage Limit* Test Conditions Unit FC-C01D 110VDC @10W -- 98 -- FC-CX1D 110VDC @30W -- 98 -- FC-C03D 110VDC @50W -- 98 -- -- 165 -- VDC Max. Unit Input voltage less than 175V % Note: * Continuous operation of the filters at their Max. Output Voltage Limit may cause failures and/or permanent damage. General Specifications Item Min. Typ. Operating Temperature -40 -- +85 Storage Temperature -55 -- +125 -- +25 -- Case Temperature Rise Test Conditions 110VDC @Full load, Ta=25℃ Storage Humidity Isolation +Vin , -Vin , leakage current＜5mA, with the test time of 1 minute MTBF MIL-HDBK-217F@40℃ Vibration 5 -- 95 FC-C03D -- -- 2000 Others -- -- 1500 -- 1200 -- ℃ %RH VAC K hours IEC61373-Category 1, Grade B 2019.02.19-B/4 Page 1 of 6 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на FC-CX1DA4S

Subject:

Дата модификации: 28.02.2019

Размер: 1.96 Мб

6 стр.

    Товары серии FC-CXXD

    Наименование i Упаковка Ток Монтаж
    FC-C03D (MORNSUN)

    FC-C03DA2S (MORNSUN)


    FC-C03DA4S (MORNSUN)

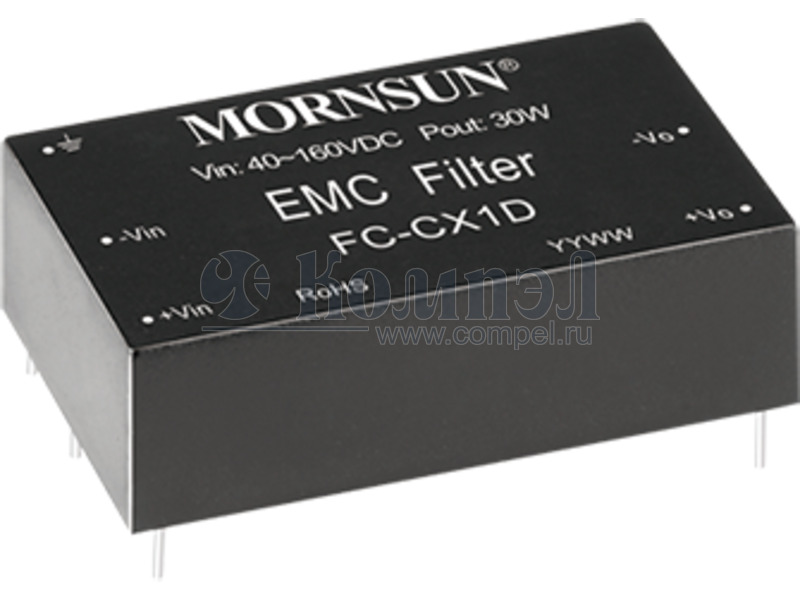

    FC-CX1D (MORNSUN)

    		1 шт

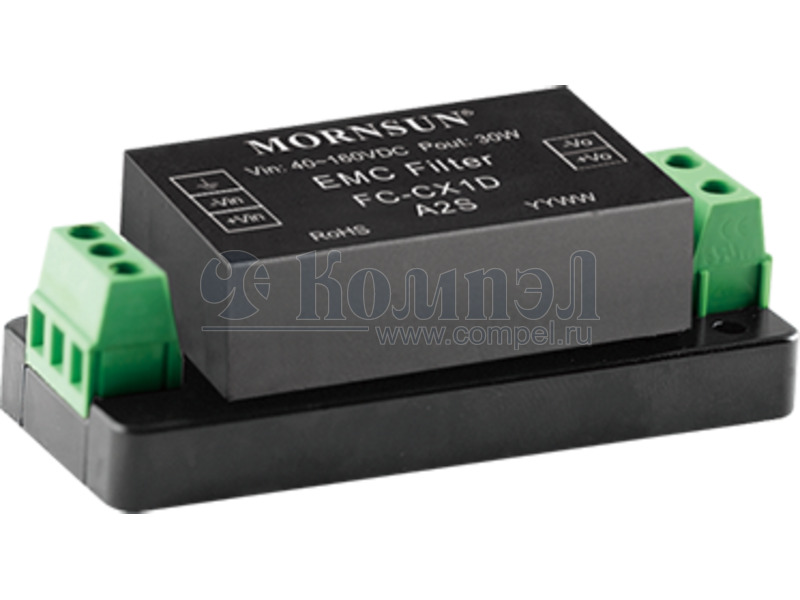

    FC-CX1DA2S (MORNSUN)

    FC-CX1DA4S (MORNSUN)
