Серия EMI/RFI силовых фильтров FC-XXXD

Mornsun

Общие характеристики

 Раздел EMI/RFI силовые фильтры

Документация на серию FC-XXXD

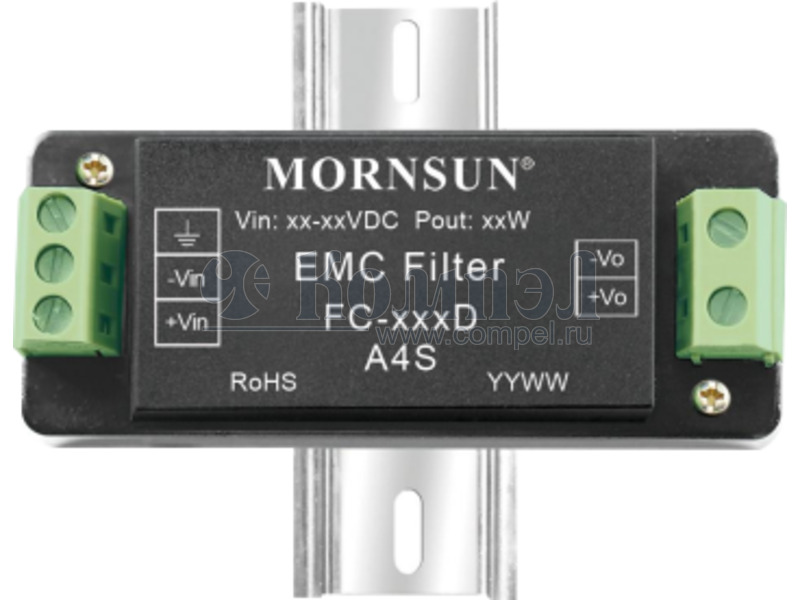

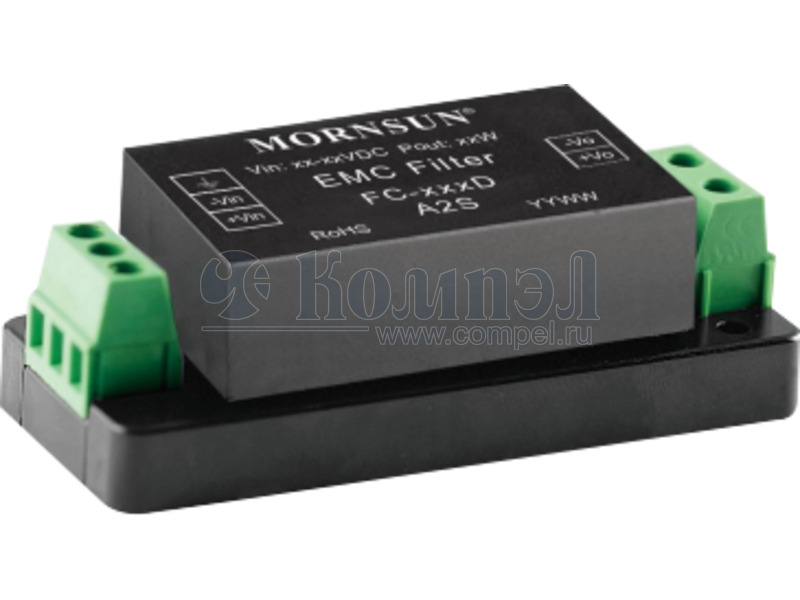

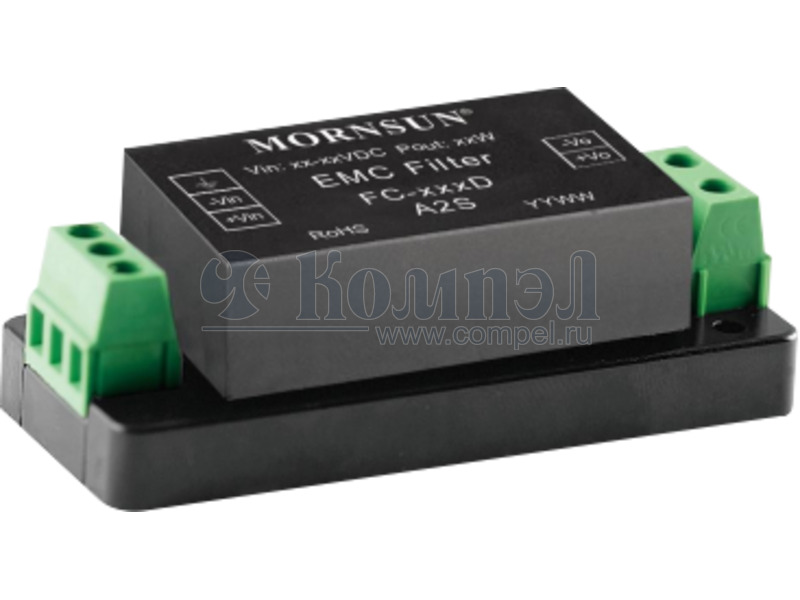

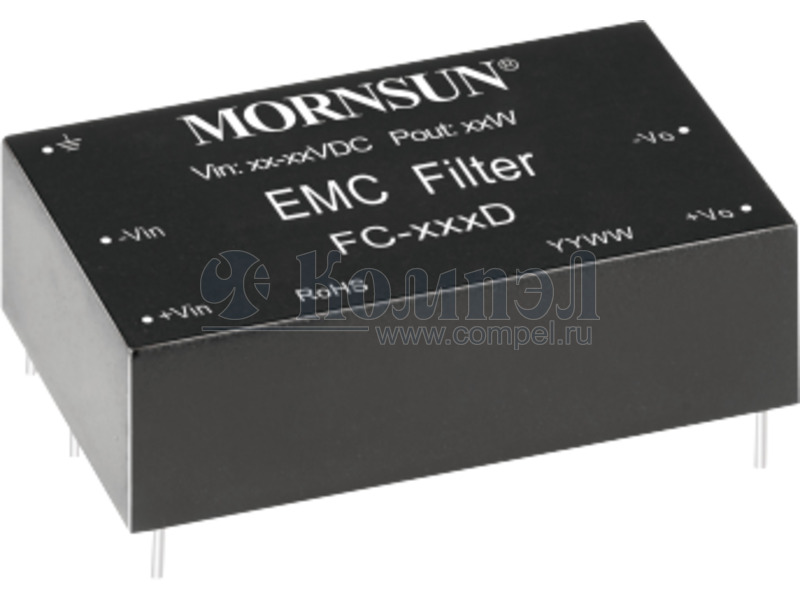

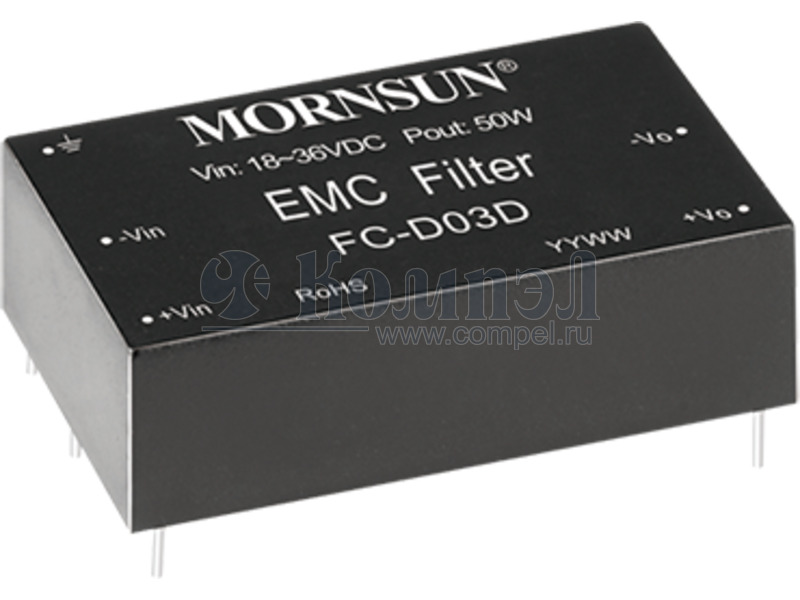

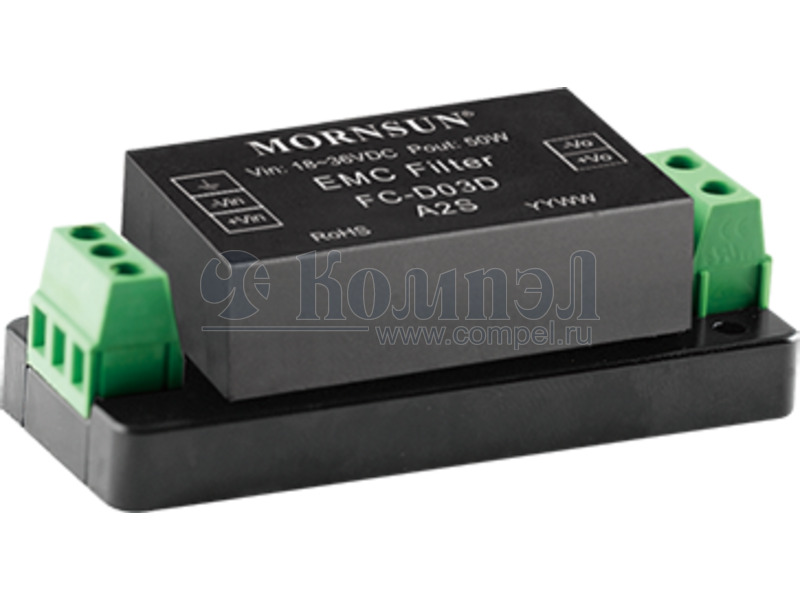

EMC Filter FC-xxxD Series FEATURES EMC Filter  Compact size  Cost-effective  Designed to meet IEC/EN61000-4 and CISPR32/EN55032 standards  Input reverse voltage protection  High efficiency up to 98%  With soft start function  Flexible mounting options include direct PCB mounting, Chassis or DIN-Rail mounting with Screw Terminals Patent Protection RoHS These filter modules are extremely useful in noise-sensitive analog circuit applications. Filters connected on the input side of DC/DC converters can ensure system compliance with EMC requirements according to IEC/EN61000-4 and CISPR32/EN55032 standards. MORNSUN’s DC/DC railway converter module can be used with the filters as long as the DC-DC converters input voltage does not exceed the filter maximum voltage rating and DC-DC converters’ power does not exceed the filter maximum output power. Selection Guide Model Input Voltage Range (VDC) Max. output power(W) FC-AX3D 10-36 30 FC-B02D 18-75 30 FC-D03D 18-36 50 FC-E03D 36-75 75 Note: Add suffix “A2S” for chassis mounting and suffix “A4S” for DIN-Rail mounting. Input Specifications Item Test Conditions FC-AX3D Input Voltage FC-B02D FC-D03D Operating temperature range FC-E03D No-load Current Min. Typ. Max. 10 24 36 18 48 75 18 24 36 75 36 48 FC-AX3D 24VDC @ No-load -- -- FC-B02D 48VDC @ No-load -- -- FC-D03D 24VDC @ No-load -- -- FC-E03D 48VDC @ No-load -- -- Min. Typ. Max. Unit VDC 10 mA 5 Output Specifications Item Efficiency Max. Output Voltage Limit* Test Conditions FC-AX3D 24VDC @30W -- 98 -- FC-B02D 48VDC @30W -- 98 -- FC-D03D 24VDC @50W -- 98 -- FC-E03D 48VDC @50W -- 97 -- FC-AX3D Input voltage≤47V -- 39 -- FC-B02D Input voltage≤100V -- 82 -- FC-D03D Input voltage≤47V -- 39 -- FC-E03D Input voltage≤100V -- 82 -- Unit % VDC Note: *Continuous operation of the filters at their Max. Output Voltage Limit may cause failures and/or permanent damage. 2018.10.20-A/4 Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на FC-E03DA4S

Subject:

Дата модификации: 26.11.2018

Размер: 1.25 Мб

4 стр.

    Товары серии FC-XXXD

    Наименование i Упаковка Напряжение Ток Монтаж
    FC-AX3D (MORNSUN)

    FC-AX3DA2S (MORNSUN)

    FC-AX3DA4S (MORNSUN)

    FC-B02D (MORNSUN)

    FC-B02DA2S (MORNSUN)

    FC-B02DA4S (MORNSUN)

    FC-D03D (MORNSUN)

    		на поддоне 35 шт
    FC-D03DA2S (MORNSUN)

    FC-D03DA4S (MORNSUN)

    FC-E03D (MORNSUN)

    FC-E03DA2S (MORNSUN)

    FC-E03DA4S (MORNSUN)
