Серия EMI/RFI силовых фильтров FI-B03D

Mornsun

Общие характеристики

 Раздел EMI/RFI силовые фильтры
Номинальное напряжение
Номинальный ток

Документация на серию FI-B03D

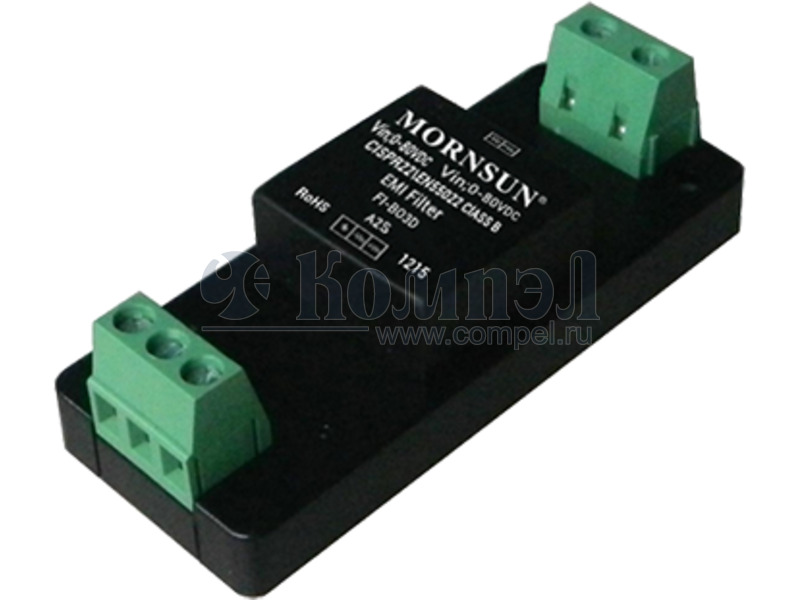

EMC Filter FI-B03D Series EMC Filter FEATURES  Compact size  Restrain line disturb of DC power source  The attenuation coefficient of frequency meet 20dB  Cost-effective  Low Temperature Rise  Mounting: PCB mounting, chassis mounting with screw terminals, DIN-Rail mounting RoHS This model applies to analog circuit which is noise-sensitive. Put FI-B03D on to the input of module can ensure EMI performance by a big margin. Selection Guide Model Input Voltage Range (VDC) Nominal Current (A)(max) FI-B03D 0~80 3.0 Note: series with suffix “A2S” are chassis mounting, with suffix “A4S” are DIN-Rail mounting, for example FI-B03DA4S. General Specifications Item Min. Typ. Max. Operating Temperature Test Conditions -40 -- 85 Storage Temperature -55 -- 125 5 -- 95 % -- -- 40 ℃ -- -- 1500 VDC -- 30 -- mΩ Storage Humidity Casing Temperature Rise Nominal Current Withstand Voltage to GND D·C·R Input - Output Unit ℃ General Specifications Aluminum Alloy Casing Material Package Dimensions Weight Horizontal package 25.40x25.40x11.70 mm A2S wiring package 76.00x31.50x21.20 mm A4S rail package 76.00x31.50x25.80 mm Horizontal package/A2S wiring package/A4S rail package 15g/35g/55g(Typ) Frequency Impedance Specifications Item Test Conditions Im 150KHz~100 MHz Min. -- Typ. Max. 20 -- Unit dBΩ Devise Standard FI-B03D can ensure MORNSUN DC/DC converter module with 3A input current EMI meet EN 55022 Class B. 2014.02.18-A/2 Page 1 of 3 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на FI-B03D

FI-B03D Keywords:

Дата модификации: 31.12.2021

Размер: 971.7 Кб

3 стр.

EMC Filter FI-B03D Series EMC Filter FEATURES z Compact size z Restrain line disturb of DC power source z The attenuation coefficient of frequency meet 20dB z Cost-effective z Low Temperature Rise z Mounting: PCB mounting, chassis mounting with screw terminals, DIN-Rail mounting RoHS This model applies to analog circuit which is noise-sensitive. Put FI-B03D on to the input of module can ensure EMI performance by a big margin. Selection Guide Model Input Voltage Range (VDC) Nominal Current (A)(max) FI-B03D 0~80 3.0 Note: series with suffix “A2S” are chassis mounting, with suffix “A4S” are DIN-Rail mounting, for example FI-B03DA4S. General Specifications Item Min. Typ. Max. Operating Temperature Test Conditions -40 -- 85 Storage Temperature -55 -- 125 5 -- 95 % -- -- 40 ℃ -- -- 1500 VDC -- 30 -- mΩ Storage Humidity Casing Temperature Rise Nominal Current Withstand Voltage to GND D·C·R Input - Output Unit ℃ General Specifications Aluminum Alloy Casing Material Horizontal package 25.40x25.40x11.70 mm Package Dimensions A2S wiring package 76.00x31.50x21.20 mm A4S rail package 76.00x31.50x25.80 mm Weight Horizontal package/A2S wiring package/A4S rail package 15g/35g/55g(Typ) Frequency Impedance Specifications Item Test Conditions Im 150KHz~100 MHz Min. -- Typ. Max. 20 -- Unit dBΩ Devise Standard FI-B03D can ensure MORNSUN DC/DC converter module with 3A input current EMI meet EN 55022 Class B. 2014.02.18-A/2 Page 1 of 3 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на FI-B03DA4S

Microsoft Word - FI-B03D_EN.doc

Дата модификации: 05.03.2014

Размер: 260.3 Кб

3 стр.
