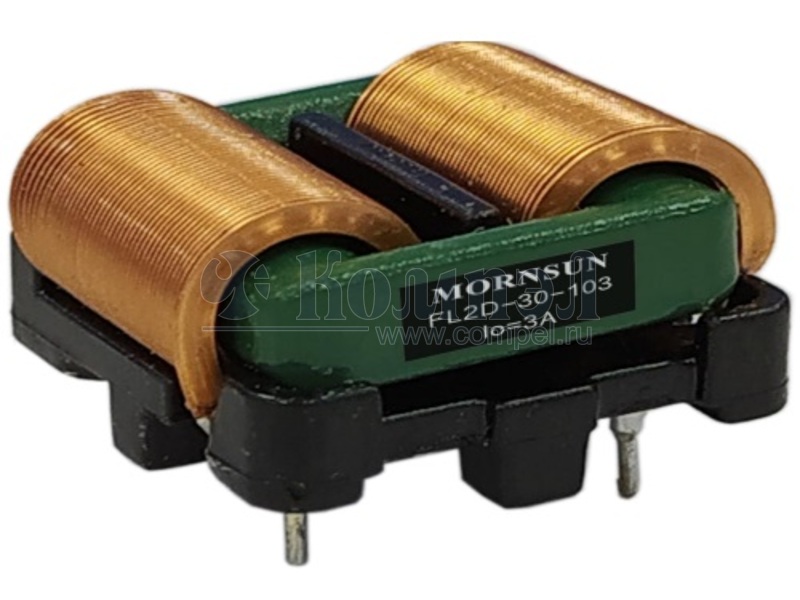

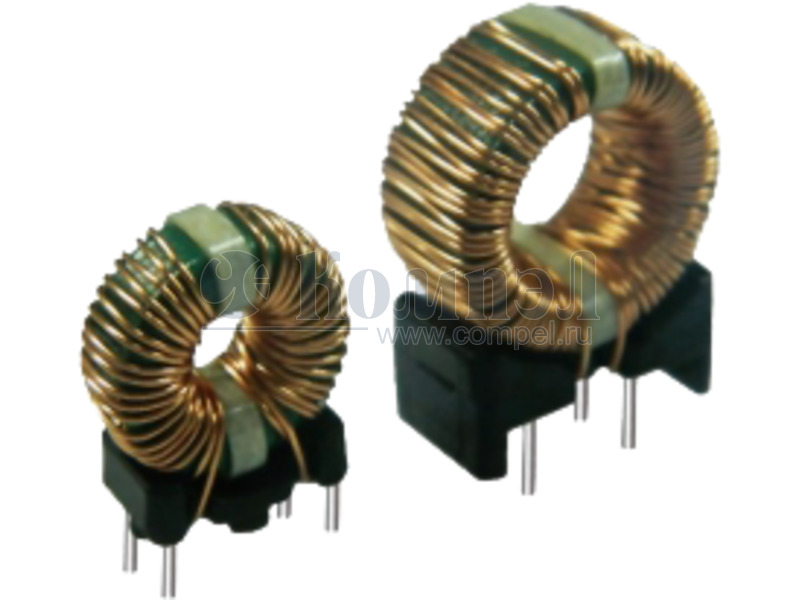

Серия EMI/RFI силовых фильтров FL2D-XX-XXX

Mornsun

Общие характеристики

 Раздел EMI/RFI силовые фильтры
Монтаж

Документация на серию FL2D-XX-XXX

EMC Filter FL2D-xx-xxx Series Common Mode Filter FEATURES  Good temperature characteristic  Compact size  Effective anti-interference  High reliability  Meets UL508 isolation requirements RoHS It is suitable for occasions that are sensitive to noise and EMC, such as analog circuits. After installing a FL2D-xx-xxx at the input of the module, the noise at the output of the module can be greatly reduced, which can significantly improve the EMC performance. Selection Guide Model Inductance (μH)(typ) Current (A)(max) DCR(mΩ) (typ) Weight (g) (typ) FL2D-Z5-103 10000*2 0.5 500*2 4.5 17*9.6*18 Size(L*W*H) See Figure 1 FL2D-Z5-153 15000*2 0.5 600*2 4.5 17*9.6*18 See Figure 1 FL2D-Z5-223 22000*2 0.5 650*2 4.5 17*9.6*18 See Figure 1 FL2D-10-102 1000*2 1.0 70*2 4.5 17*9.6*18 See Figure 1 FL2D-10-222 2200*2 1.0 90*2 4.5 17*9.6*18 See Figure 1 FL2D-10-332 3300*2 1.0 100*2 4.5 17*9.6*18 See Figure 1 FL2D-10-472 4700*2 1.0 140*2 4.5 17*9.6*18 See Figure 1 FL2D-10-682 6800*2 1.0 160*2 6.5 19*11*23.5 See Figure 2 FL2D-10-822 8200*2 1.0 180*2 6.5 19*11*23.5 See Figure 2 FL2D-10-203 20000*2 1.0 240*2 5.6 18*10*17.5 See Figure 8 FL2D-30-351 350*2 3.0 30*2 3.9 17*9.6*18 See Figure 1 FL2D-30-102 1000*2 3.0 40*2 4.5 17*9.6*18 See Figure 1 FL2D-30-222 2200*2 3.0 50*2 4.5 17*9.6*18 See Figure 1 FL2D-30-472 4700*2 3.0 70*2 4.5 17*9.6*18 See Figure 1 FL2D-30-103 10000*2 3.0 50*2 13.8 FL2D-60-402 4000*2 6 35*2 20 FL2D-60-451 450*2 6 9*2 6.4 FL2D-A2-202 2000*2 12.0 145*2 25.2 25.5*23.8*15.5 See Figure 4 FL2D-D0-040 4*2 40 2*2 30.9 36*28*20 24.5*22.5*15.5 See Figure 3 24*23.5*19 18*15*17 See Figure 5 See Figure 6 See Figure 7 Note: The Inductance of FL2D-30-103, FL2D-A2-202 are minimum value, others are typical value. General Specifications Item Test Conditions Min. Typ. Max. Operating Temperature* -40 -- 105 Storage Temperature -40 -- 105 -- -- 95 FL2D-30-351 -50 -- -- Others -35 -- -- Leakage current Io=1mA 2000 -- -- Leakage current Io=5mA, Coil-coil testing time 3s, only for Coil-core FL2D-30-103, FL2D-A2-202 FL2D-30-103, FL2D-A2-202, FL2D-60-402, FL2D-60-451, FL2D-D0-040 1500 -- -- 1000 -- -- Storage Humidity Inductance Isolation Vibration fo=1kHz, Uo=0.3V Unit ℃ %RH % VDC VAC IEC60077, IEC 61373 - Category 1, Grade B Note: *Operating Temperature range includes inductor self heating. 2021.09.24-A/9 Page 1 of 9 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на FL2D-Z5-223

FL2D-xx-xxx Keywords:

Дата модификации: 08.10.2021

Размер: 3.18 Мб

9 стр.
