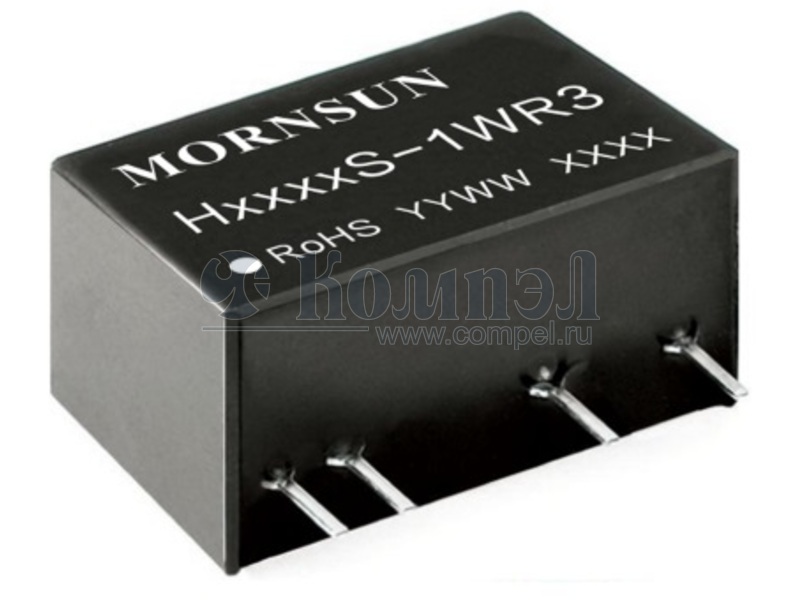

Серия DC-DC модульных преобразователей H_S_1WR3

Mornsun

Общие характеристики

 Раздел DC-DC модульные преобразователи
Монтаж
Выходная мощность
Количество каналов
Возможности
Комплекс защит
Напряжение изоляции вход-выход
Размер 19.5×9.8×12.5 мм
Рабочая температура

Документация на серию H_S_1WR3

DC/DC Converter G_S-1WR3 & H_S-1WR3 Series FEATURES 1W, Fixed input voltage, 5000VAC or 6000VDC isolated & unregulated dual/single output Patent Protection High efficiency up to 83% The leakage current < 2µA Isolation Capacitance as low as 4pF Creepage & Clearance Distance > 5mm Reinforced insulation, Isolation voltage: 5000VAC or 6000VDC  Operating ambient temperature range: -40℃ to +105℃  Continuous short-circuit protection  Meet EN60601-1, ANSI/AAMI ES60601-1 standard (1xMOPP & 2xMOOP)  Meet IEC62368 standard      RoHS G_S-1WR3 & H_S-1WR3 series meet reinforced insulation requirements. They are specially designed for applications where require compact size, high isolation, low isolation capacitor and low leakage current power. They are widely used in medical, electricity, IGBT driver and so on. They are suitable for: 1.Where the voltage of the input power supply is stable (voltage variation: ±10%Vin); 2.Where isolation is necessary between input and output (isolation voltage ≤5000VAC or 6000VDC); 3.Where do not has high requirement of line regulation and the ripple & noise of the output voltage; Such as, medical collection isolation, high voltage collection circuit and IGBT drive circuit. Selection Guide Output Input Voltage (VDC) Certification Capacitive (VDC) Current (mA) Max./Min. Full Load Efficiency (%) Min./Typ. G1205S-1WR3 ±5 ±100/±10 75/79 1000 G1212S-1WR3 ±12 ±42/±5 77/81 200 G1215S-1WR3 ±15 ±34/±4 77/81 200 3.3 303/31 72/76 2200 5 200/20 75/79 2200 H1209S-1WR3 9 111/12 77/81 680 H1212S-1WR3 12 84/9 79/83 470 H1215S-1WR3 15 67/7 79/83 470 H1224S-1WR3 24 42/4 78/82 220 G2405S-1WR3 ±5 ±100/±10 71/75 1000 G2412S-1WR3 ±12 ±42/±5 72/76 220 G2415S-1WR3 ±15 ±34/±4 72/76 220 5 200/20 72/76 2200 9 111/12 72/76 680 H2412S-1WR3 12 84/9 72/76 470 H2415S-1WR3 15 67/7 72/76 470 H2424S-1WR3 24 42/4 72/76 220 Part No. H1203S-1WR3 H1205S-1WR3 -- H2405S-1WR3 H2409S-1WR3 Nominal Voltage (Range) 12 （10.8-13.2） 24 （21.6-26.4） Load(µF)* Max. Note:* The capacitive loads of positive and negative outputs are identical. Input Specifications Item Input Current (full load/no-load) Operating Conditions Min. Typ. Max. 12V input -- 106/10 116/-- 24V input -- 56/12 59/-- 2022.08.08-A/1 Unit mA Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию G(H)_S_1WR3

G_S-1WR3&H_S-1WR3_EN Keywords:

Дата модификации: 08.08.2022

Размер: 1.55 Мб

5 стр.

    Товары серии H_S_1WR3

    Наименование i Упаковка U вх Выход U вх ном. U1 I1 КПД
    H1203S-1WR3 (MORNSUN)

    		3 шт
    H1205S-1WR3 (MORNSUN)

    		в линейках 60 шт
    H1209S-1WR3 (MORNSUN)


    		 в линейках 25 шт
    H1212S-1WR3 (MORNSUN)

    		20 шт
    H1215S-1WR3 (MORNSUN)


    H1224S-1WR3 (MORNSUN)


    		 в линейках 2 шт
    H2405S-1WR3 (MORNSUN)


    		 10 шт
    H2409S-1WR3 (MORNSUN)


    H2412S-1WR3 (MORNSUN)


    		 в линейках 22 шт
    H2415S-1WR3 (MORNSUN)


    H2424S-1WR3 (MORNSUN)


    		 в линейках 5 шт
