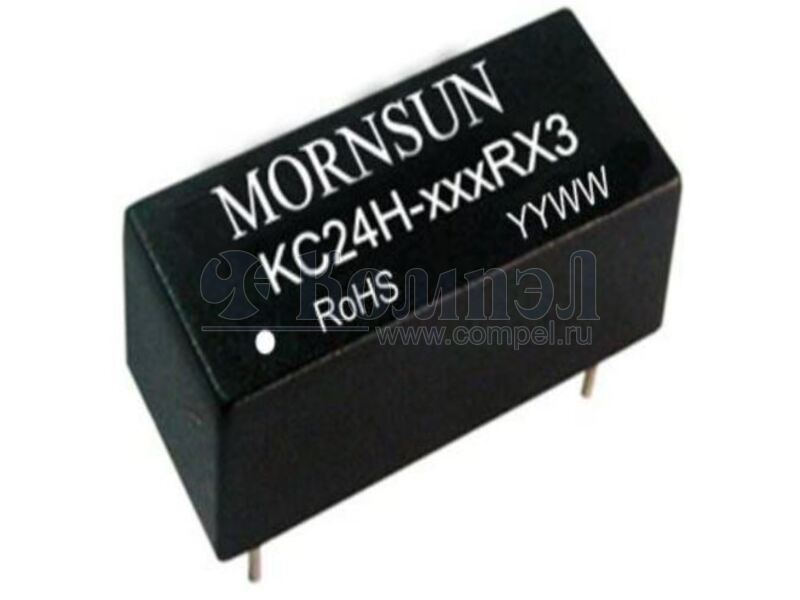

Серия LED-драйверов KC24H

Mornsun

Общие характеристики

 Раздел LED-драйверы
Тип преобразователя
Диапазон выходных напряжений
Напряжение сети/входное номинальное
Режим стабилизации
Исполнение конструктивное
Подстройка выходных параметров
Диапазон входных напряжений (DC)
Количество выходов
Эффективность
Функция защиты
Температура рабочая
Размер 31.7×20.3×12.65 мм
Применение

Документация на серию KC24H

KC24H Series CONSTANT CURRENT HIGH POWER LED DRIVER RoHS PRODUCT FEATURES l 1,000/1,200mA output current l Efficiency up to 97% l Ultra-wide range voltage (input and output) l Constant current mode, high power output l PWM dimming & Analogue dimming l Remote ON/OFF, Continuous short circuit protection l Meets EN55015 without external circuit l AC-DC, EMC recommended circuit APPLICATIONS PART NUMBER SYSTEM KC24H-1000X3 The KC24H Series is a step-down constant current source designed for driving high power LEDs. It features Foo tprint Det ails Output Cu rrent Package Style Input Volt age Pr oduct Series high efficiency, wide input voltage range, high operating temperature, PWM and analogue dimming, remote ON/OFF control. It is widely used in LED illumination areas such as decorative light, special control light, backlight, commercial light, streetlight, in-house light and car light, etc. SELECTION GUIDE Model Number Input Voltage(VDC) Nominal (Range) Output Voltage (VDC) (Range) 24(5.5-48) 3.3-36 Input Current Output (mA)(typ.) Current (mA) @Vin=24V,Vo=17V 1000 KC24H-1000(X1/X2/X3) Efficiency (%, typ.) @Max. Load PWM+Analogue 892 Approval 97 1000 1200 KC24H-1200(X1/X2/X3)* 740 Max. Capacitive Load(µF) Dimming control RoHS 97 PWM+ Analogue Note: 1. 2. 3. 4. 5. * Designing. The types without suffix, such as KC24H-1000 are eight-pin products without analogue dimming+PWM dimming function. The types with suffix X1,such as KC24H-1000X1 are nine-pin products with analogue dimming function only. The types with suffix X2,such as KC24H-1000X2 are nine-pin products with PWM dimming function only. The types with suffix X3,such as KC24H-1000X3 are ten-pin products with analogue dimming+PWM dimming function. INTPUT SPECIFICATIONS Item Test Conditions Input Voltage Range Utmost Input Voltage Min. Typ. Max. 5.5 24 48 5 -- 55 2 -- ≤10 seconds Minimum Input-Output voltage drop Input Voltage Range Unit VDC 4 π Filter Input Filter OUTPUT SPECIFICATIONS Item Output Power Min. Typ. Max. Io=1000mA Test Conditions 3.3 -- 36 Io=1200mA 3.96 -- 43.2 Unit W Output Current Accuracy -- ±3 ±5 Output Current Stability -- ±0.5 ±1 -- ±0.05 %/°C 70 200 mVp-p Temperature Drift Full load -- Ripple & Noise* 20MHz Bandwidth -- Over Temperature Protection % After Cooling, Automatic Recovery Continuous, Automatic Recovery Short Circuit Protection *Test ripple and noise by “parallel cable” method. See detailed operation instructions at Testing of Power Converter section, application notes. COMMON SPECIFICATIONS Item Test Conditions Switching Frequency MTBF MIL-HDBK-217F@25℃ Min. Typ. Max. Unit -- 370 -- KHz 650 -- -- K hours Case Material Weight The copyright and authority for the interpretation of the products are reserved by MORNSUN Plastic(UL94-V0) -- 13 -KC24H A/0-2012 g Page 1 of 5 PDF
Документация на KC24H-1000

KC24H-1000_EN.doc

Дата модификации: 14.04.2012

Размер: 338.8 Кб

5 стр.

    Товары серии KC24H

    Наименование i Упаковка Мощность выходная Ток выходной Димминг
    KC24H-1000 (MORNSUN)


    KC24H-1000X1 (MORNSUN)


    KC24H-1000X2 (MORNSUN)


    KC24H-1000X3 (MORNSUN)

    KC24H-1200 (MORNSUN)


    KC24H-1200X1 (MORNSUN)


    KC24H-1200X2 (MORNSUN)


    KC24H-1200X3 (MORNSUN)
