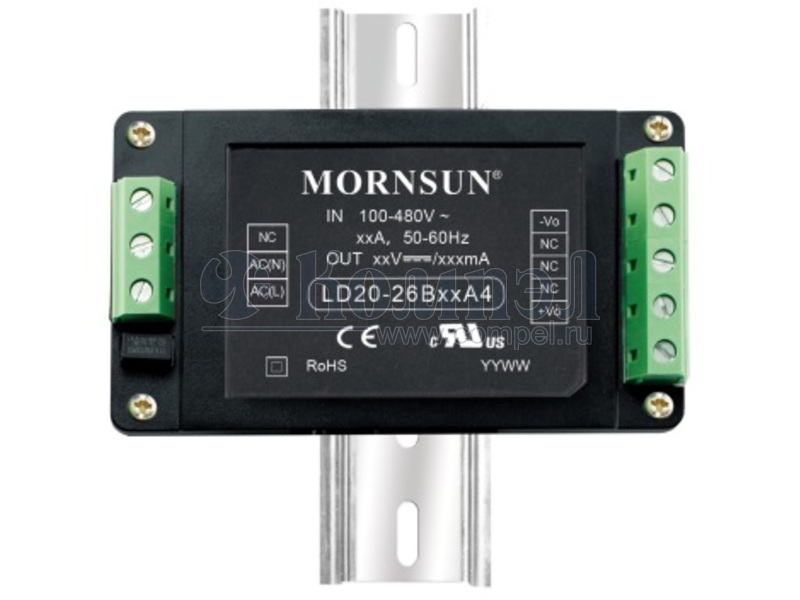

Серия AC-DC сетевых преобразователей LD20-26B12

Mornsun

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Напряжение изоляции вход-выход
Применение
КПД
Рабочая температура

Документация на серию LD20-26B12

AC/DC Converter LD20-26Bxx Series FEATURES 20W, AC/DC converter  Ultra-wide 90 - 528VAC and 100 - 745VDC input voltage range  Regulated output, low output ripple & noise  Operating ambient temperature range : -40℃ to +70℃  Output short circuit, over-current, over–voltage protection  I/O isolation test voltage up to 4000VAC  EFT /Surge: ±4KV Perf. Criteria B  ES1 output (EN62368)  EN62368 safety approval RoHS  UL62368 safety approval (12V/24V) LD20-26Bxx Series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature ultra-wide wide input range accepting either AC or DC voltage, low power consumption, high efficiency, high reliability and reinforced isolation. The converters meet EN62368 standards. The isolation voltage is 4000VAC between input and output. The converters meet IEC/EN61000-4, CISPR32/EN55032 standards and are widely used in electrical, instrumentation applications. Suitable for demanding high isolation voltage and strict electromagnetic compatibility of various terminal applications. Selection Guide Part No.* Output Power Nominal Output Voltage and Current(Vo/Io) Efficiency at 230VAC (%) Typ. Capacitive Load (µF)Max. LD20-26B03 11.88W 3.3V/3600mA 74 10000 LD20-26B05 18W Certification CE 5V/3600mA 78 10000 LD20-26B09 9V/2230mA 79 7000 CE/UL LD20-26B12 12V/1660mA 82 5000 CE LD20-26B15 15V/1330mA 83 3000 CE/UL LD20-26B24 24V/833mA 83 1000 20W Note: * Use suffix ”A2” for chassis and suffix ”A4” for DIN-Rail mounting. Input Specifications Item Input Voltage Range Operating Conditions Min. Typ. Max. Unit AC input 90 -- 528 VAC DC input 100 -- 745 VDC 47 -- 63 Hz 115VAC -- -- 0.8 230VAC -- -- 0.4 115VAC -- 35 -- 230VAC -- 60 -- Input Frequency Input Current Inrush Current Leakage Current 230VAC/50Hz A 0.25mA RMS typ. 3.15A/500VAC, slow-blow, required Recommended External Input Fuse Hot Plug Unavailable Output Specifications Item Min. Typ. Max. LD20-26B03 -- ±3 -- Others -- ±2 -- Line Regulation Full load -- ±0.5 -- Load Regulation 0% - 100% load -- ±1.0 -- Ripple & Noise* 20MHz bandwidth (peak-to-peak value) -- -- 150 mV Temperature Coefficient -- ±0.02 -- %/℃ Stand-by Power Consumption -- -- 0.75 W Output Voltage Accuracy Operating Conditions Unit % Short Circuit Protection Hiccup, continuous, self-recovery Over-current Protection 130 - 400%Io, self-recovery 2020.05.07-A/6 Page 1 of 6 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на LD20-26B24A4

LD20-26Bxx Keywords:

Дата модификации: 07.05.2020

Размер: 2.24 Мб

6 стр.

    Товары серии LD20-26B12

    Наименование i Упаковка Конструктив Размер
    LD20-26B12A2 (MORNSUN)


    		 96.1×54×38.5 мм
    LD20-26B12A4 (MORNSUN)


    		 96.1×54×43.1 мм
