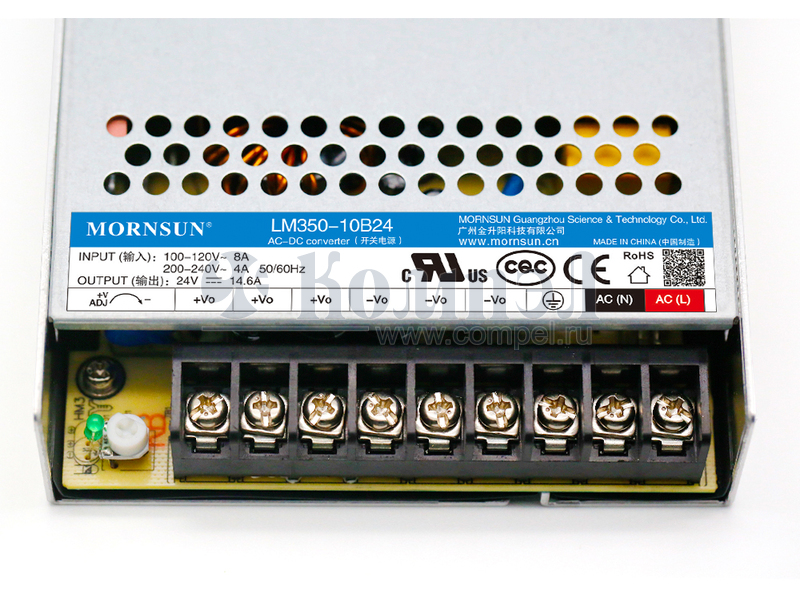

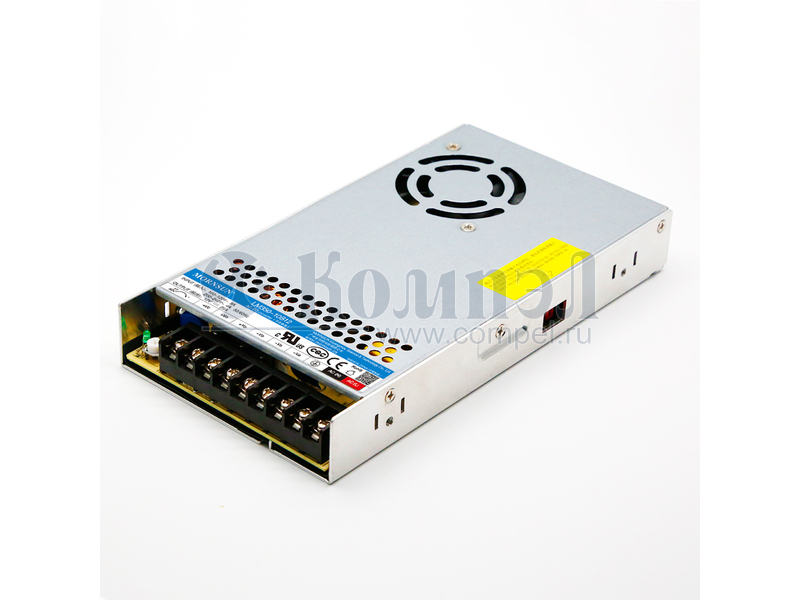

Серия AC-DC сетевых преобразователей LM350_10B

Mornsun

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Применение
Размер 215×115×30 мм
Рабочая температура

Документация на серию LM350_10B

AC/DC 350W Enclosed Switching Power Supply LM350-10Bxx, LM350-10Bxx-C, LM350-10Bxx-Q Series FEATURES  Selectable AC input range: 90 - 132VAC/180 - 264VAC  DC input range: 240 - 370VDC  Ultra low standby power consumption < 0.75W @230VAC  Operating ambient temperature range: - 30℃ to +70℃  LED indicator for power on  Output short circuit, over-current, over-voltage, over-temperature protection RoHS CB UL62368-1 IEC62368-1  Built-in DC fan Report GB4943.1 EN62368-1  Operating up to 5000m altitude BS EN 62368-1 LM350-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc. Selection Guide Certification UL/EN/IEC CQC/BIS/UKCA Output Power (W) Part No.* Nominal Output Voltage and Current (Vo/Io) Output Voltage Adjustable Range (V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF) 5V/60A 4.5-5.5 83.5 10000 LM350-10B05 300 LM350-10B12 348 12V/29A 10.2-13.8 85 4000 LM350-10B15 348 15V/23.2A 13.5-18 86 3300 LM350-10B24 350.4 24V/14.6A 21.6-28.8 87 1500 LM350-10B36 349.2 36V/9.7A 32.4-39.6 88 1500 LM350-10B48 350.4 48V/7.3A 43.2-52.8 88.5 470 Note:1. *Use suffix “C” for terminal with protective cover, suffix “Q” for conformal coating. Input Specifications Item Input Voltage Range Operating Conditions Typ. Max. Low voltage (switch in position of 115) 90 -- 132 High voltage (switch in position of 230) 180 -- 264 Switch in position of 230 240 -- 370 VDC 47 -- 63 Hz 115VAC -- 6.8 8 230VAC -- 3.4 4 115VAC -- 60 -- -- 60 -- -- -- 0.75 AC input DC input Input Voltage Frequency Input Current Inrush Current Leakage Current Unit Min. 230VAC Cold start 240VAC Hot Plug VAC A mA Unavailable Output Specifications Item Operating Conditions Output Voltage Accuracy Full load range Line Regulation Load Regulation Min. Max. 5V -- ±3 -- 12V -- ±1.5 -- 15V/24V/36V/48V -- ±1 -- Rated load 0% - 100% load Typ. -- ±0.5 -- 5V -- ±2 -- 12V -- ±1 -- 15V/24V/36V/48V -- ±0.5 -- 2021.12. 03-A/7 Unit % Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на LM350-10B48-Q

LM350-10Bxx_EN Keywords:

Дата модификации: 21.12.2021

Размер: 2.45 Мб

5 стр.

AC/DC 350W Enclosed Switching Power Supply LM350-10Bxx, LM350-10Bxx-C, LM350-10Bxx-Q Series FEATURES  Selectable AC input range: 90 - 132VAC/180 - 264VAC  DC input range: 240 - 373VDC  Ultra low standby power consumption < 0.75W @230VAC  Operating ambient temperature range: - 30℃ to +70℃  Compact size with 1U low profile  LED indicator for power on  Output short circuit, over-current, over-voltage, over-temperature protection  Safety according to IEC/EN/UL62368, EN60335, GB4943  Withstand 300VAC surge input for 5s (Switch in position of 230) RoHS  Built-in DC fan  Operating up to 5000m altitude LM350-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc. Selection Guide Certification UL/CE/CQC Nominal Output Voltage and Current (Vo/Io) Output Power(W) Part No.* Output Voltage Adjustable Range(V) Efficiency at 230VAC (%) Typ. Max. Capacitive Load (µF) LM350-10B05 300 5V/60A 4.5-5.5 83.5 10000 LM350-10B12 348 12V/29A 10.2-13.8 85 4000 LM350-10B15 348 15V/23.2A 13.5-18 86 3300 LM350-10B24 350.4 24V/14.6A 21.6-28.8 87 1500 LM350-10B36 349.2 36V/9.7A 32.4-39.6 88 1500 LM350-10B48 350.4 48V/7.3A 43.2-52.8 88.5 470 Note：*Use suffix “C” for terminal with protective cover and suffix “Q” for conformal coating. Input Specifications Item Input Voltage Range Operating Conditions Typ. Max. Low voltage (Switch in position of 115) 90 -- 132 High voltage (Switch in position of 230) 180 -- 264 Switch in position of 230 240 -- 373 VDC 47 -- 63 Hz 115VAC -- 6.8 8 230VAC -- 3.4 4 115VAC -- 60 -- -- 60 -- -- -- 0.75 AC input DC input Input Voltage Frequency Input Current Inrush Current Leakage Current Unit Min. 230VAC Cold start 240VAC Hot Plug VAC A mA Unavailable Output Specifications Item Operating Conditions Output Voltage Accuracy Full load range 5V Min. Typ. Max. Unit -- ±3 -- % 2020.05.26 -A/2 Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию LM350_10B

LM350-10Bxx_EN Keywords:

Дата модификации: 05.06.2020

Размер: 2.62 Мб

5 стр.

    Товары серии LM350_10B

    Наименование i Упаковка P вых Выход U1 I1 КПД
    LM350-10B05 (MORNSUN)

    LM350-10B12 (MORNSUN)

    		1 шт
    LM350-10B15 (MORNSUN)

    		1 шт
    LM350-10B24 (MORNSUN)

    		1 шт
    LM350-10B36 (MORNSUN)

    		1 шт
    LM350-10B48 (MORNSUN)

    		в коробках 7 шт
